ABB / General Electric TED124110WL Molded Case Circuit Breaker
- 110A
- 2 Pole
- Unit Mount
ABB / General Electric
TED124110WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124110WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

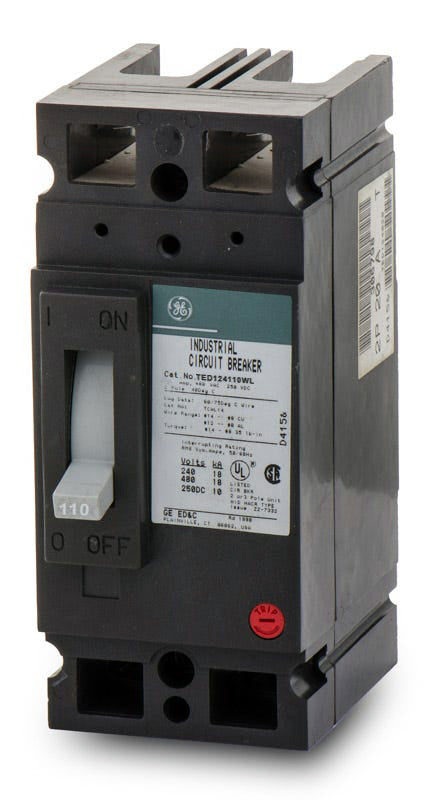

ABB / General Electric TED124110WL - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED124150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124030WL
30A 2 Pole Molded Case Circuit Breaker
Description
Designed to support heavy-duty electrical distribution, this 110A unit-mount breaker utilizes a fixed thermal-magnetic trip mechanism. It integrates smoothly into GE A-Series panelboards, Spectra series enclosures, and various motor control centers. Delivering an 18kA interrupting capacity at 480VAC, the device includes TCAL15 lugs and supports reverse-feed installations. This HACR-rated component ensures robust performance across commercial facilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124110WL |
| Series | TED |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Individual Enclosures, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the TED124110WL?
This breaker is designed for use in GE A-Series panelboards, GE Spectra panelboards, motor control centers, and individual enclosures.
What does the WL suffix mean in the TED124110WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs, making it ready for immediate wiring.
What wire sizes do the factory-installed lugs accept?
The included lugs accommodate copper or aluminum conductors ranging from 3 AWG to 3/0 AWG.
Is this a plug-in or bolt-on circuit breaker?
The TED124110WL is a unit-mount, bolt-on circuit breaker. It does not plug into a busbar and requires bolted connections for installation.
Can this breaker be used in DC applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific direct current applications.
Are the trip settings on this breaker adjustable?
No, the TED124110WL features a fixed thermal and fixed magnetic (LI) trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
