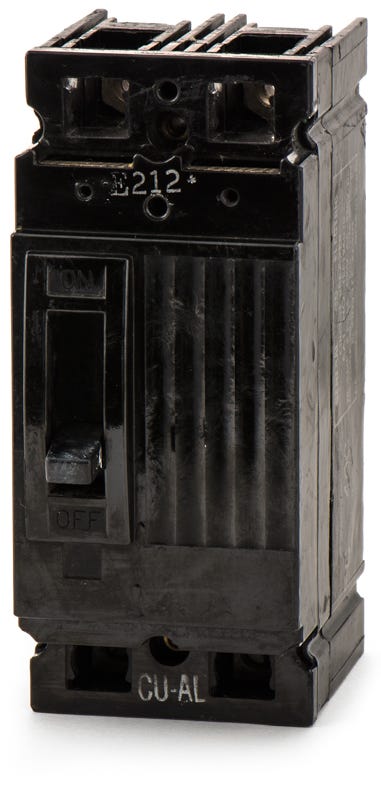

ABB / General Electric TEF126070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
TEF126070
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEF126070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEF126070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHED124070WL
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124070
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124070
70A 2 Pole Molded Case Circuit Breaker
Description
Operating at up to 600VAC, the TEF126070 delivers essential thermal-magnetic protection for industrial electrical systems. This 70-amp E-Frame breaker is constructed with a durable quick-make, quick-break mechanism. It is engineered to mount into GE A-Series panelboards, motor control centers, and switchboards. Facilities upgrading their infrastructure often replace this unit with the TED126070. The breaker provides 14 kAIC interrupting capacity at 600V and includes factory-installed lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEF126070-R |
| Series | TEF |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | 4-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
5 answersWhat type of equipment is the TEF126070 designed to be installed in?
As a bolt-on molded case circuit breaker, it is engineered for commercial and industrial power distribution. It mounts directly into GE A-Series panelboards, GE switchboards, and motor control centers.
Is there a direct replacement for the TEF126070?
Yes, the TED126070 is the direct replacement for this legacy E-Frame circuit breaker. Both models share the same physical dimensions and electrical characteristics.
Does the TEF126070 come with lugs, and what wire sizes do they accept?
Yes, this breaker includes factory-installed lugs that accept 4 AWG to 1/0 AWG wire for both copper and aluminum conductors.
Why is this breaker listed under both ABB and General Electric?
ABB acquired the GE Industrial Solutions low-voltage business. Legacy GE E-Frame breakers like the TEF126070 are now managed under the ABB brand, but the physical dimensions and electrical specifications remain identical.
What safety precautions should be taken before installing this bolt-on breaker?
Always de-energize the panelboard or switchboard before installation. Verify that the power is completely off using a properly rated voltage tester, and ensure the breaker voltage and interrupting ratings meet or exceed the requirements of the circuit.
