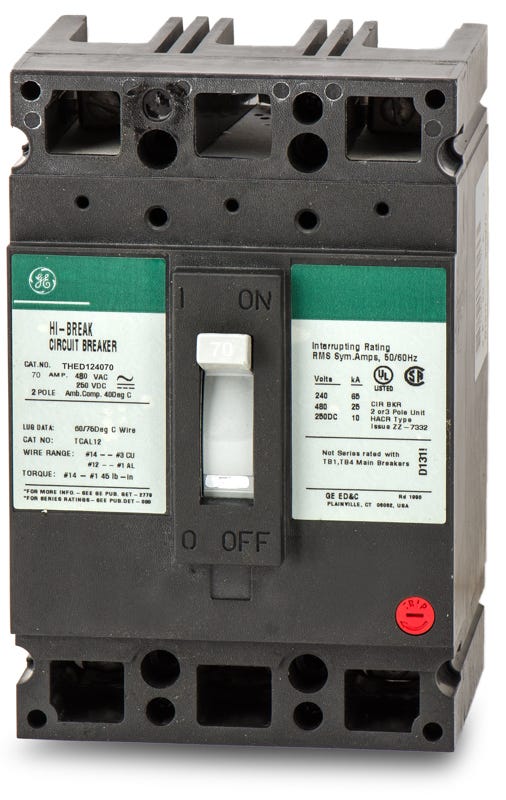

ABB / General Electric THED124070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
THED124070
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED124070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124070-R |
| Series | THED |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Quantity
ABB / General Electric THED124070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124070-R |
| Series | THED |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED124050
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124100
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124040
40A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame family, this 70A molded case breaker delivers 65kAIC fault protection at 240V for commercial facilities. The bolt-on configuration mounts securely into GE A-Series panelboards, Spectra Series panels, and compatible motor control centers. It features fixed thermal-magnetic trip elements for standard LI protection. Serving as a drop-in high-interrupting replacement for the TED124070, this HACR-rated unit includes TCAL12A lugs for versatile wire terminations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124070-R |
| Series | THED |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the THED124070 circuit breaker?
This E-150 line breaker is designed for use in GE A-Series panelboards, GE Spectra Series panelboards, and compatible Motor Control Centers. It utilizes a bolt-on connection to secure directly to the bus.
What is the difference between GE TED and THED circuit breakers?
Both belong to the GE E-150 frame family and share the same physical footprint. The THED series is the high-interrupting capacity version of the standard TED frame, offering higher fault current ratings for demanding commercial and industrial applications.
What wire sizes and materials are accepted by the lugs on the THED124070?
The factory-installed line and load lugs accept 6 AWG to 2/0 AWG copper wire, or 4 AWG to 2/0 AWG aluminum wire.
Can the THED124070 be used in DC voltage applications?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, with a maximum interrupting capacity of 10kAIC at that voltage.
Does this breaker feature an adjustable trip unit?
No, the THED124070 features a fixed thermal magnetic trip unit with non-interchangeable long-time and instantaneous (LI) trip functions.
Will ABB branded THED124070 breakers fit in my existing GE panel?
Yes. Following the ABB acquisition of GE Industrial Solutions, these E-frame breakers may carry either GE or ABB branding. The form, fit, and function remain identical, and they are fully interchangeable in compatible GE distribution equipment.
