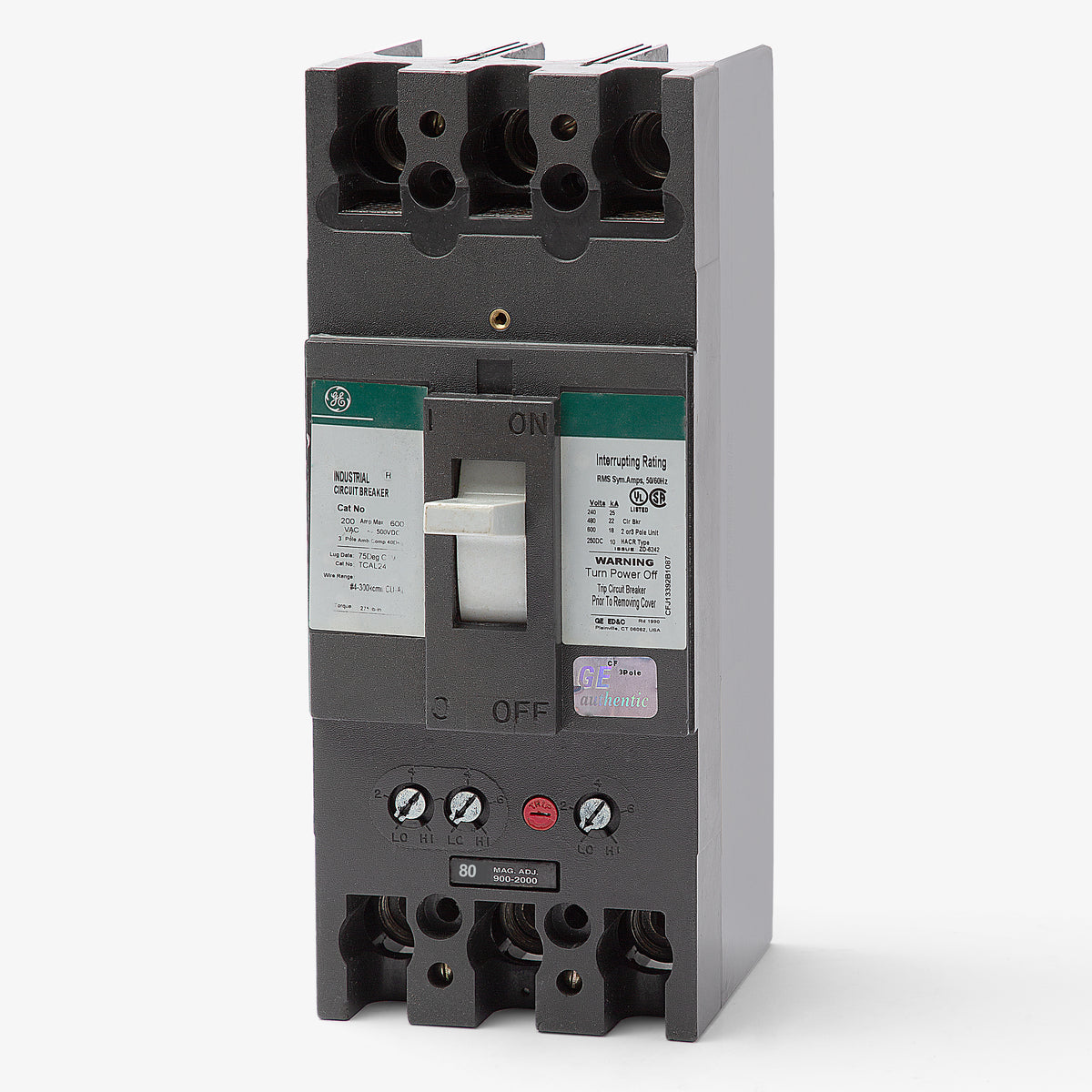

ABB / General Electric TFJ236080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFJ236070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236110
110A 3 Pole Molded Case Circuit Breaker
Description
Part of the F-Frame series, the GE TFJ236080 is a 3-pole, 80A molded case circuit breaker engineered for industrial power distribution. This bolt-on MCCB mounts into GE A-Series and Spectra panelboards, as well as compatible switchboards. For modern upgrades, it can be replaced by the ABB Tmax XT4 using a dedicated retrofit kit. Equipped with a thermal-magnetic trip unit, it offers fixed long-time and adjustable instantaneous settings. The breaker provides 25 kAIC at 240VAC and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TFJ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the TFJ236080 circuit breaker?
This bolt-on breaker is designed for installation in GE A-Series panelboards, GE Spectra panelboards, and compatible GE switchboards.
Can the TFJ236080 replace older GE TFK circuit breakers?
Yes, the TFJ236080 shares the same physical footprint as older TFK236080 legacy F-Frame breakers and can be used as a direct replacement, provided the interrupting capacity meets your system requirements.

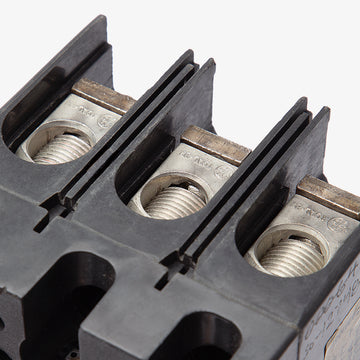

What wire sizes are accepted by the lugs on the TFJ236080?
The included lugs accept copper or aluminum wire ranging from 4 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation.
What frame size does the TFJ236080 belong to?
It is part of the GE F225 line of F-Frame molded case circuit breakers, which share a common physical footprint up to a 225-amp maximum frame rating.
Will this breaker arrive with ABB or GE branding?
Following ABB's acquisition of GE Industrial Solutions, this breaker may feature either ABB or GE branding on the label. The physical dimensions, fit, and specifications remain identical regardless of the logo.
Does this breaker include thermal and magnetic trip adjustments?
No, the TFJ236080 features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection. It is a non-interchangeable trip type.
Is the TFJ236080 suitable for reverse-feed applications?
Yes, this thermal-magnetic circuit breaker is suitable for reverse-fed applications, allowing it to be back-fed in compatible panel setups.
