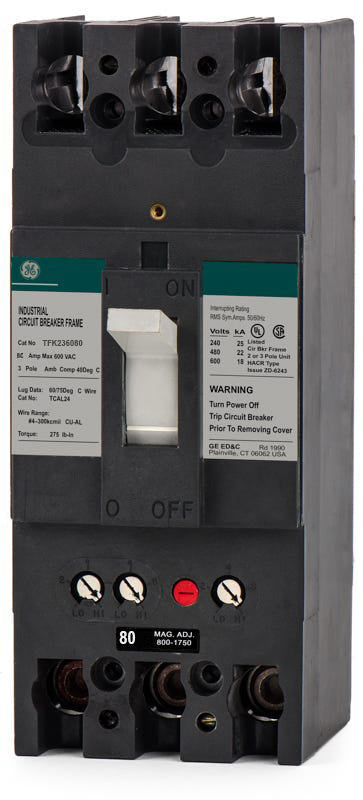

ABB / General Electric TFK236080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
TFK236080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFK236100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236175
175A 3 Pole Molded Case Circuit Breaker
Description
Providing essential long-time and instantaneous protection, this 80-amp F-Frame breaker handles demanding loads across industrial environments. The 3-pole device ensures reliable commercial power distribution. Designed for seamless integration, it bolts into GE A-Series panelboards, motor control centers, and compatible enclosures. It is replaced by the Tmax XT4, utilizing a specific retrofit kit. Delivering a 22 kAIC rating at 480VAC, it includes an adjustable magnetic trip function.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TFK |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL24) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat types of equipment are compatible with the TFK236080 breaker?
This F-frame breaker is designed for use in GE A-Series panelboards, switchboards, motor control centers, and standalone enclosures.
How does the trip unit function on the TFK236080?
It features a thermal magnetic trip unit with fixed thermal and adjustable magnetic settings. This allows the installer to adjust the instantaneous short-circuit trip point while the long-time overload protection remains fixed.
What wire sizes are accepted by the lugs on this breaker?
The standard lugs accommodate wire gauges from 4 AWG up to 300 kcmil. Ensure proper torque specifications are followed during installation to prevent overheating.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE breakers like the TFK series F-frame models are now manufactured and supported under the ABB brand portfolio.
What precautions should be taken before installing this bolt-on breaker?
Always verify that the panelboard or switchboard is completely de-energized. Since this is a bolt-on unit, secure all mounting hardware and phase connections to the busbar to ensure a safe, low-resistance contact.
