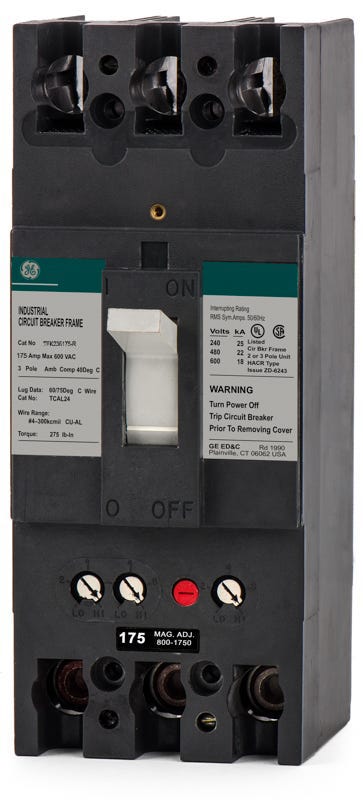

ABB / General Electric TFK236175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
TFK236175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFK236225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236070
70A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy industrial loads, the GE TFK236175 is a 3-pole, 175A molded case circuit breaker from the proven F-Frame family. The bolt-on configuration fastens into GE A-Series panelboards and motor control centers. It can be substituted by the Tmax XT4 series with the appropriate retrofit hardware. Featuring an interchangeable thermal magnetic trip unit, it offers adjustable magnetic settings for customizable long-time and instantaneous (LI) protection with a 22 kAIC capacity at 480V.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236175 |
| Series | TFK |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL24) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat panelboards are compatible with the TFK236175 circuit breaker?
This bolt-on breaker is designed for installation in GE A-Series panelboards, as well as compatible switchboards, motor control centers, and enclosures.
What frame size family does the TFK236175 belong to?
It is part of the legacy GE F-Frame family of molded case circuit breakers, which are commonly used for heavy industrial loads.
How does the adjustable magnetic trip function work on this breaker?
While the thermal long-time protection is fixed, the adjustable magnetic setting allows you to tune the instantaneous short-circuit response to coordinate with specific load requirements.
Is there a modern replacement for the legacy TFK236175?
Yes, this legacy F-Frame breaker can be substituted by the newer ABB Tmax XT4 series, provided you use the appropriate retrofit hardware for your panel.
Does the TFK236175 feature an interchangeable trip unit?
Yes, this breaker features an interchangeable thermal magnetic trip unit, allowing for flexibility if panel protection requirements change.
