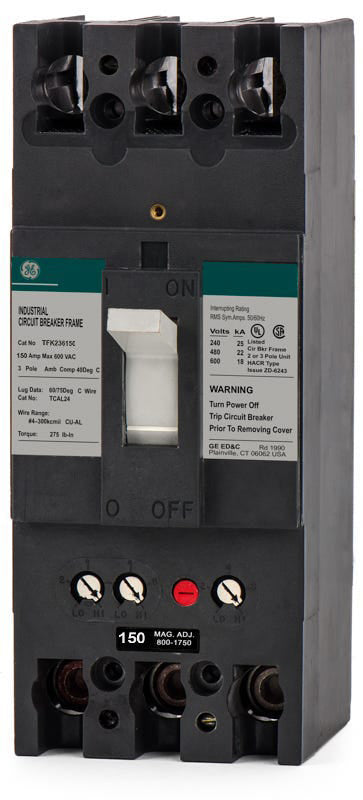

ABB / General Electric TFK236150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
ABB / General Electric
TFK236150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFK236100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236070
70A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the GE TFK236150 is a 3-pole, 150A molded case circuit breaker. It utilizes thermal-magnetic technology to protect commercial systems up to 600VAC. This F-Frame breaker features a bolt-on mounting style, making it compatible with GE A-Series panelboards and Spectra switchboards. It serves as an equivalent to TFJ236150 and THFK236150 models.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236150-R |
| Series | TFK |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat equipment is the GE TFK236150 circuit breaker compatible with?
It is designed for direct bolt-on installation in legacy GE A-Series panelboards, Spectra Series switchboards, and motor control centers.
What wire sizes are accepted by the standard lugs on the TFK236150?
The standard lugs accommodate wire gauges ranging from 4 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation to maintain a secure connection.
How does the adjustable magnetic trip work on the TFK236150?
This breaker uses a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection. The magnetic dial allows electricians to fine-tune the instantaneous trip threshold based on the specific load requirements.
Can the trip unit be replaced on the TFK236150?
Yes, the TFK series features an interchangeable trip design. The 150A trip unit can be removed and replaced without needing to swap out the entire breaker frame.
Is the GE TFK236150 an active or legacy circuit breaker?
The TFK236150 is a legacy F-frame circuit breaker. It is primarily used to maintain or expand existing GE electrical infrastructure rather than for new installations.
