ABB / General Electric THLC136090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC136090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC136090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

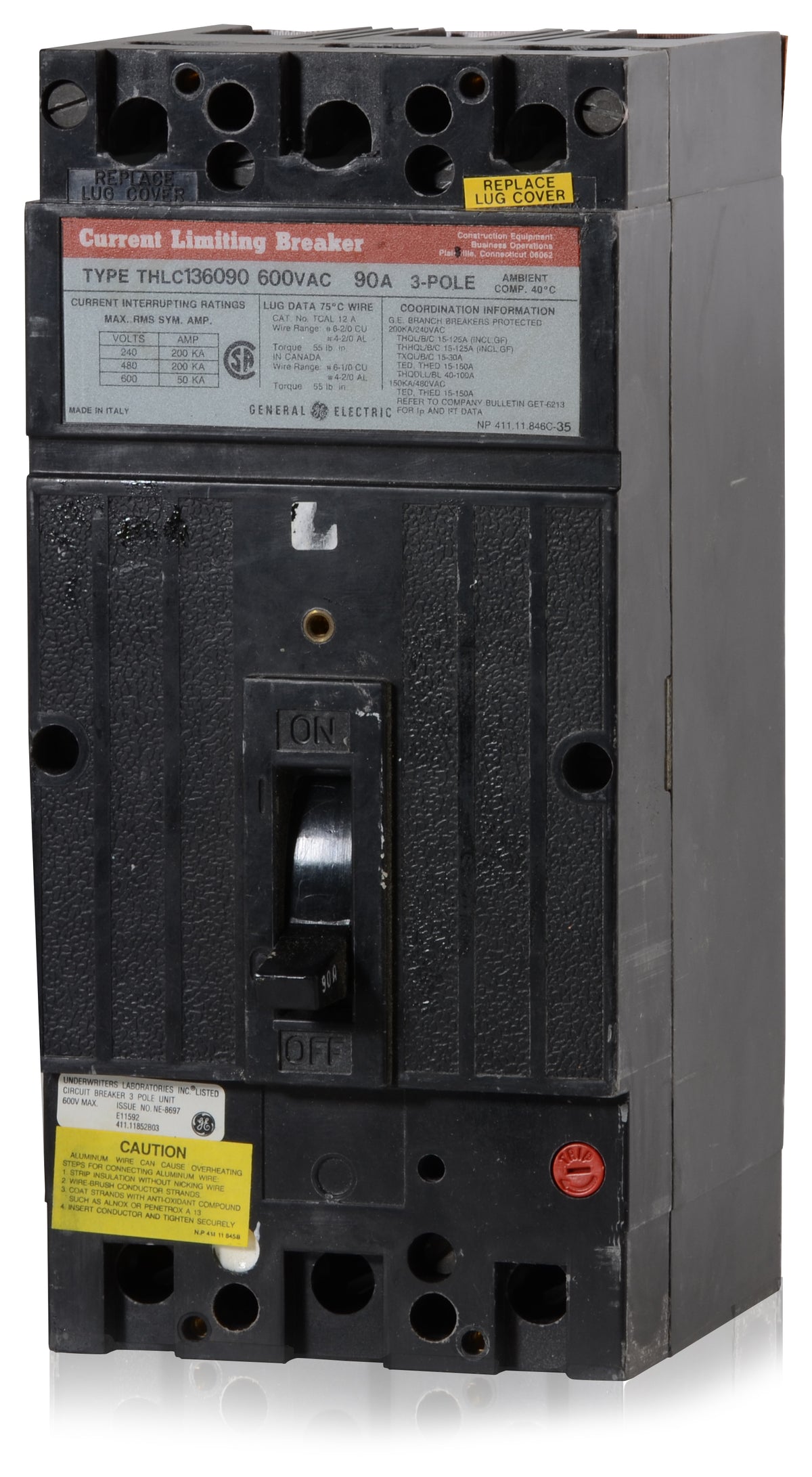

ABB / General Electric THLC136090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHLC134100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136080
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial power systems, this 90A current-limiting MCCB provides robust overcurrent and short-circuit protection. The bolt-on configuration is engineered for compatibility with GE switchboards and motor control centers, ensuring a secure connection in high-vibration environments. With a massive 200kAIC rating at 480V, the thermal-magnetic trip unit quickly isolates faults, minimizing let-through current to safeguard sensitive downstream commercial equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC136090 |
| Series | THLC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
6 answersWhat equipment is the THLC136090 designed to be installed in?
This bolt-on molded case circuit breaker is engineered specifically for General Electric switchboards and motor control centers. It is not intended for standard residential load centers.
How does the current limiting design of the THLC series operate during a fault?
The THLC136090 forces the arc into U-shaped arc plates to rapidly develop a high arc voltage. This quenches the short circuit quickly, minimizing let-through current and protecting downstream components from thermal and mechanical stress.
Is the 200kA interrupting rating applicable across all voltage levels?
No, the interrupting capacity depends on the system voltage. It is rated for 200kA at both 240VAC and 480VAC, but the rating drops to 50kA when applied to a 600VAC system.
Can the trip settings on the THLC136090 be adjusted in the field?
No, this breaker features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous (LI) protection parameters are factory set and cannot be modified by the installer.
Does the THLC136090 provide equipment ground fault protection?
No, this thermal magnetic breaker only provides long-time and instantaneous (LI) trip functions for standard overcurrent and short-circuit events. It does not include ground fault sensing.
Will this breaker arrive branded as GE or ABB?
Because ABB acquired GE Industrial Solutions, the THLC136090 may carry either the General Electric or ABB brand name. The physical dimensions, mounting, and performance specifications remain identical regardless of the logo.
