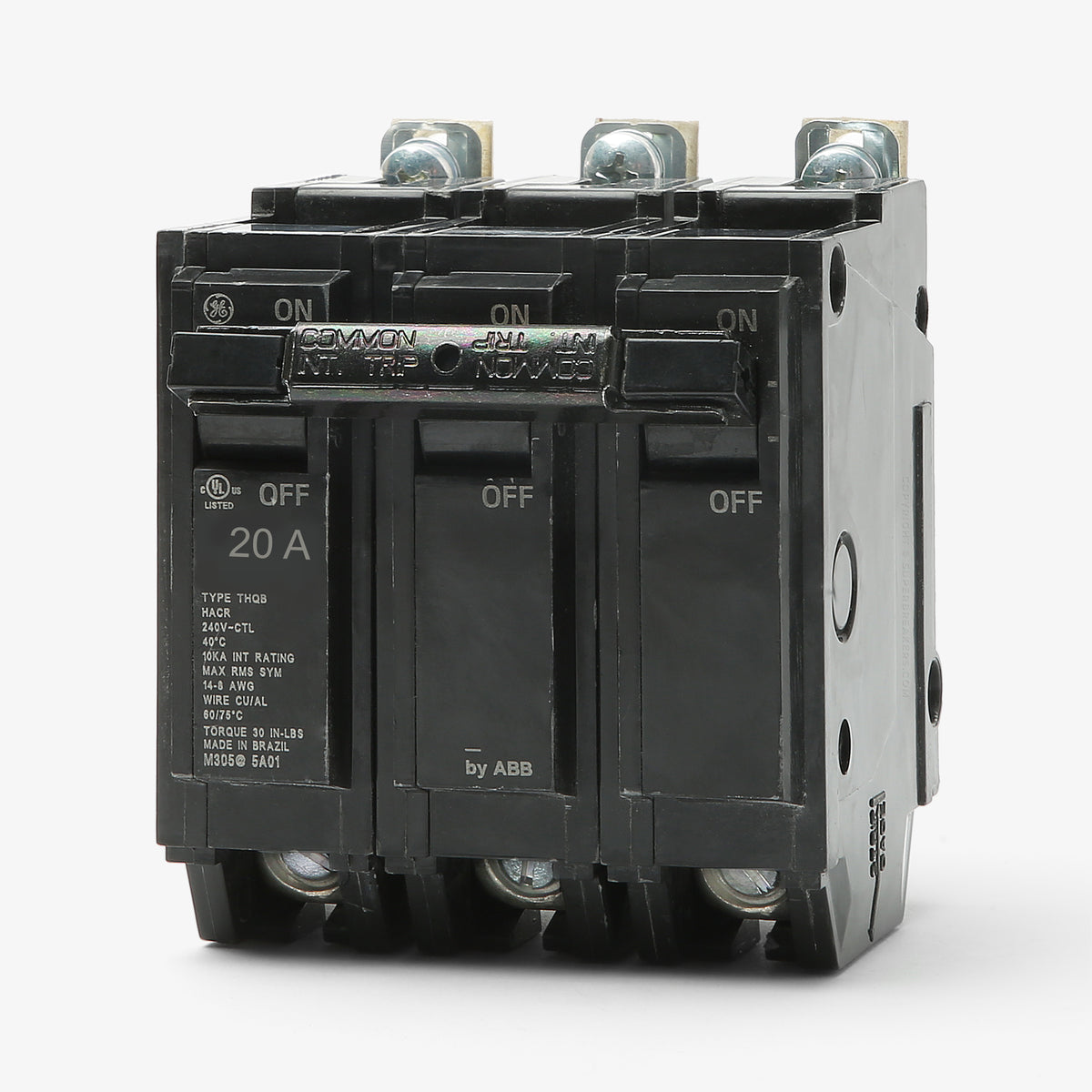

ABB / General Electric THQB32020 Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32020
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32020 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32020 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32020 |
| Series | THQB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32020 - 20A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32020-R |
| Series | THQB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32025
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32015
15A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32030
30A 3 Pole Miniature Circuit Breaker
Description
Part of the GE Q-Line series, the THQB32020 provides robust overcurrent protection. This 3-pole, 20-amp miniature breaker features a quick-make, quick-break mechanism for reliable operation. It mounts into GE A-Series panelboards and AQ lighting panels. The bolt-on design ensures a secure busbar connection, while the box lugs accept 14-8 AWG copper or 12-8 AWG aluminum wire. Rated for 10 kAIC at 240VAC, this unit includes an internal common trip and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32020 |
| Series | THQB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards accept the THQB32020 breaker?
This Q-Line bolt-on breaker is designed specifically for General Electric and ABB A-Series lighting panelboards, including AQ and AL types, as well as Pro-Stock panelboards. It cannot be used in residential PowerMark Gold load centers that require plug-in THQL breakers.
What are the load terminal torque specifications for the THQB32020?
The factory box lugs require 35 in-lb of torque when terminating 14 AWG through 10 AWG conductors. If you are using 8 AWG wire, the tightening torque increases to 40 in-lb.
Can I upgrade to a higher interrupting rating using the same frame size?
Yes. If your system requires a higher fault current rating than 10kAIC, you can install the THHQB32020 for 22kAIC or the TXQB32020 for 65kAIC. Both alternative breakers share the exact same Q-Line bolt-on dimensions and mount identically to the standard THQB32020.
Will my THQB32020 breaker arrive with General Electric or ABB branding?
Because ABB acquired GE Industrial Solutions, new production runs of Q-Line breakers carry the ABB brand. You may receive units labeled as either GE or ABB. Both are the identical OEM product, completely interchangeable, and UL listed for the exact same equipment.
Is the THQB32020 rated for HVAC applications?
Yes, this circuit breaker carries an official HACR rating. It is fully UL listed for use with heating, air conditioning, and refrigeration equipment that requires multi-motor or combination load protection.
Can the THQB32020 be reverse fed?
Yes. This breaker is suitable for reverse feed applications. The thermal magnetic trip mechanism is not directional, meaning you can safely terminate line power to the load side lugs when used as a back-fed main or in generator setups.
