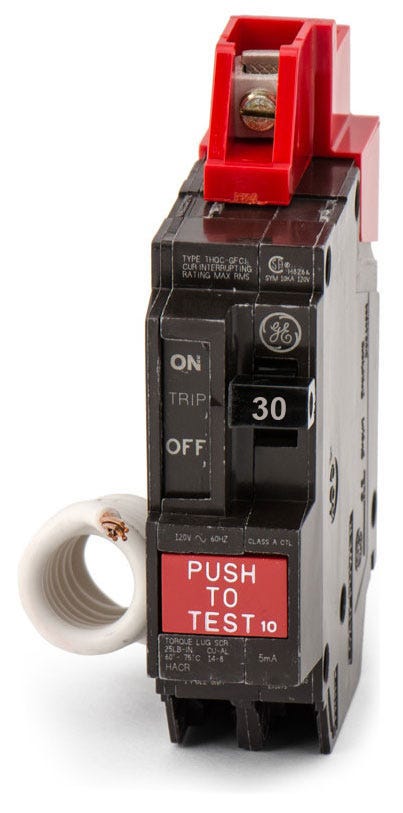

ABB / General Electric THQC1130GFT GFCI Molded Case Circuit Breaker
- 30A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1130GFT
GFCI Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1130GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1130GFT - 30A GFCI Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC1120GFT
20A GFCI Molded Case Circuit Breaker
ABB / General ElectricTHQC1120GF
20A GFCI Molded Case Circuit Breaker
Description
Part of GE's Q-Line series, the THQC1130GFT brings advanced self-testing technology to 30A ground fault protection. This 1-pole, 120VAC breaker automatically verifies its internal circuitry, ensuring continuous Class A 5mA safety for personnel in damp environments. It mounts securely onto 35mm DIN rails and fits standard OEM panelboards. As an updated model, it replaces the legacy THQC1130GF, offering the same 10kAIC interrupting capacity and lug connections with enhanced diagnostic features.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130GFT |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Self-Test |
Product FAQs
6 answersWhat is the difference between the THQC1130GFT and the legacy THQC1130GF?
The THQC1130GFT is the updated replacement for the THQC1130GF. It offers the same 30A capacity and DIN rail mounting, but introduces an automated self-test function that continuously verifies the integrity of the ground fault circuitry.
What class of ground fault protection does the THQC1130GFT offer?
This breaker provides Class A GFCI protection, meaning it is calibrated to trip at a 5mA ground fault threshold to protect personnel from electrical shock in damp or wet environments.
What type of mounting does the THQC1130GFT require?
This Q-Line breaker is designed for 35mm DIN rail mounting. It utilizes lug terminals for cable-in and cable-out connections, making it ideal for OEM panels and industrial enclosures rather than standard residential plug-on load centers.
Does the THQC1130GFT require a neutral connection?
Yes, this GFCI breaker is equipped with a pigtail neutral wire. The pigtail must be connected to the neutral bus of the panel or enclosure to power the internal ground fault detection and self-testing electronics.
What wire sizes are compatible with the terminals on this breaker?
The integrated lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
How does the self-testing feature work on this GFCI breaker?
The breaker automatically runs periodic internal diagnostics to confirm the ground fault protection is functioning. If the self-test detects a failure in the circuitry, the breaker will trip to ensure the circuit does not remain energized without GFCI protection.
