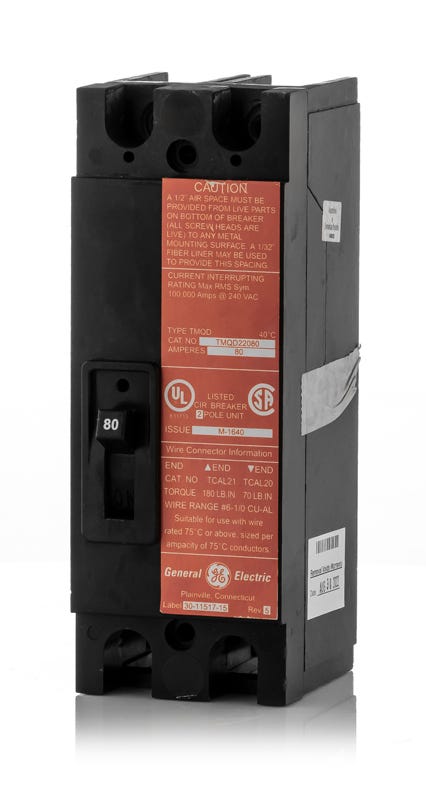

ABB / General Electric TMQD22080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQD22080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD22080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD22080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD22100
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22060
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22125
125A 2 Pole Molded Case Circuit Breaker
Description
Designed with reverse feed capabilities, this 80A breaker offers versatile installation options for complex commercial systems. The thermal-magnetic trip mechanism provides reliable protection for critical circuits. This unit fastens securely into GE Meter Mod III stacks and A-Series panelboards. Note that this specific component is officially replaced by the TMQV22080 frame. Rated for 100kAIC at 120/240VAC, it safely isolates extreme faults and accommodates 6 AWG to 1/0 AWG wire.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD22080 |
| Series | TMQD |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards and meter stacks are compatible with the TMQD22080?
The TMQD22080 is designed for use with GE A-Series Panelboards and GE Meter Mod III Meter Stacks. It features a bolt-on connection for secure installation.
What is the difference between the GE TQD22080, THQD22080, and TMQD22080?
The primary difference is the short-circuit interrupting rating. The TQD22080 is rated at 10kAIC, the THQD22080 is rated at 22kAIC, and the TMQD22080 offers an extra-high interrupting capacity of 100kAIC at 240V.
What wire sizes are accepted by the load side lugs on this breaker?
The load side lugs on the TMQD22080 accept 6 AWG to 1/0 AWG copper or aluminum conductors.
Does the TMQD22080 include line side lugs?
No, this is a bolt-on circuit breaker. The line side bolts directly to the panelboard or meter stack bus, while the load side features standard mechanical lugs.
Are the trip settings adjustable on the TMQD22080?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions.
Can I use the TMQD22080 to replace an older 80A TQD or THQD breaker?
Yes, the TMQD22080 shares the same physical dimensions and bolt-on mounting as the TQD and THQD series. It can be used as a direct replacement or upgrade, as its 100kAIC rating safely exceeds the requirements of the 10kAIC and 22kAIC versions.
