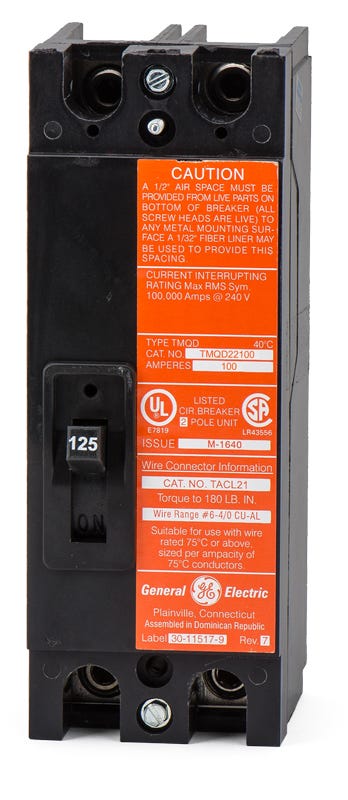

ABB / General Electric TMQD22100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQD22100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD22070
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22060
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22150
150A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the GE TMQD22100 provides reliable thermal-magnetic protection. This 100A, 2-pole MCCB is rated for 120/240VAC systems. It installs securely via a bolt-on connection into GE Meter Mod meter stacks and standard GE panelboards. This unit serves as a direct replacement for older systems, though it is succeeded by the TMQV22100. Boasting an extra-high interrupting capacity of 100kAIC, this breaker safely handles severe fault currents and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD22100 |
| Series | TMQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod Meter Stacks, GE Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Tenant Main |
Product FAQs
5 answersWhat equipment is the TMQD22100 breaker designed to fit?
This bolt-on breaker is primarily designed for use in GE Meter Mod meter stacks and compatible GE panelboards. It is frequently utilized as a tenant main breaker in multi-metering applications.
What type of wire can be used with the load side lugs on this breaker?
The factory-installed load lugs accept either copper or aluminum conductors ranging from 6 AWG to 1/0 AWG. Ensure proper torque specifications are followed during installation to maintain a secure connection.
How does the 100kA interrupting rating affect the application of this breaker?
The 100kAIC rating at 240V allows this breaker to be installed in electrical systems with very high available fault currents. This level of protection is often required in commercial facilities or large multi-family residential service entrances.
Will this breaker arrive branded as GE or ABB?
Because ABB acquired GE Industrial Solutions, this product may feature either GE or ABB branding. Regardless of the logo on the label, the TMQD22100 catalog number, frame size, and technical specifications remain exactly the same.
How is the TMQD22100 secured inside the panel?
This is a bolt-on circuit breaker, meaning it fastens directly to the busbars of the panelboard or meter stack using screws or bolts. This provides a highly secure, low-resistance connection suitable for high-amperage commercial applications.
