ABB / General Electric TMQD22200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQD22200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD22200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

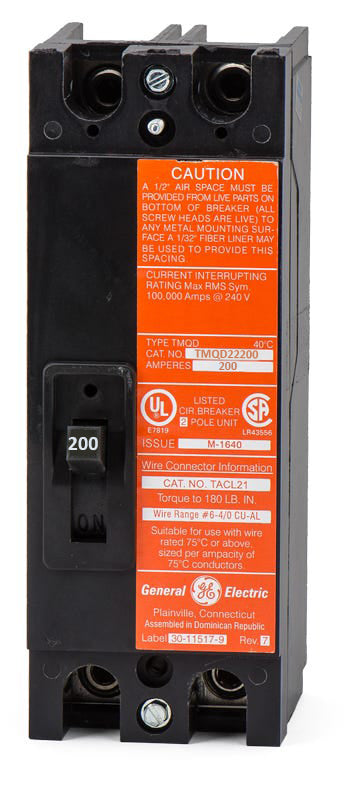

ABB / General Electric TMQD22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD22150
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22125
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22100
100A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution, this 200A tenant main circuit breaker provides precise long-time and instantaneous trip functions. It handles demanding loads in multi-family and commercial facilities. The bolt-on MCCB integrates seamlessly with GE Meter Mod stacks and standard GE panelboards. It is officially replaced by the TMQV22200 series for newer upgrades. Delivering 100kAIC at 120/240VAC, it includes a non-interchangeable trip mechanism and carries a HACR rating for HVAC systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD22200 |
| Series | TMQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod Meter Stacks, GE Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lug Kit (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Tenant Main |
Product FAQs
5 answersWhat equipment is the TMQD22200 compatible with?
The TMQD22200 is a bolt-on circuit breaker designed for use in GE Meter Mod III meter stacks and GE A-Series panelboards. It is commonly used as a tenant main breaker for 200A sockets.
What is the difference between the GE TQD, THQD, and TMQD circuit breakers?
The primary difference is their interrupting capacity. The TQD series is rated at 10kAIC, the THQD series is rated at 22kAIC, and the TMQD series provides the highest rating at 100kAIC. All three share the same physical footprint and mount into the same panels.
Has the TMQD22200 been replaced by a newer model?
Yes, the TMQD frame has been officially replaced by the newer TMQV series. The direct replacement for the TMQD22200 is the TMQV22200.
Can the TMQD22200 be reverse fed?
Yes, the TMQD22200 is suitable for reverse feed applications, allowing it to be used flexibly in commercial distribution systems.
Is the TMQD22200 HACR rated?
Yes, this breaker is HACR certified, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
