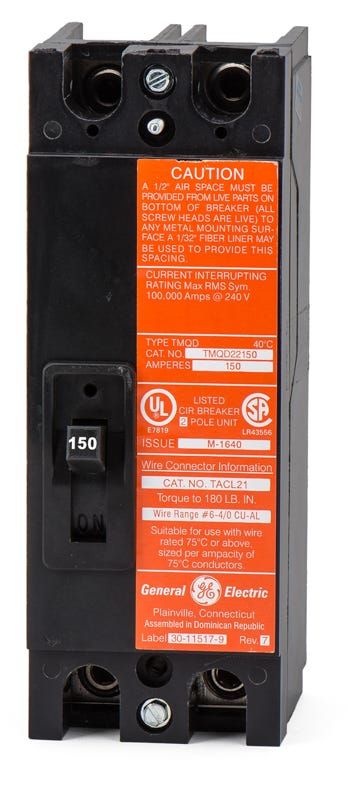

ABB / General Electric TMQD22150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
ABB / General Electric
TMQD22150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD22150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD22150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD22125
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22100
100A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD22070
70A 2 Pole Molded Case Circuit Breaker
Description
Delivering robust overcurrent protection, the GE TMQD22150 is a 150A, 2-pole molded case circuit breaker. It utilizes fixed thermal-magnetic trip technology to safeguard 120/240VAC circuits. The unit is engineered to bolt into GE Meter Mod III meter stacks and A-Series panelboards. While it remains crucial for legacy maintenance, GE designates the TMQV22150 as its replacement.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD22150 |
| Series | TMQD |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lug Kit (TCAL25) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards and meter stacks are compatible with the TMQD22150?
This bolt-on breaker is specifically designed for installation in GE A-Series panelboards and GE Meter Mod III meter stacks.
Can I install this breaker in a standard GE Powermark Gold load center?
No. The TMQD22150 is a bolt-on molded case circuit breaker. It will not fit in residential plug-on load centers like the Powermark Gold series, which typically require THQL or THHQL plug-in breakers.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, the TMQD22150 may feature either ABB or GE branding. Regardless of the label, the physical dimensions, mounting hardware, and UL listings are identical.
What wire sizes and materials are supported by the factory lugs?
The included lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 1 AWG to 300 kcmil. Always verify the required torque specifications printed on the breaker label before terminating the wires.
Are the trip settings on the TMQD22150 adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory set and cannot be adjusted in the field.
What does the 100kAIC rating indicate for this breaker?
The 100kAIC rating means the breaker can safely interrupt up to 100,000 amps of fault current at 240VAC without sustaining catastrophic damage. This high interrupting capacity is typically required in commercial or industrial facilities with high available fault currents.
