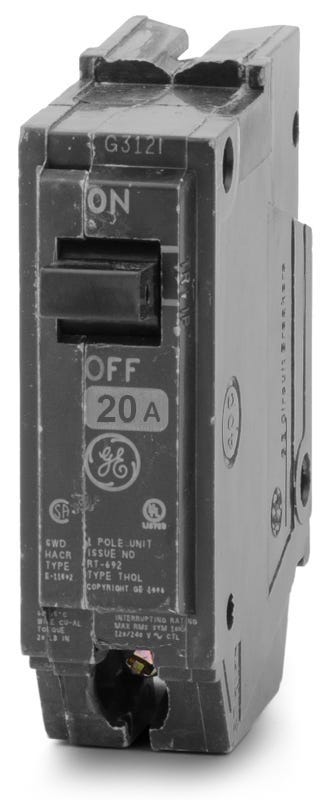

ABB / General Electric THQL1120WL Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1120WL
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1120WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1120WL - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL1125
25A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1115
15A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1115ST1
15A 1 Pole Miniature Circuit Breaker
Description
Designed for residential and commercial use, the GE THQL1120WL is a 20A, 1-pole miniature circuit breaker. It features load side lugs, serving as a versatile substitute for the standard THQL1120. This plug-on breaker installs into GE PowerMark Gold load centers, AQ lighting panels, and GE A-Series panelboards. It accommodates 14-8 AWG copper or 12-8 AWG aluminum conductors. Delivering a 10 kAIC interrupt rating, it is fully SWD and HACR rated for switching duty and HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120WL |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, SWD, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersWhich electrical panels are compatible with the THQL1120WL breaker?
This 1-pole breaker is compatible with GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, and ABB ReliaHome Load Centers.
What wire gauges are approved for the box lugs on this 20A breaker?
The terminals accommodate 14 to 8 AWG copper (Cu) conductors or 12 to 8 AWG aluminum (Al) conductors.
Can I use the THQL1120WL to replace a standard THQL1120?
Yes, the THQL1120WL is a direct substitute for the standard THQL1120 miniature circuit breaker in compatible GE and ABB plug-on panels.
What trip technology does the THQL1120WL utilize for overcurrent protection?
It uses fixed thermal-magnetic trip technology, providing both long-time protection against overloads and instantaneous protection against short circuits.
Does this breaker require bolted hardware for installation?
No, the THQL1120WL features a plug-on mounting style, allowing it to snap directly onto the busbar of compatible Q-Line load centers and panelboards.
Is the THQL1120WL rated for HVAC and switching applications?
Yes, this breaker is fully HACR rated for heating, air conditioning, and refrigeration equipment, as well as SWD rated for switching duty applications.
