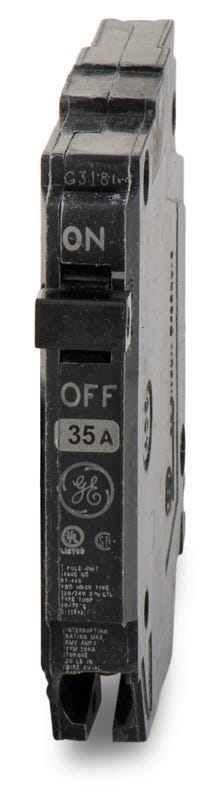

ABB / General Electric THQP135 Miniature Circuit Breaker
- 35A
- 1 Pole
- Plug-On
ABB / General Electric
THQP135
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP135
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP135 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
45A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
Description
Part of the GE Q-Line family, the THQP135 is a 35A, 1-pole miniature circuit breaker designed to optimize panel space. By utilizing a half-inch width per pole, it allows users to add circuits without requiring a larger enclosure. The breaker mounts into GE PowerMark Gold and PowerMark Plus load centers. It utilizes a standard plug-on connection and accommodates 8-4 AWG wire, making it suitable for a variety of residential upgrades.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP135 |
| Series | THQP |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Half-Size (1/2 inch width per pole) |
Product FAQs
4 answersWhat panels are compatible with the THQP135 circuit breaker?
This breaker is designed for use in GE PowerMark Gold and GE PowerMark Plus load centers that are configured to accept half-inch THQP breakers. Always verify your panel label to ensure it accepts half-size breakers in the desired slot.
What is the difference between GE THQP and THQL circuit breakers?
The primary difference is their physical width. THQP breakers are half-inch slimline breakers, allowing two circuits to fit in a single standard space. THQL breakers are standard full-size breakers measuring one inch wide per pole. They are not interchangeable unless your panel busbar is specifically designed to accept half-size breakers.
Is the THQP135 breaker HACR rated?
Yes, this 35-amp breaker is UL listed as HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment motor loads.
How much panel space does the THQP135 require?
As a 1-pole THQP series breaker, it requires only one half-inch space in a compatible GE load center. This compact design allows for greater circuit density compared to standard one-inch breakers.
