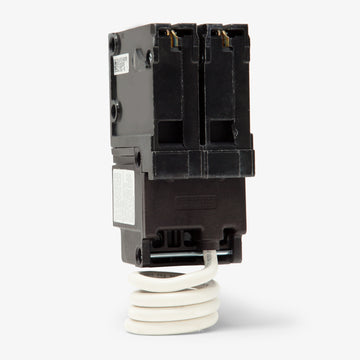

Siemens QE230 GFEP Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Siemens
QE230
GFEP Miniature Circuit Breaker
Brand
Siemens
SKU
QE230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QE230 - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
20A GFEP Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Siemens QE230 provides 30mA ground fault equipment protection (GFEP). This 2-pole, 30A plug-on breaker is specifically engineered to protect machinery from damaging line-to-ground fault currents, distinguishing it from standard 5mA personnel GFCI devices. It installs into Siemens load centers and P1 panelboards, serving as an exact replacement for the Q230EG. Features a 10kAIC rating at 120/240VAC and thermal-magnetic trip technology.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QE230 |
| Series | QE |
| Amperage | 30A |
| Poles | 2 |

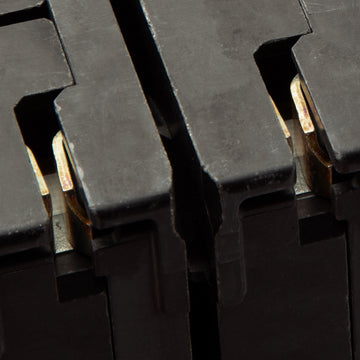

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

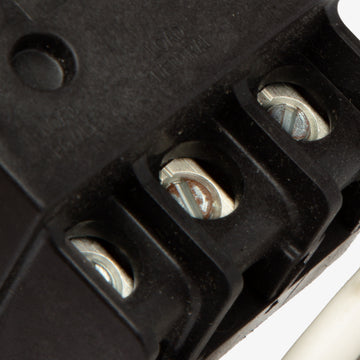

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, Siemens P1 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 10 AWG (Cu), 8 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | 30mA Trip Sensitivity, Equipment Protection, HACR Rated, Common Trip |
Product FAQs
4 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
The QE230 provides Ground Fault Equipment Protection with a 30mA trip threshold, designed to protect equipment like heat trace cables or snow melting mats from electrical damage. Standard Class A GFCI breakers trip at 5mA and are intended for personnel protection in areas like bathrooms or kitchens.
How is the ground fault reference wired on the QE230?
This model uses a pigtail neutral design. The attached coiled white wire must be terminated directly at the panel neutral bus bar to provide the return reference required for the ground fault sensing circuitry to operate correctly.
Will this breaker fit in standard 1-inch panel spaces?
Yes, this breaker shares the standard QP family form factor and occupies two 1-inch pole spaces. It utilizes a plug-on mounting design compatible with Siemens residential load centers and commercial P1 series panelboards.
Can the QE230 directly replace older ITE brand equipment protection breakers?
Yes, Siemens acquired ITE and continues to manufacture these breakers using the same physical footprint. The QE230 can be used as a direct replacement for legacy ITE breakers of the exact same catalog number in EQ-series plug-on panels.
