Siemens QE240 GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Siemens
QE240
GFEP Miniature Circuit Breaker
Brand
Siemens
SKU
QE240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

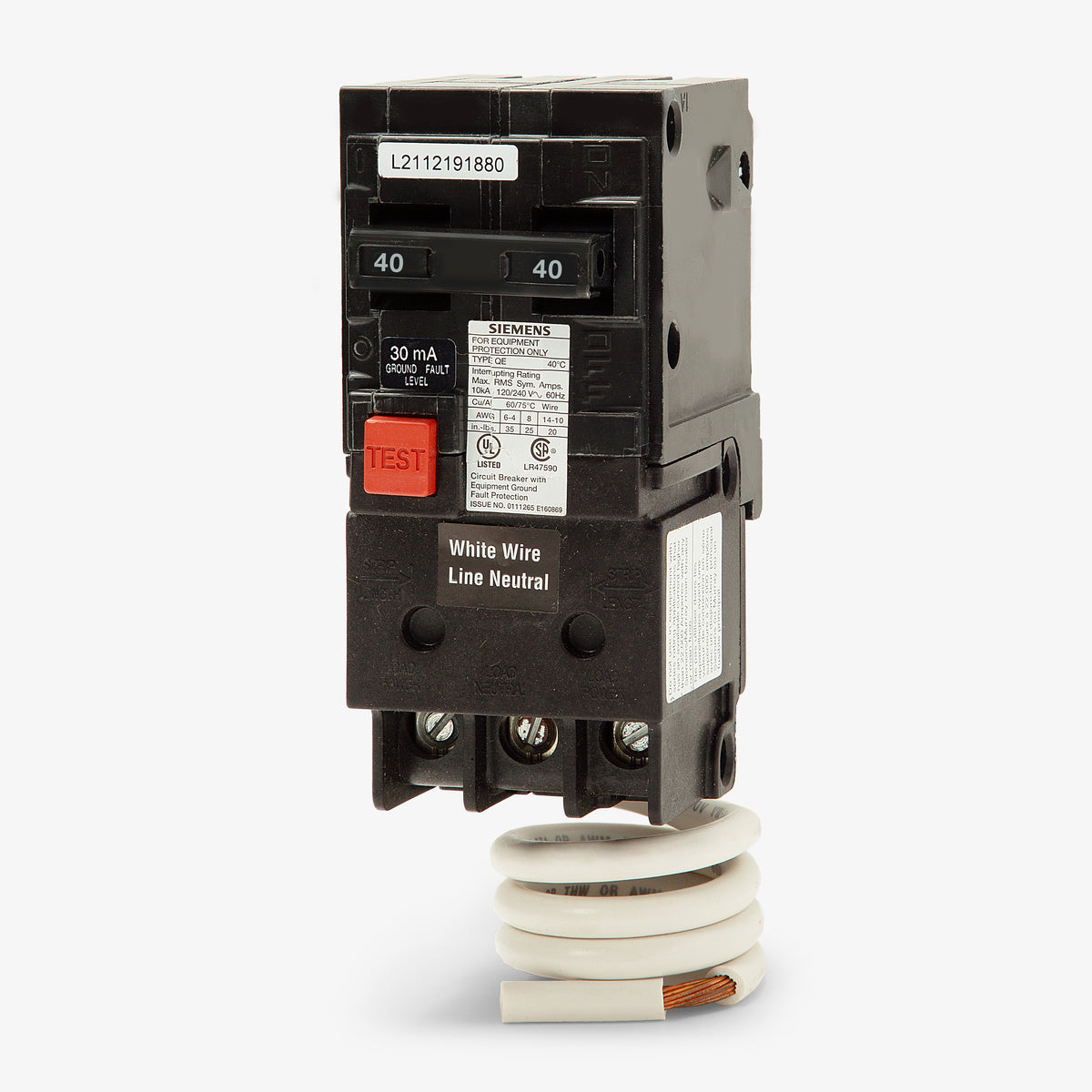

Siemens QE240 - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Delivering 30mA ground fault equipment protection, the Siemens QE240 is a 2-pole, 40A plug-on breaker. Designed to safeguard commercial and residential machinery, it prevents damage from line-to-ground faults rather than serving as a 5mA personnel GFCI. It installs into Siemens load centers and P1 panelboards, replacing legacy Q240EG and MP240EP models. This thermal-magnetic breaker features a 10kAIC rating at 120/240VAC, HACR certification, and includes a pigtail neutral connection.Specifications
| Brand | Siemens |
|---|---|
| Series | QE |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens P1 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Equipment Protection |
Product FAQs
5 answersIs the Siemens QE240 a standard GFCI breaker for personnel protection?
No. The QE240 is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold. It is designed to protect machinery and equipment from line-to-ground faults, rather than providing the 5mA personnel protection of a Class A GFCI.
Can the Siemens QE240 replace older Murray equipment protection breakers?
Yes. The Siemens QE240 is the direct replacement for legacy Murray MP240EP and Siemens Q240EG 40A GFEP breakers.
How is the neutral connected on the QE240 breaker?
The QE240 features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panel neutral bus bar, while the load neutral wire connects to the designated neutral lug on the breaker itself.
Which electrical panels are compatible with the QE240 breaker?
This plug-on breaker is designed for use in standard Siemens load centers and Siemens P1 panelboards that accept QP-frame breakers.
Does Siemens offer a version of this 40A GFEP breaker with a higher interrupting rating?
The standard QE240 has a 10kAIC rating. If your application requires a 22kAIC rating, you will need the QE240H or its direct replacement, the Q240EGH.
