Square D 9007AP321 Snap Limit Switch

Brand Square D
SKU 9007AP321
Square D 9007AP321 Snap Limit Switch
Free Shipping Over $99
Square D 9007AP321 Snap Limit Switch

Square D 9007AP321 Snap Limit Switch

Brand Square D
SKU 9007AP321
Select Item Condition
Earn 75 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D 9007AP321 Snap Limit Switch

Square D 9007AP321 Snap Limit Switch

New

$75.99 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

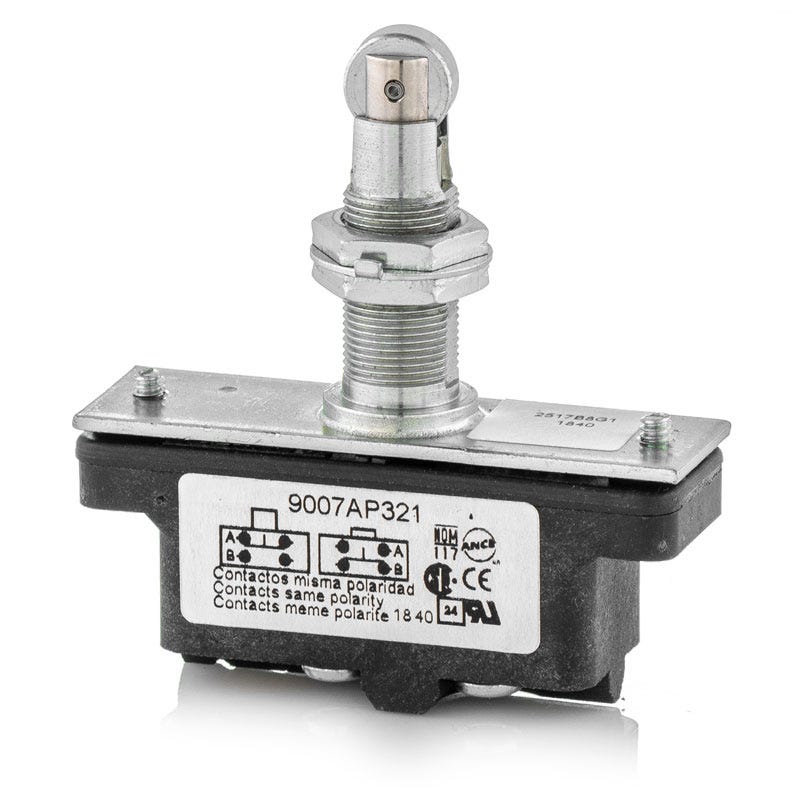

Square D 9007AP321 Snap Limit Switch

The Square D9007AP321 Limit Switch is an electromechanical device that features an actuator which is mechanically linked to a set of contacts. This switch can be installed easily with a panel mount. It is made from die cast zinc and allows for allows for quick actuation by using 30° cam mechanism and its quick snap action. The 9007AP321 conforms to NEMA type 250 degree of protection which makes it a reliable product for industrial use. It can operate consistently within an ambient air temperature range of -20-degree Fahrenheit to 185-degree Fahrenheit. It has a current and voltage rating of 15-Ampere and 600 VAC.

Specifications

Brand Square D
Series Heavy Duty
Amperage 15
Voltage 600 VAC
Poles 1
Mounting Type Panel
Terminal Connection Screw
Length (in) 1.03
Width (in) 0.83
Height (in) 2.5
Standards Ul Listed File Number E42259 Ccn Nkcr - Csa Certified File Number Lr25490 Class 3211-03 - Ce Marked
Temperature Rating (20 C to + 85 C)
Actuator Type Roller Plunger
Mpn 9007AP321
Upc 785901809418
Gtin 785901809418
