Federal Pacific NES2115 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Federal Pacific
NES2115
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NES2115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

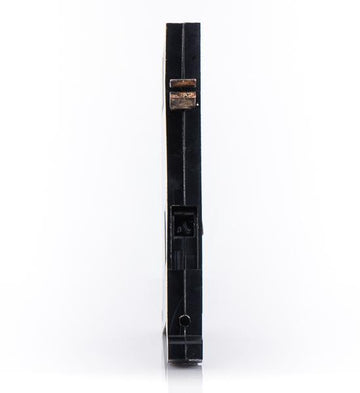

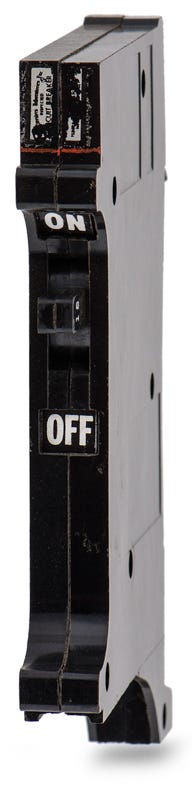

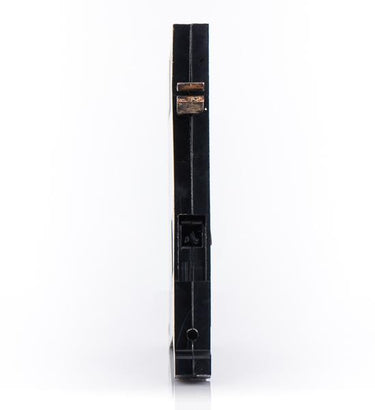

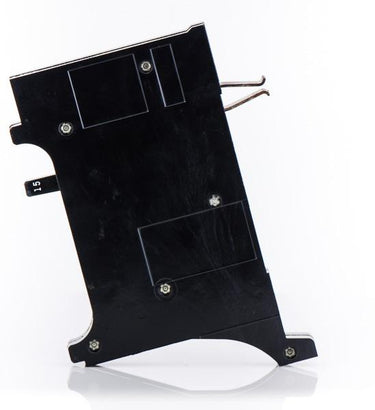

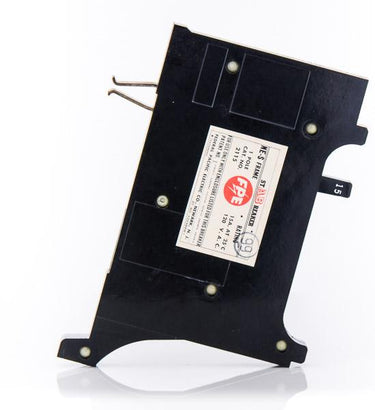

Federal Pacific NES2115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
The NES2115 is a 1-pole, 15A molded case circuit breaker designed to maintain and restore older commercial and industrial electrical systems. It provides reliable overcurrent protection for 120VAC and 125VDC applications. Engineered as an exact fit for Federal Pacific NE-S frame panelboards, this plug-on breaker requires no mounting adapters. It serves as a drop-in replacement for legacy installations. Featuring fixed thermal-magnetic trip technology, it carries a 14kAIC rating.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NES2115 |
| Series | NES |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE-S Frame Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NES2115 circuit breaker?
This breaker is engineered specifically for legacy Federal Pacific NE-S Frame panelboards. It is designed as a direct drop-in replacement for these specific enclosures.
Does the NES2115 support DC voltage applications?
Yes. In addition to its 120/240VAC rating, this breaker is rated for 125VDC applications with a maximum interrupting capacity of 5kAIC.
Are the trip settings adjustable on the NES2115?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
What wire sizes are supported by the lugs on the NES2115?
The terminal lugs on this breaker accommodate conductors ranging from 14 AWG to 10 AWG.
What mounting configuration does the NES2115 utilize?
The NES2115 features a plug-in connection type, allowing for straightforward installation into compatible NE-S frame panelboards without the need for additional mounting hardware.
Is the NES2115 a residential Stab-Lok breaker?
No. The NES2115 is a molded case circuit breaker belonging to the N Frame family. It is designed for commercial and industrial NE-S frame panelboards, not residential Stab-Lok load centers.
