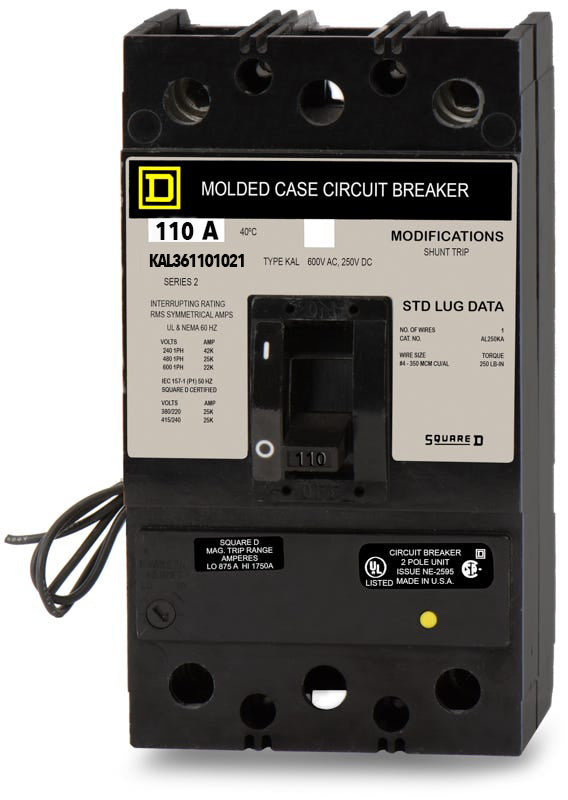

Square D KAL36110-1021 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Square D
KAL36110-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36110-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36110-1021 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial facilities, the Square D KAL36110-1021 is a 3-pole, 110A molded case circuit breaker. It delivers reliable thermal-magnetic protection for heavy-duty electrical systems. This unit mount MCCB installs into compatible Square D switchboards and motor control centers. As a legacy K-Frame component, it is replaced by the PowerPact HDL36110SA for modern upgrades. Rated 25 kAIC at 480VAC, it includes a 120VAC shunt trip for remote tripping and adjustable magnetic settings.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36110-1021 |
| Series | KAL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat does the -1021 suffix mean on the KAL36110-1021?
The -1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip. This accessory allows the circuit breaker to be tripped remotely by applying a voltage signal to the shunt trip coil.
Is the KAL36110-1021 still manufactured, or is there a modern replacement?
The KAL36110-1021 is a legacy K-Frame breaker. For modern panel upgrades, it is typically replaced by the Square D PowerPact H-Frame series. A common direct cross-reference with a 120VAC shunt trip is the HDL36110SA, though you should verify that its interrupting ratings meet your specific system requirements.
Can I install the KAL36110-1021 in an I-Line panelboard?
No. The KAL36110-1021 is a unit-mount, feed-thru circuit breaker designed to be bolted to the backplate of Square D enclosures, switchboards, and motor control centers. For an I-Line plug-on connection, you would need a KA-frame breaker, such as the KA36110.
What does the LI trip function code mean on this breaker?
The LI trip function code indicates that the breaker provides Long-Time (L) and Instantaneous (I) protection. The long-time function protects against sustained overloads, while the instantaneous function provides immediate tripping during short-circuit faults.
Is the trip unit on the KAL36110-1021 adjustable?
The KAL36110-1021 features a thermal-magnetic trip unit with a fixed thermal (overload) setting and an adjustable magnetic (short-circuit) setting, allowing you to fine-tune the instantaneous trip response to your specific load requirements.
Does this breaker include a Push-to-Trip feature?
Yes, the KAL36110-1021 features a Push-to-Trip button on the face of the breaker. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism without exposing yourself to live parts.
