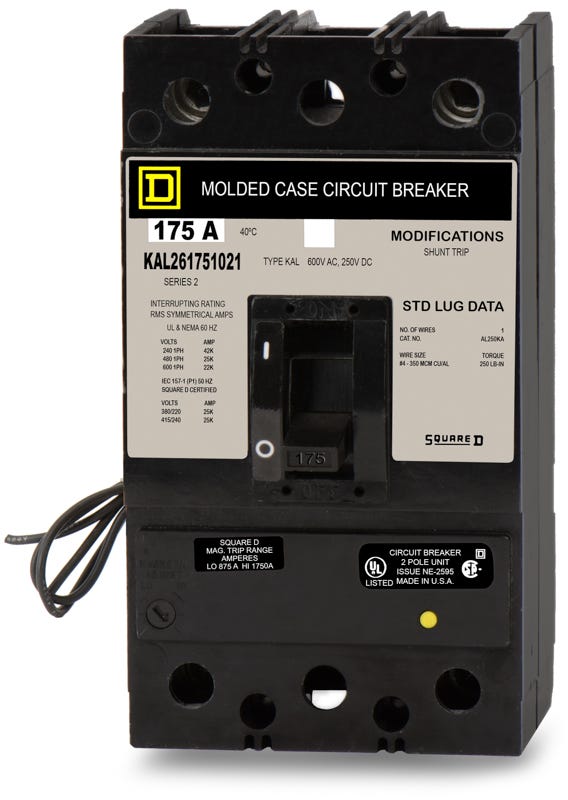

Square D KAL36175-1021 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
KAL36175-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36175-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36175-1021 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KAL36175-1021 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36175-1021-R |
| Series | KAL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KAL36175-1021 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36175-1021-R |
| Series | KAL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for advanced control, the Square D KAL36175-1021 is a 3-pole, 175A molded case circuit breaker featuring a factory-installed 120-240VAC shunt trip for remote disconnection. This unit mount K-Frame breaker fits Square D enclosures, switchboards, and motor control centers. When upgrading, it is replaced by the JGL36175, which requires a separate shunt trip and retrofit kit. Delivering 25kAIC at 480VAC, it includes an adjustable magnetic trip, Visi-Trip indicator, and HACR rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36175-1021-R |
| Series | KAL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the -1021 suffix mean on the Square D KAL36175-1021?
The -1021 suffix indicates that this circuit breaker includes a factory-installed 120/240VAC shunt trip for remote tripping applications.
What is the modern replacement for the legacy Square D KAL36175-1021?
The KAL series is a legacy K-Frame breaker. The modern equivalent is the PowerPact J-Frame series, such as the JGL36175. Upgrading to a PowerPact breaker requires a separate shunt trip accessory and may require a retrofit kit depending on your enclosure.
What wire sizes are accepted by the lugs on the KAL36175-1021?
The factory lugs on this K-Frame breaker accept 4 AWG to 350 kcmil aluminum or copper wire.
Is the trip unit on the KAL36175-1021 adjustable?
This breaker features a thermal magnetic trip unit with a fixed thermal element for long-time protection and an adjustable magnetic element for instantaneous short-circuit protection.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection.
What types of equipment is the KAL36175-1021 compatible with?
This unit-mount breaker is designed for use in compatible Square D enclosures, switchboards, motor control centers, and industrial control panels.
How is the KAL36175-1021 mounted in a panel?
This is a unit-mount, or feed-thru, circuit breaker. It is secured using mounting hardware rather than plugging in or bolting onto a busbar like I-Line breakers.
