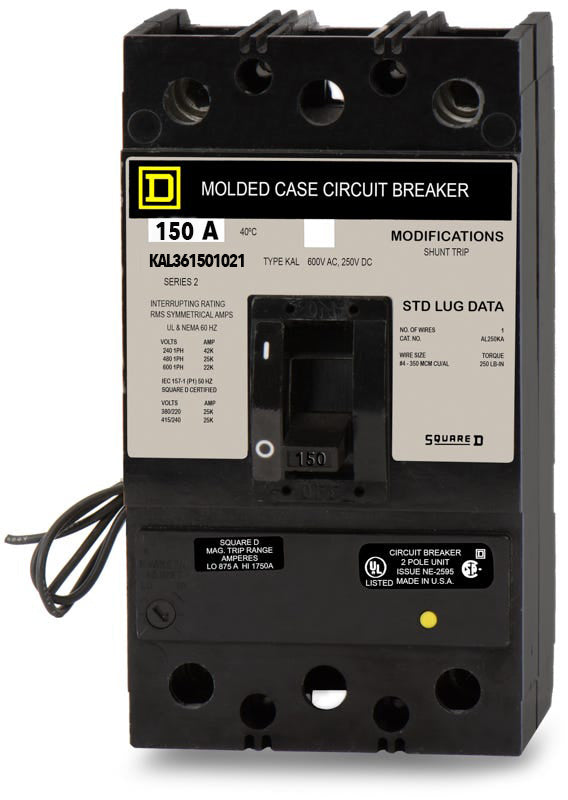

Square D KAL36150-1021 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
KAL36150-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36150-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36150-1021 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KAL36150-1021 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36150-1021 |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D KAL36150-1021 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL36150-1021 |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
KAL362001021 3 Pole Circuit Breaker
Description
Engineered for industrial applications, the Square D KAL36150-1021 is a 3-pole, 150A molded case circuit breaker from the legacy K-Frame family. It delivers reliable thermal-magnetic protection with an adjustable magnetic trip. This unit mount breaker installs into compatible Square D enclosures, switchboards, and motor control centers. While replaced by the PowerPact J-Frame, it remains a direct fit for existing setups. It features a factory-installed 120VAC shunt trip for remote tripping.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36150-1021 |
| Series | KAL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | K |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the modern replacement for the legacy Square D KAL36150-1021?
The legacy K-Frame breakers have been superseded by the Square D PowerPact J-Frame series. However, the KAL36150-1021 remains a direct fit for existing K-Frame setups without requiring panel modifications.
What does the -1021 suffix indicate on this breaker?
The -1021 suffix signifies that the breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely by applying a 120V control voltage signal, which is commonly used for emergency stops or automated safety shutdowns.
Can the KAL36150-1021 be installed in an I-Line busway system?
No, this is a unit-mount (feed-thru) breaker designed for lug-to-lug connections. For I-Line busway installations, an I-Line specific breaker, such as the KCA or JJA series, is required.
How does the Push-to-Trip feature work on this breaker?
Square D K-Frame breakers include a Push-to-Trip button that allows you to manually trip the breaker. This verifies the mechanical operation of the tripping mechanism without exposing personnel to live parts.
Is the KAL36150-1021 compatible with modern Square D enclosures?
Yes, this K-Frame breaker mounts into compatible Square D enclosures, switchboards, and motor control centers that are designed to accept legacy K-Frame unit-mount breakers.
