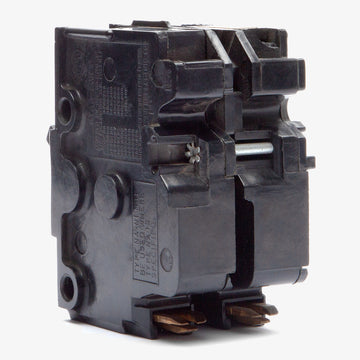

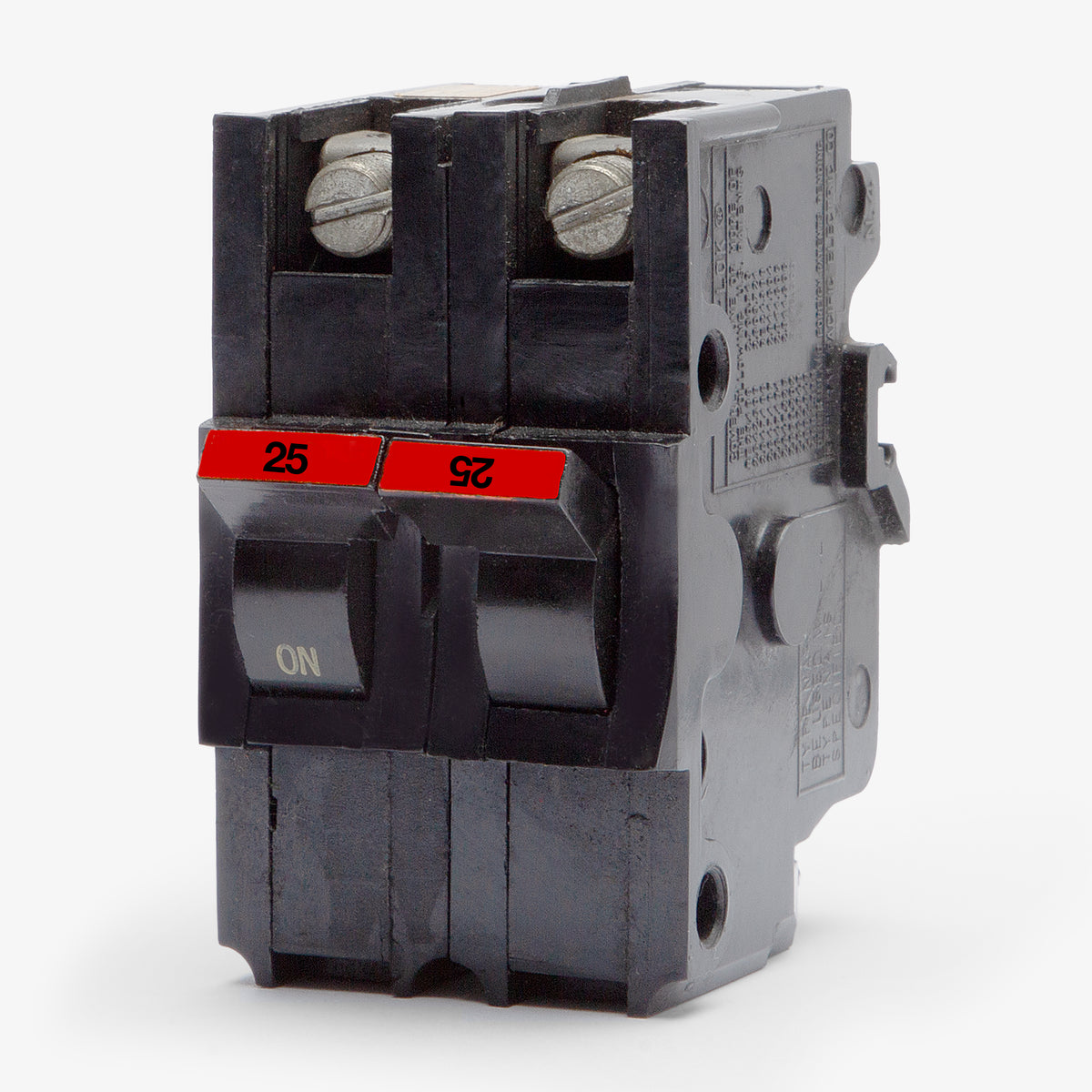

Federal Pacific NA225 Miniature Circuit Breaker
- 25A
- 2 Pole

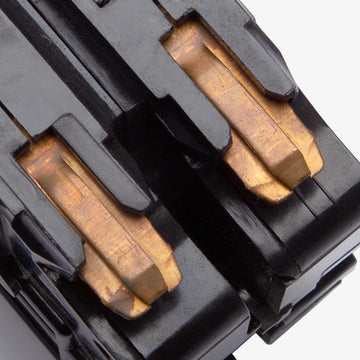

- Plug-On
Federal Pacific
NA225
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NA225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NA225 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NA225 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA225 |
| Series | NA |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Federal Pacific NA225 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA225-R |
| Series | NA |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for older electrical systems, the NA225 delivers 25 amps of thermal-magnetic protection. This legacy component helps safely maintain existing power distribution networks. It mounts into classic Federal Pacific Stab-Lok load centers, utilizing a standard plug-on connection. For modern replacements, the UBIF0225N thin series serves as a compatible substitute. Rated at 10 kAIC at 120/240VAC, it features a full 1-inch per pole width and a color-coded handle.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NA225-R |
| Series | NA |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
5 answersWhat is the difference between Federal Pacific NA and NC circuit breakers?
Federal Pacific NA breakers are the original thick style, measuring 1 inch per pole. The NC series are thin or half-size breakers, measuring 0.5 inches per pole. The NA225 is a 2-pole thick breaker and requires 2 inches of total space in a Stab-Lok panel.
Are Federal Pacific Stab-Lok circuit breakers safe to use?
Federal Pacific Electric (FPE) Stab-Lok panels and breakers have a documented history of failing to trip during overloads or short circuits, which presents a significant fire hazard. While replacement breakers like the NA225 can restore temporary functionality, most licensed electricians and home inspectors strongly recommend upgrading the entire electrical panel to a modern, code-compliant system.
Are there modern aftermarket replacements for the Federal Pacific NA225?
Yes. Because original Federal Pacific breakers are obsolete, companies like Connecticut Electric manufacture modern, ETL-listed aftermarket replacement breakers designed specifically to fit classic Stab-Lok load centers.
Will the NA225 fit in any Federal Pacific electrical panel?
The NA225 is designed exclusively for Federal Pacific Stab-Lok load centers that accept full-size NA frame breakers. It will not fit in panels that only accept the thinner NC style breakers or in non-Stab-Lok panels.
What size wire is compatible with the NA225 breaker lugs?

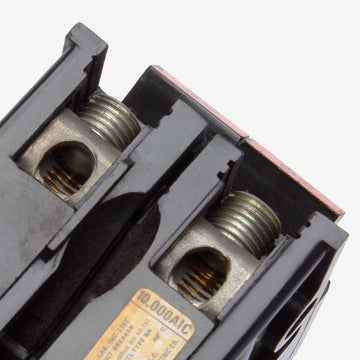

The load side lugs on the NA225 accept wiring ranging from 14 AWG to 2 AWG. Always verify the appropriate wire size for a 25-amp circuit based on current National Electrical Code (NEC) standards and the specific conductor material.
