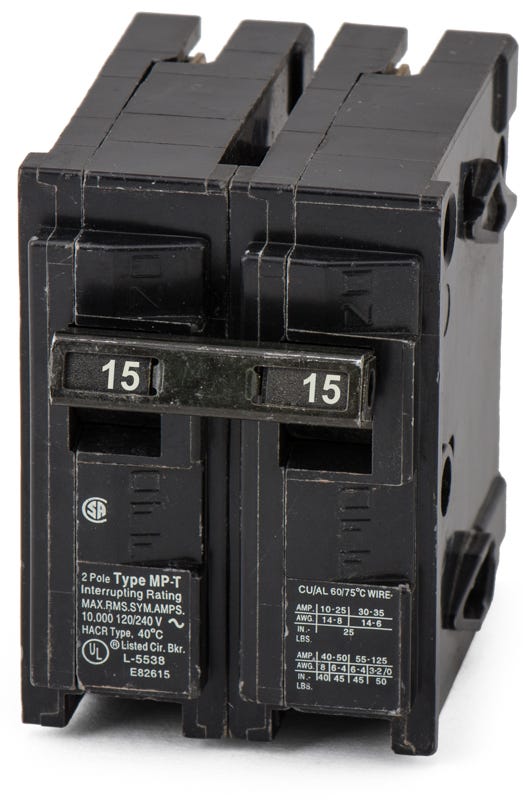

Siemens MP215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Siemens
MP215
Miniature Circuit Breaker
Brand
Siemens
SKU
MP215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens MP215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens MP215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MP215 |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Insta-Wire |
Sold out
Quantity
Siemens MP215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MP215-R |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Insta-Wire |
Similar Items
25A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Part of the trusted MP-T series, the Siemens MP215 delivers 15 amps of reliable circuit protection for residential and light commercial spaces. It is ideal for safeguarding 240-volt appliances and dedicated equipment circuits against electrical faults. This breaker is engineered to snap securely into Murray load centers and compatible enclosures. Equipped with a 10 kAIC interrupting rating at 120/240VAC, the unit is both HACR and SWD rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MP215 |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Insta-Wire |
Product FAQs
5 answersWhat load centers are compatible with the Siemens MP215 circuit breaker?
The MP215 is designed specifically for use in Murray load centers and compatible enclosures that accept MP-T type plug-on breakers.
Can I use the Siemens MP215 to replace an older Murray MP215 breaker?
Yes. Siemens acquired Murray, and the Siemens MP215 is the direct, manufacturer-approved replacement for legacy Murray MP215 15-amp, 2-pole breakers.
What are the wiring requirements for installing the MP215?
The breaker features standard lug terminals that accommodate 14 to 6 AWG copper conductors or 12 to 6 AWG aluminum conductors. Ensure proper torque is applied during installation as specified on the breaker label.
How does the thermal-magnetic trip mechanism in the MP215 operate?
It utilizes a fixed Long-Time and Instantaneous (LI) trip function. The thermal component provides delayed tripping for sustained overloads, while the magnetic component trips instantaneously during severe short circuits.
Is the Siemens MP215 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a dedicated 15-amp, 2-pole circuit.
