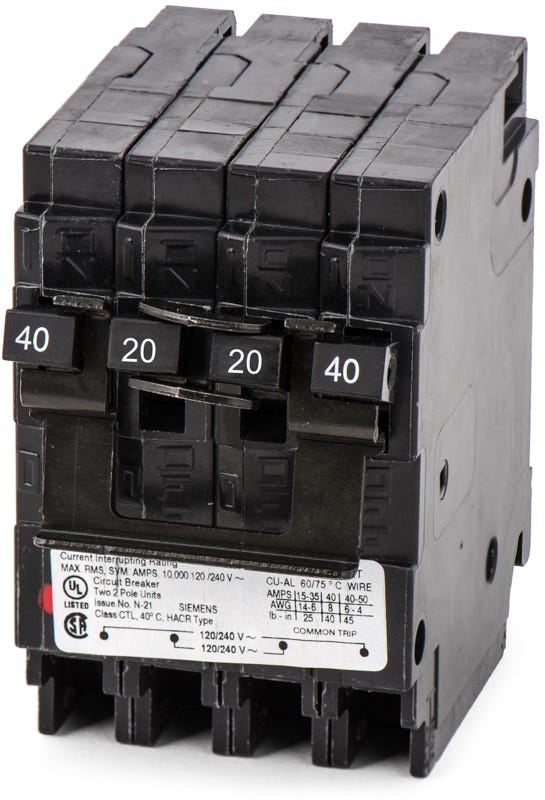

Siemens Q24020 40/20A Quadplex Miniature Circuit Breaker
- 40/20A
- 4 Pole
- Plug-On
Siemens
Q24020
40/20A Quadplex Miniature Circuit Breaker
Brand
Siemens
SKU
Q24020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q24020 - 40/20A Quadplex Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens Q24020 - 40/20A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q24020 |
| Series | Q |
| Amperage | 40/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Space Saver, Common Trip, Insta-Wire |
Sold out
Quantity
Siemens Q24020 - 40/20A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q24020-R |
| Series | Q |
| Amperage | 40/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Space Saver, Common Trip, Insta-Wire |
Similar Items
30/25A Quadplex Miniature Circuit Breaker
30/20A Quadplex Miniature Circuit Breaker
Description
The Q24020 is a Type QT quadplex miniature circuit breaker from Siemens, delivering 40A and 20A protection in a space-saving plug-on design. Built for residential applications, it allows installers to add multiple circuits without requiring a larger enclosure. Mounts into compatible Siemens load centers that accept Type QT breakers. Featuring a non-common trip mechanism and a 10kAIC rating at 120/240VAC, this legacy breaker is replaced by the Q24020CT2 model.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q24020 |
| Series | Q |
| Amperage | 40/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Space Saver, Common Trip, Insta-Wire |
Product FAQs
7 answersWhat panels are compatible with the Siemens Q24020 circuit breaker?
The Q24020 is designed for use in Siemens load centers that accept Type QT quadplex breakers. It requires two full panel spaces and a notched bus bar designed for CTL (Circuit Total Limiting) breakers.
What circuits does the Q24020 quadplex breaker provide?
This quad breaker provides two independent 240V circuits in a single unit: one 40A double-pole circuit and one 20A double-pole circuit. It occupies two standard 1-inch spaces in the panel.
Does the Q24020 feature a common trip mechanism?
No, the standard Q24020 features a non-common trip mechanism. If a common trip mechanism is required for your application, you will need the Q24020CT2 model.
Does the Q24020 require a CTL panel?
Yes, as a standard Type QT breaker, it features a rejection clip and is designed exclusively for CTL (Circuit Total Limiting) load centers that are rated to accept tandem or quadplex breakers. It will not seat properly in non-CTL spaces.
What wire sizes are accepted by the lugs on the Q24020?
The terminals accept 8 to 6 AWG copper wire or 8 to 4 AWG aluminum wire. Ensure you torque the lugs to the manufacturer specifications during installation.
Is the Q24020 the same as the Q24020CT2?
They are similar in amperage and footprint, but the Q24020 has a non-common trip mechanism, whereas the Q24020CT2 features a common trip mechanism. Check your local electrical code requirements to determine which version is required for your specific load.
What is the difference between the Q24020 and the Q24020NC?
The Q24020 is a CTL (Circuit Total Limiting) breaker with a rejection clip, designed for modern panels. The Q24020NC is a non-CTL version without the rejection clip, intended for use in older panels that do not have notched bus bars.
