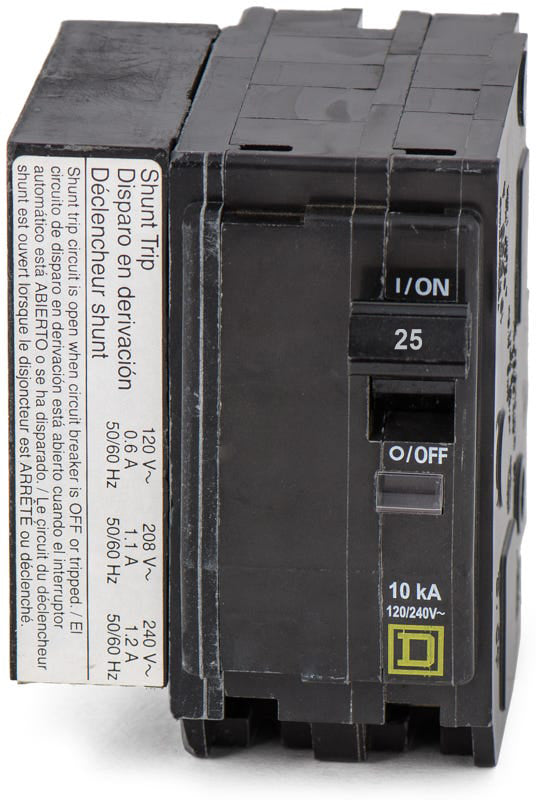

Square D QO225-1021 QO2251021 - 25A 2 Pole Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Square D
QO225-1021
QO2251021 - 25A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO225-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2251021 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO2201021 - 20A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial control systems, this 25-amp, two-pole breaker includes a factory-installed shunt trip for remote power interruption. The plug-on design mounts securely into Square D QO load centers and NQ panelboards, accepting 14-8 AWG copper or aluminum wiring. Operating at 120/240V with a 10kAIC rating, it features a trip-free mechanism, quick-make/quick-break action, and the signature Visi-Trip indicator for immediate visual confirmation of a fault.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2251021 |
| Series | QO |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120/208/240 VAC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat does the -1021 suffix mean on this Square D QO breaker?
The -1021 suffix indicates that the breaker includes a factory-installed 120/208/240V AC shunt trip. This allows the breaker to be tripped remotely by applying voltage to the shunt trip coil.
How does the shunt trip function on the QO225-1021 operate?
The factory-installed shunt trip requires an external voltage source of 120V to 240V AC. When power is applied to the shunt trip coil, it mechanically trips the breaker to open the circuit, making it ideal for emergency stop or remote shutdown applications.
What panelboards and load centers are compatible with the QO225-1021?
This plug-on circuit breaker is designed for use in Square D QO load centers and NQ panelboards. It is not compatible with Homeline or I-Line panels.
Is there a bolt-on equivalent for the QO225-1021?
Yes, if your application requires a bolt-on connection for an NQ panelboard, the equivalent Square D part number is QOB2251021.
Does the QO225-1021 feature a Visi-Trip indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or a remote shunt trip command, the handle moves to a center position and a highly visible red indicator appears in a window on the breaker case.
Is the QO225-1021 HACR rated?
Yes, standard Square D QO circuit breakers are HACR rated, making this breaker suitable for group motor applications found in heating, air conditioning, and refrigeration equipment.
