Square D QO2401021 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Square D
QO2401021
Miniature Circuit Breaker
Brand
Square D
SKU
QO2401021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

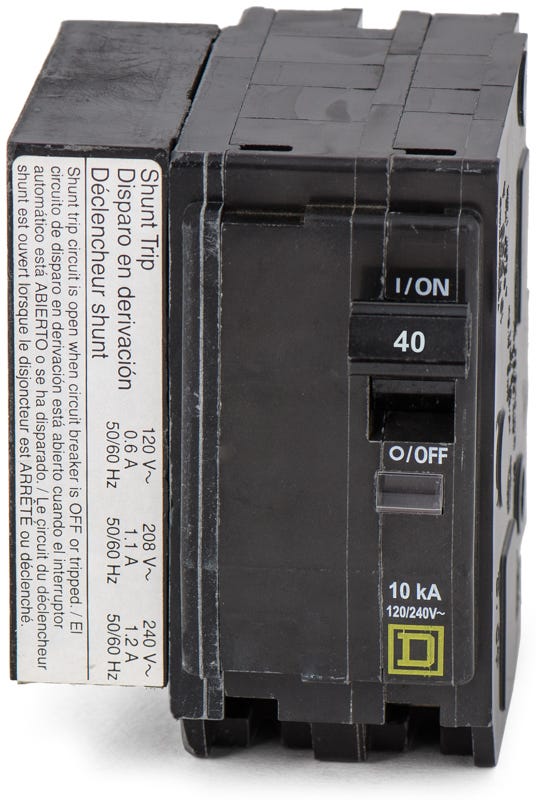

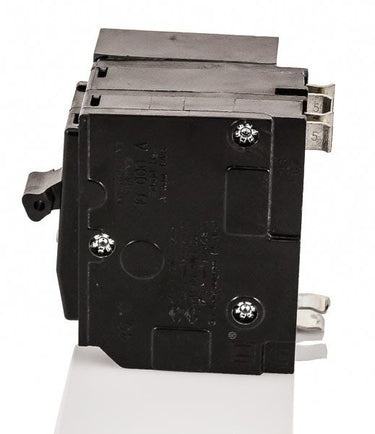

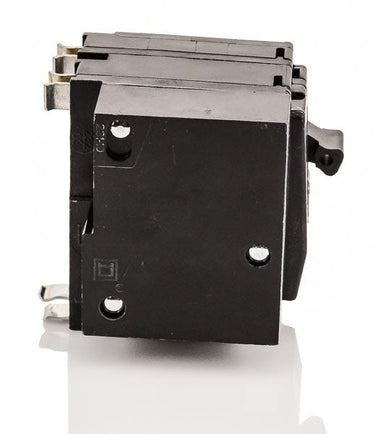

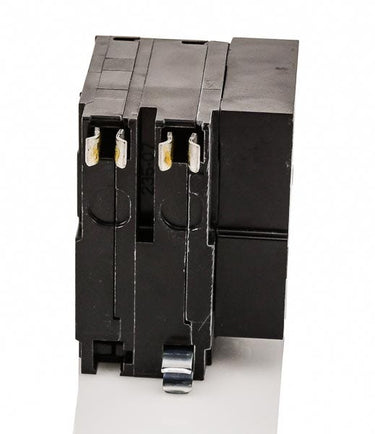

Square D QO2401021 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO2201021 - 20A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D QO2401021 delivers reliable 40A thermal-magnetic protection. This two-pole miniature circuit breaker features a Visi-Trip indicator for quick fault identification. It mounts into standard QO load centers, as well as NQ and NQOD panelboards. The integrated 120/208/240VAC shunt trip mechanism allows facility managers to remotely open the circuit for emergency shutdowns or automated control systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2401021 |
| Series | QO |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersHow many panel spaces does the QO2401021 require?
This breaker requires three total panel spaces. The 2-pole breaker occupies two spaces, and the factory-installed shunt trip accessory requires one additional space.
What does the 1021 suffix mean on this Square D breaker?
The 1021 suffix indicates that the breaker includes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be tripped remotely for emergency shutdowns or automated control.
Which electrical panels are compatible with the QO2401021?
This plug-on breaker is designed for use in Square D QO load centers, as well as NQ and NQOD panelboards. It is not compatible with Homeline or I-Line panels.
How do I wire the shunt trip on the QO2401021?
The shunt trip requires a 120V to 240V AC control voltage. You must land the control circuit wires on the two terminals provided on the shunt trip module to enable remote tripping.
Does this breaker have a visual trip indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or a shunt trip command, a red flag appears in the indicator window for quick identification.
