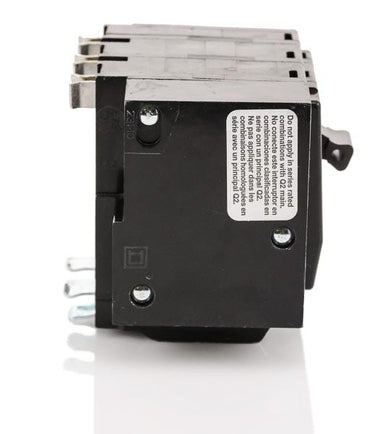

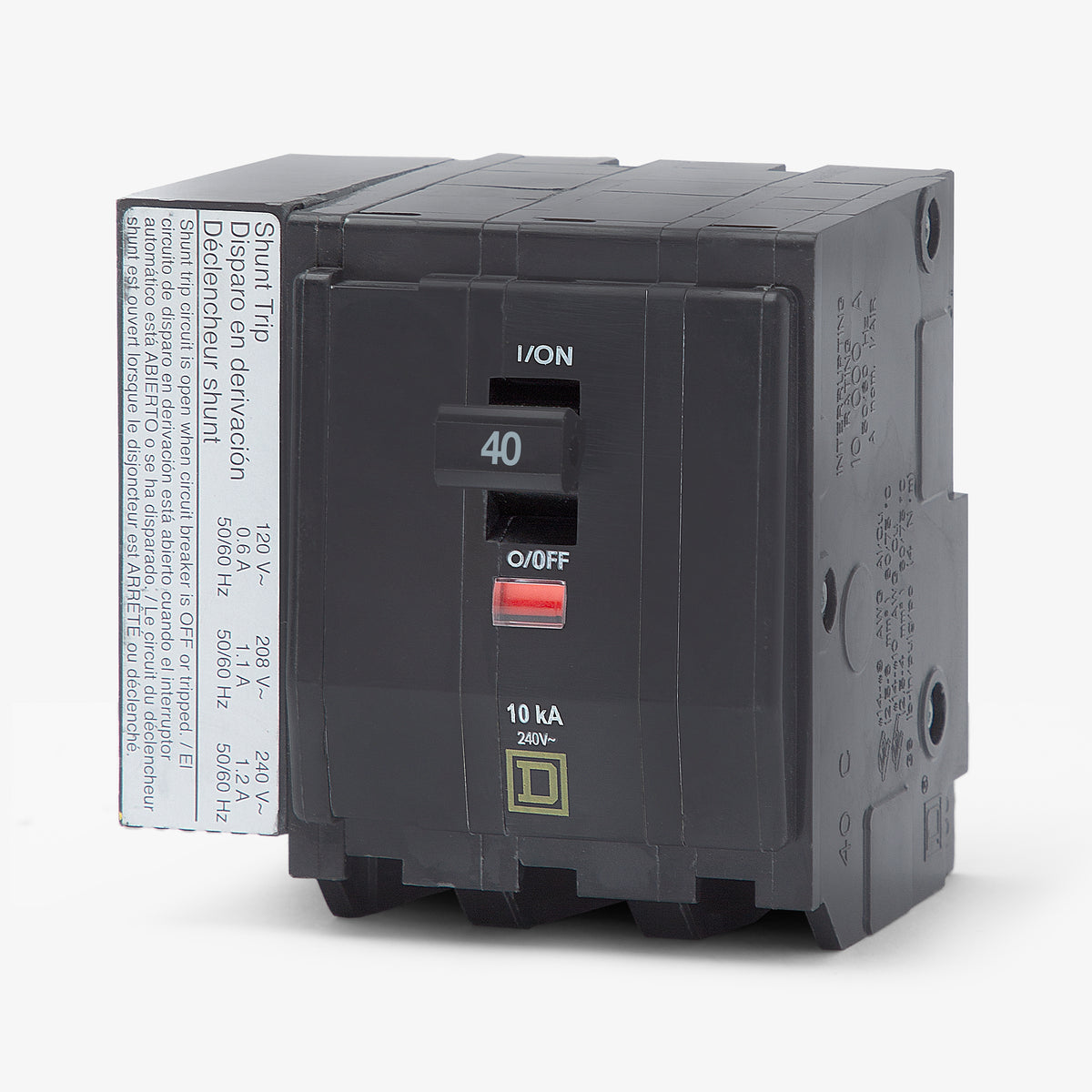

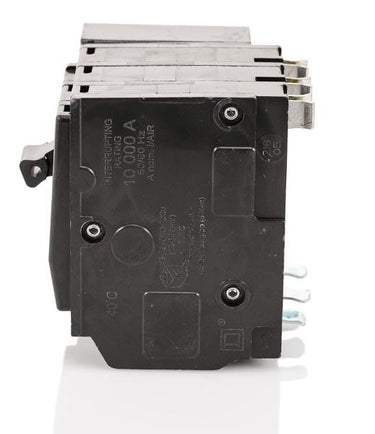

Square D QO340-1021 QO3401021 - 40A 3 Pole Miniature Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Square D
QO340-1021
QO3401021 - 40A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO340-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO3401021 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO3601021 - 60A 3 Pole Miniature Circuit Breaker
QO3201021 - 20A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
Description
Part of the QO series, the Square D QO340-1021 is a 40-amp, three-pole miniature circuit breaker designed for residential, commercial, and industrial use. It is engineered to mount into QO load centers, NQ panelboards, and legacy NQOD systems. This plug-on breaker features a 10kAIC rating at 240VAC and utilizes thermal-magnetic trip technology. The defining feature is the factory-installed 120/240V shunt trip accessory, which enables the breaker to be tripped remotely from a pilot device.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO3401021 |
| Series | QO |
| Amperage | 40A |
| Poles | 3 |

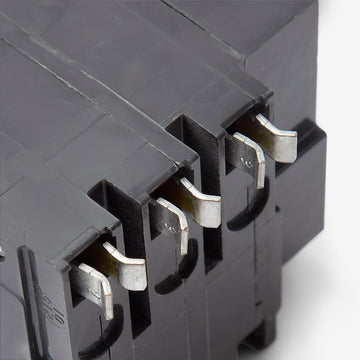

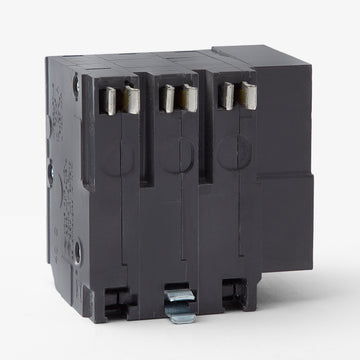

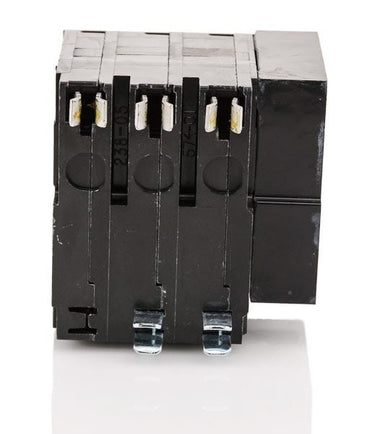

| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |

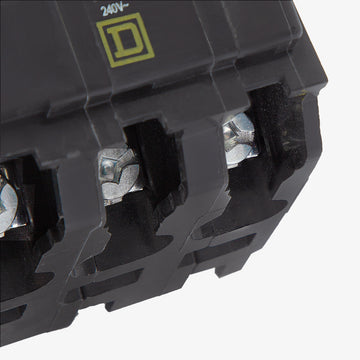

| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
7 answersWhat does the -1021 suffix mean on the QO340-1021 catalog number?
The -1021 suffix denotes a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be tripped remotely via an external pilot device or control signal.
How many panel spaces does the QO3401021 require?
Because of the factory-installed shunt trip accessory, this 3-pole breaker requires four standard 3/4-inch pole spaces in your panel.
Can I install the QO3401021 in a Homeline load center?
No. Square D QO breakers are not interchangeable with Homeline breakers. The QO3401021 is specifically designed for QO load centers, NQ panelboards, and legacy NQOD panelboards.
Does the QO3401021 feature a Visi-Trip indicator?
Yes, it includes Square D's Visi-Trip indicator. When the breaker trips due to an overcurrent or a remote shunt trip signal, a red indicator appears in the window to help you quickly identify the tripped breaker in the panel.
What voltage is required to operate the shunt trip on the QO3401021?
The factory-installed shunt trip accessory requires a 120/240VAC control signal to remotely open the breaker contacts.
Can the QO3401021 be manually switched on and off?
Yes. Even though it includes a remote shunt trip accessory, it still functions as a standard thermal-magnetic breaker and can be manually toggled on or off at the panel.
Is the QO3401021 suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration motor loads.
