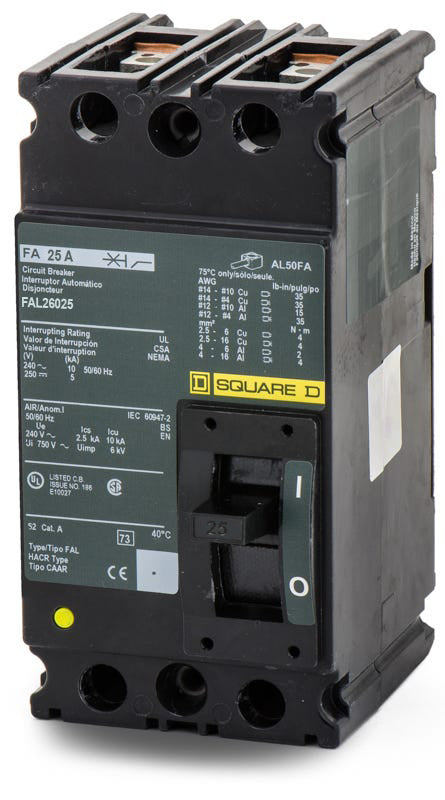

Square D FAL26025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Unit Mount
Square D
FAL26025
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL26025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL26025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, this 25A molded case circuit breaker utilizes fixed thermal and magnetic elements to safeguard electrical systems. The unit-mount design allows for straightforward integration into compatible Square D enclosures. As a legacy component, it crosses over to the modern PowerPact HDL26025 for panel upgrades. A built-in Visi-Trip indicator provides immediate visual confirmation of circuit interruptions, helping electricians troubleshoot issues rapidly.Specifications
| Brand | Square D |
|---|---|
| Series | FAL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Control Panels, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
7 answersIs the Square D FAL26025 still being manufactured, or is there a direct replacement?
The FAL26025 is a legacy F-frame circuit breaker. For modern panel upgrades or replacements, it crosses over to the PowerPact HDL26025, which offers the same 25A rating and 2-pole configuration but features an updated H-frame design.
What is the recommended lug torque for the FAL26025 circuit breaker?
For the standard lugs accepting 14 to 4 AWG wire, the required torque is 35 lb-in for copper and stranded aluminum conductors. If using 12 to 10 AWG solid aluminum wire, the torque requirement is 15 lb-in.
Can the FAL26025 be used in DC power systems?
Yes. In addition to its AC ratings of up to 600VAC, this thermal-magnetic breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC.
How does the FAL26025 mount inside an enclosure or panel?
This is a unit-mount, feed-thru circuit breaker. It does not plug onto a busbar or use an I-Line connection. Instead, it bolts directly to the backpan of compatible Square D enclosures, control panels, or switchboards and uses wire lugs on both the line and load sides.
What does the LI trip function mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) and Instantaneous (I) protection. The long-time function protects against sustained overloads, while the instantaneous function trips the breaker immediately during a short circuit. Both thermal and magnetic trip settings are fixed on this 25A model.
What type of wire can be used with the FAL26025?
The factory-installed lugs are rated for both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 4 AWG. Ensure you use conductors rated for 60 degrees C or 75 degrees C as required by your specific installation.
Does the FAL26025 feature a visual trip indicator?
Yes, this breaker includes a built-in Visi-Trip indicator. This provides immediate visual confirmation when the breaker has tripped due to an overcurrent or short-circuit event, helping electricians troubleshoot issues rapidly.
