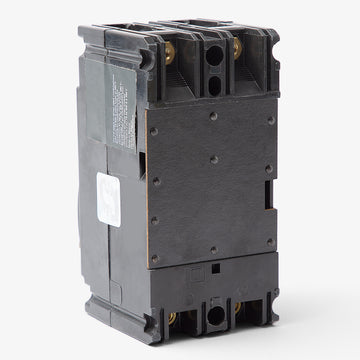

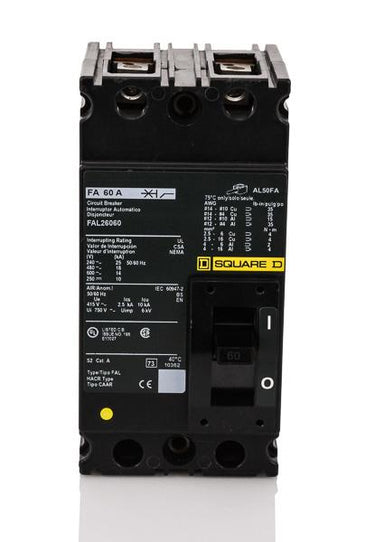

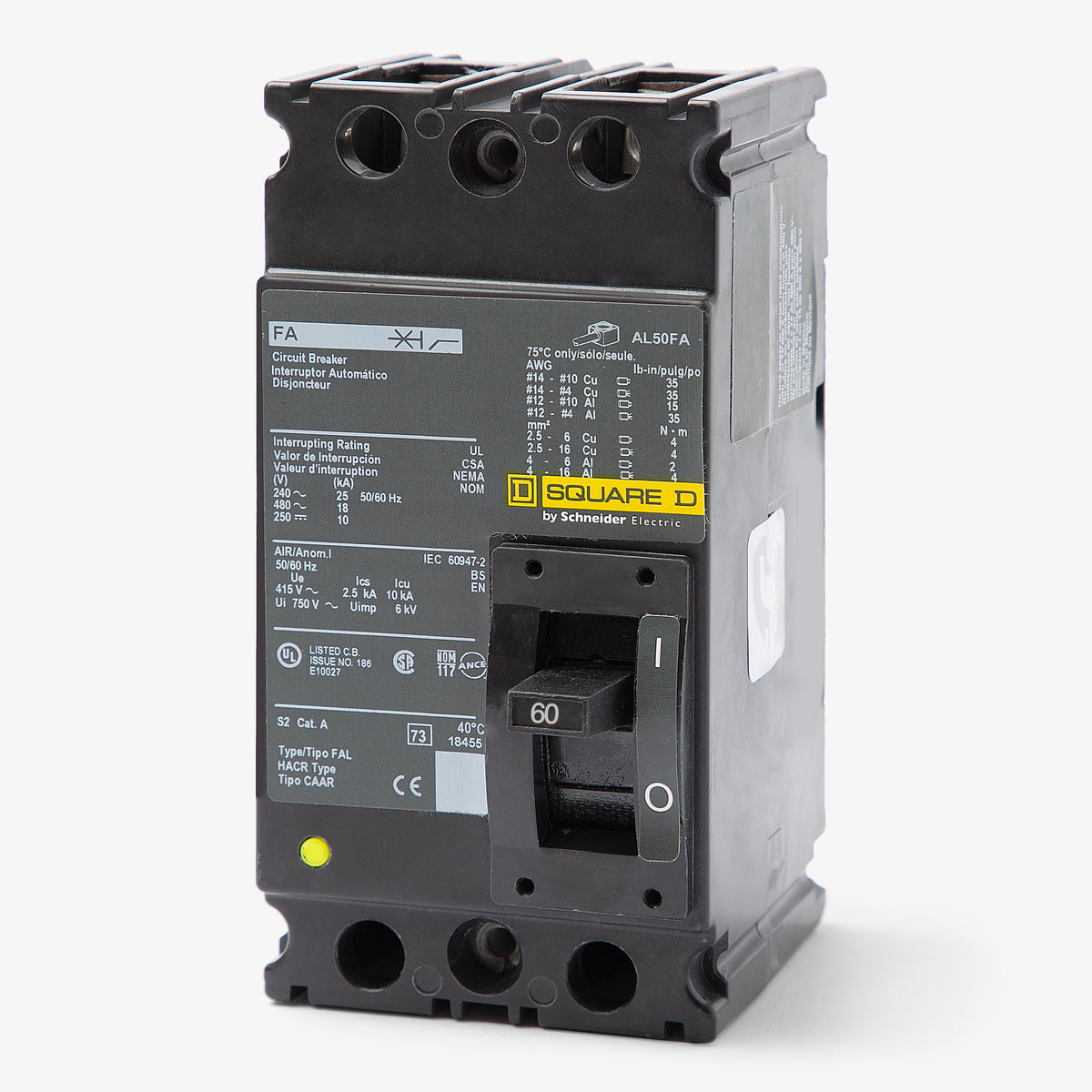

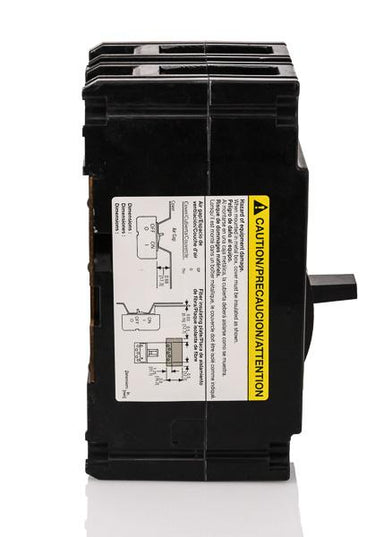

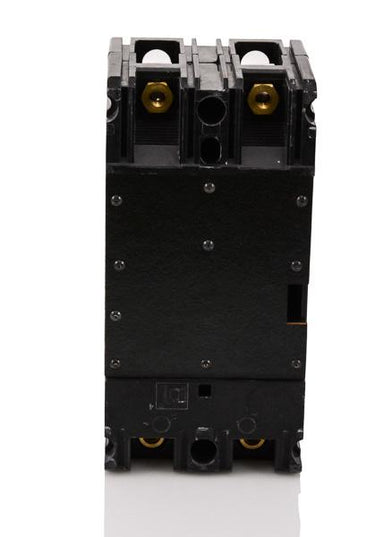

Square D FAL26060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Square D
FAL26060
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL26060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL26060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL26060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL26060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Square D FAL26060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL26060-R |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for versatile industrial applications, the Square D FAL26060 is a legacy F-Frame molded case circuit breaker. It delivers dependable long-time and instantaneous (LI) protection to prevent equipment damage. This unit-mount breaker integrates into Square D enclosures and switchboards, and can be replaced by the PowerPacT HGL26060. Capable of handling higher voltages, this 2-pole, 60A breaker is rated for 600VAC with a 14kAIC capacity, and up to 25kAIC at 240VAC. It is also HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL26060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhat enclosures and panels accept the FAL26060 circuit breaker?
This unit-mount, feed-thru breaker is designed for installation in standard Square D enclosures, switchboards, and control panels.
Is the FAL26060 suitable for direct current (DC) applications?
Yes, it is rated for DC systems up to 250VDC, providing a maximum interrupting capacity of 10kAIC at that voltage.
What is the modern replacement for the Square D FAL series?
The legacy F-Frame breakers are obsolete. Schneider Electric replaced the FA, FH, and FAL series with the PowerPact B-frame molded case circuit breakers for control panel and distribution applications.
What does the LI trip function mean on this F-Frame breaker?
The LI code indicates that the thermal-magnetic trip unit provides Long-Time (overload) and Instantaneous (short-circuit) protection. Both the thermal and magnetic trip settings are fixed on this model and cannot be adjusted in the field.

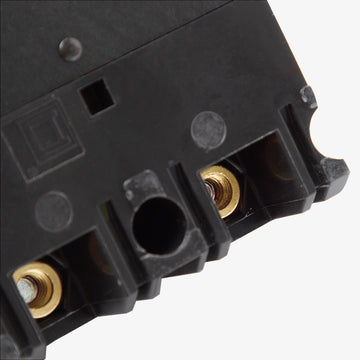

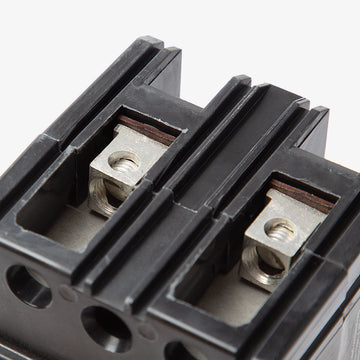

What wire sizes are compatible with the factory lugs on the FAL26060?
The standard lugs accept 14 AWG to 1/0 AWG copper conductors, or 12 AWG to 1/0 AWG aluminum conductors.
