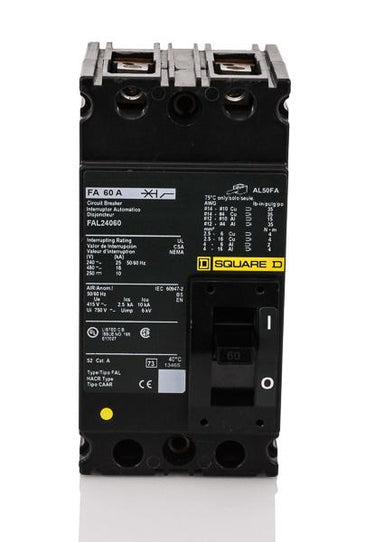

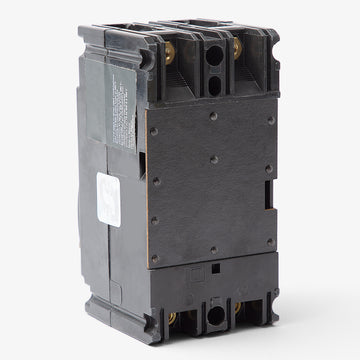

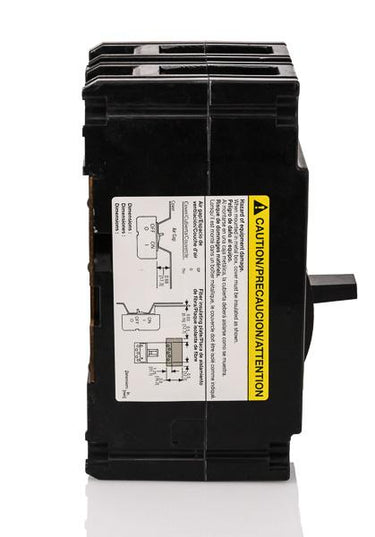

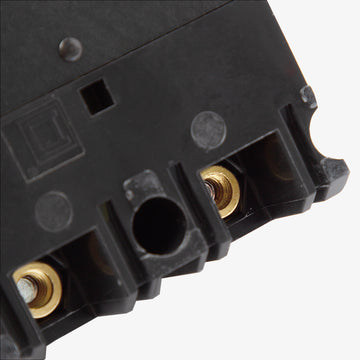

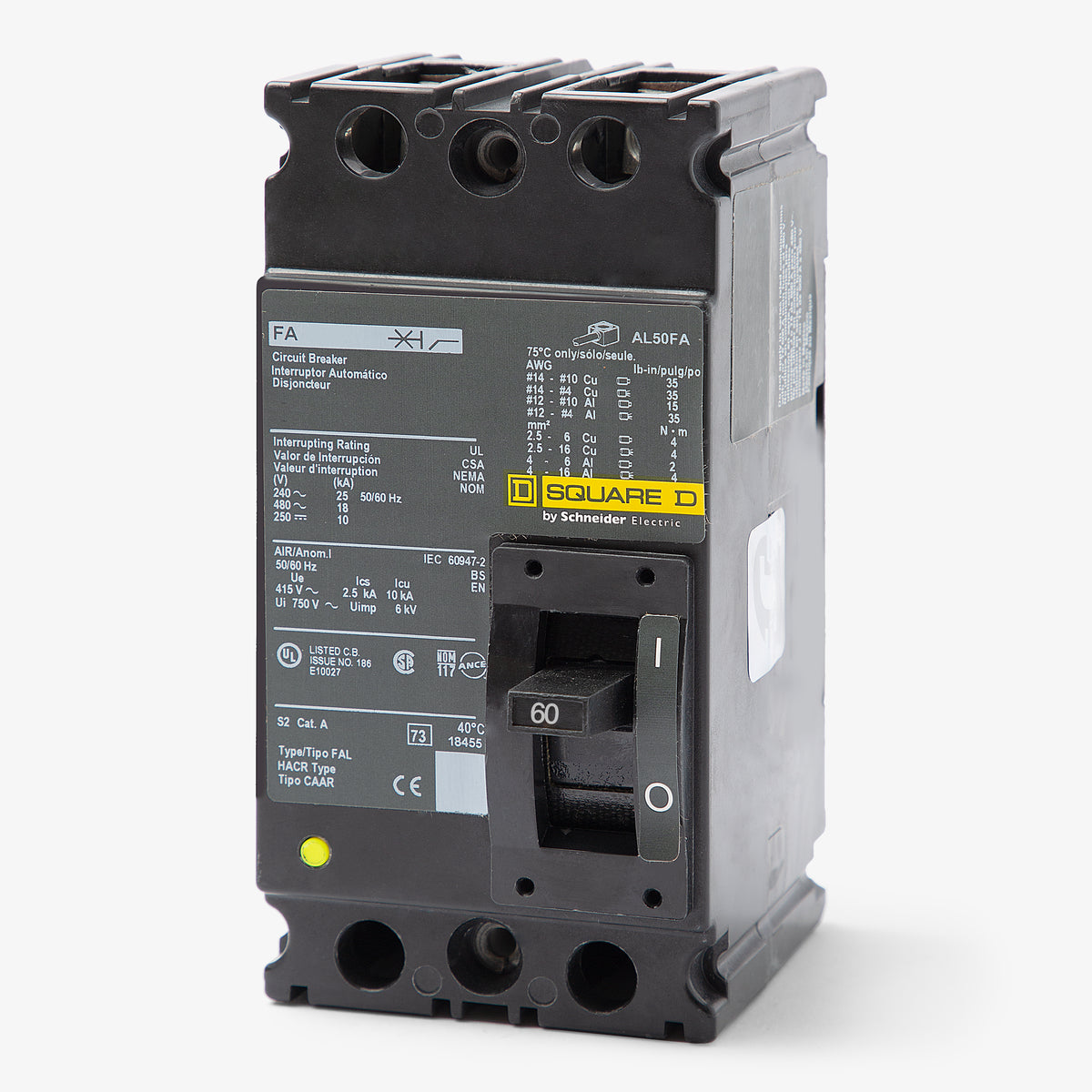

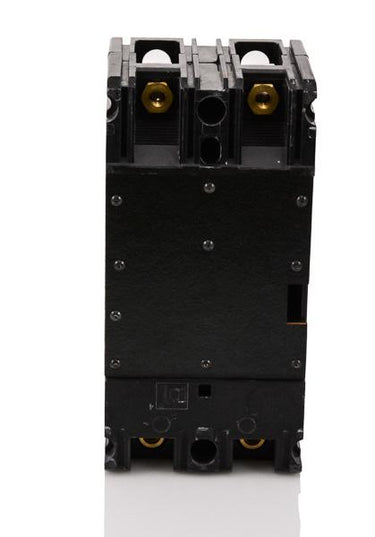

Square D FAL24060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Square D
FAL24060
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL24060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL24060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL24060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL24060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL24060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL24060-R |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Rated for 60 amps, the FAL24060 molded case circuit breaker belongs to Square D's trusted F-Frame series. It provides essential long-time and instantaneous (LI) protection for commercial and industrial electrical distribution networks. Designed with a unit mount configuration, it installs into standard Square D enclosures, panelboards, and switchboards. As a discontinued legacy model, it is replaced by the PowerPact H-Frame HDL26060. This breaker handles up to 18 kAIC at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL24060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panels and enclosures accept the FAL24060?
The FAL24060 is a unit-mount (feed-thru) breaker. It mounts directly to a backpan in compatible Square D enclosures, switchboards, and industrial panelboards. It is not a plug-on or bolt-on breaker for standard QO or I-Line lighting panels.
Is the FAL24060 still manufactured, or is there a modern replacement?
The FAL series is a legacy F-frame breaker that has reached its end of commercialization. Schneider Electric recommends the PowerPact B-frame, such as the BDL26060, as the modern replacement. Note that retrofitting may require mounting modifications.
Can the FAL24060 be reverse fed?
Yes. Standard thermal-magnetic breakers without Line and Load markings on the case, like the FAL24060, are suitable for reverse feeding in backfeed applications.

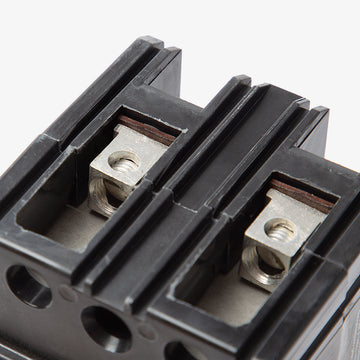

What wire sizes and materials are permitted for the FAL24060 lugs?
The standard lugs accept 14 to 1/0 AWG copper wire, or 12 to 1/0 AWG aluminum wire. Always torque the lugs to the manufacturer specifications printed on the breaker label.
Does the FAL24060 have adjustable trip settings?
No. This breaker features fixed thermal and fixed magnetic trip functions. It does not have adjustable dials to modify the long-time or instantaneous trip curves.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the breaker provides Long-Time (thermal overload) and Instantaneous (magnetic short-circuit) protection. This is the standard protection profile for general-purpose thermal-magnetic breakers.
