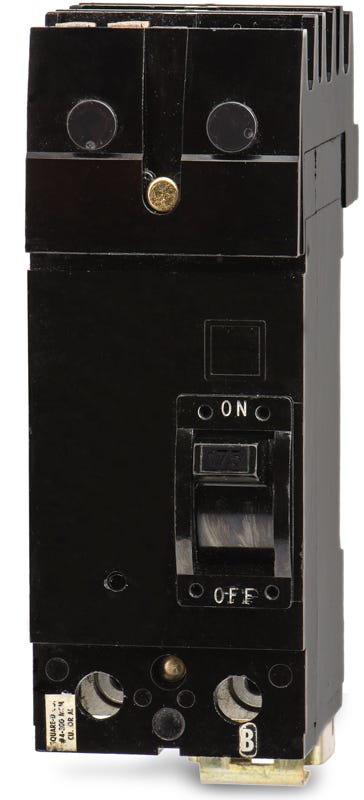

Square D Q221175BC Molded Case Circuit Breaker
- 175A
- 2 Pole
- I-Line
Square D
Q221175BC
Molded Case Circuit Breaker
Brand
Square D
SKU
Q221175BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q221175BC - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
150A 2 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power distribution, the Square D Q221175BC provides 175 amps of thermal-magnetic protection. Designed for Square D I-Line panelboards, this MCCB allows for straightforward installation in existing enclosures. It supports aging infrastructure and is replaced by the QBA221754. Delivering a 10 kAIC capacity at 120/240V, it features a factory-configured BC phase connection. The unit is HACR rated and includes the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q221175BC-R |
| Series | Q2 |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | I-Line Phase Connection BC (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
4 answersHow does the I-Line connection on the Q221175BC work?
The breaker features plug-on jaws on the line side that clamp directly onto the I-Line panelboard bus assembly. The load side utilizes standard mechanical lugs for wire termination.
What does the BC suffix mean in the Q221175BC catalog number?
The BC suffix indicates the factory-configured phase connection. This 2-pole breaker is designed to connect specifically to the B and C phases of a 3-phase I-Line bus.
What is the active replacement for the legacy Q221175BC?
The Q2 frame is a legacy series that has been superseded by the PowerPact Q-frame. The direct modern equivalent for a 175A, 2-pole, BC-phase I-Line breaker is catalog number QBA221754.
What type of protection does the LI trip function provide?
The LI designation stands for Long-Time and Instantaneous trip functions. The thermal Long-Time element protects against sustained overloads, while the magnetic Instantaneous element provides immediate tripping during short circuits.
