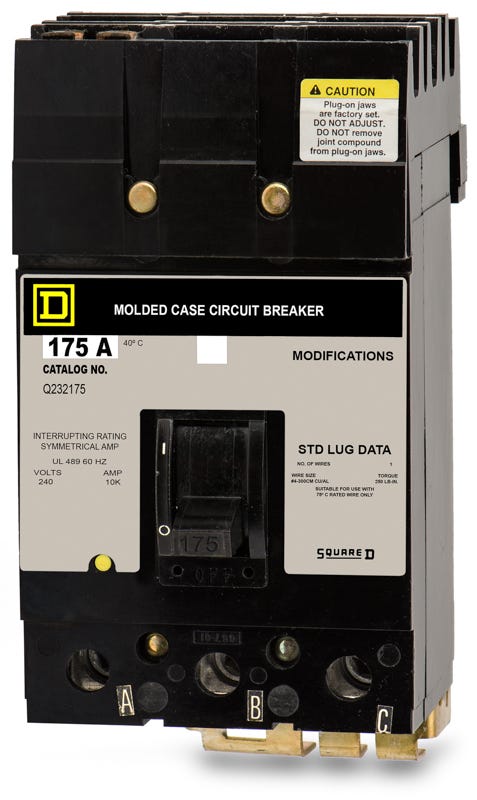

Square D Q232175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
Q232175
Molded Case Circuit Breaker
Brand
Square D
SKU
Q232175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q232175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D Q232175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q232175-R |
| Series | Q2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Quantity
Square D Q232175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q232175-R |
| Series | Q2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
200A 3 Pole Molded Case Circuit Breaker

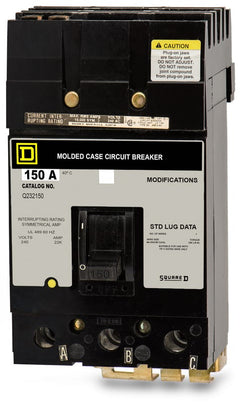

150A 3 Pole Molded Case Circuit Breaker

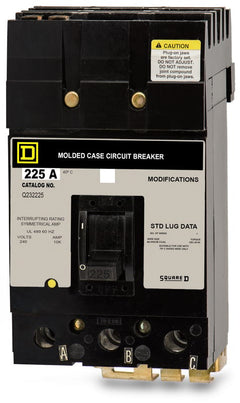

225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D Q232175 is a 3-pole, 175A molded case circuit breaker. It provides long-time and instantaneous (LI) trip functions for robust circuit protection. Designed to install into Square D I-Line panelboards, this Q-frame breaker utilizes a plug-on mounting style for secure connections. For modern upgrades or replacements, this legacy unit is superseded by the PowerPact QBA32175.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q232175-R |
| Series | Q2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Q232175 circuit breaker?
The Q232175 is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line plug-on phase connection for secure mounting in commercial and industrial distribution systems.
Is the Square D Q232175 still manufactured, or is there a direct replacement?
The Q232175 is a legacy Q-Frame circuit breaker that has been discontinued by Schneider Electric. For modern upgrades or direct replacements, it is superseded by the PowerPact Q-Frame series, specifically catalog number QBA32175.
What wire sizes and materials are accepted by the lugs on the Q232175?
The terminal lugs on this breaker accept both copper and aluminum conductors, accommodating wire gauges from 4 AWG up to 300 kcmil.
What are the physical dimensions of the Q232175 circuit breaker?
This Q-Frame breaker measures approximately 7.88 inches in height, 4.5 inches in width, and 4.31 inches in depth. Verifying these dimensions is critical when replacing breakers in legacy equipment.
Does the Q232175 feature a visual trip indicator?
Yes, this breaker includes a Visi-Trip indicator. This feature provides a clear visual confirmation when the breaker has tripped, allowing maintenance personnel to quickly identify faults in the panelboard.
How does the thermal magnetic trip unit function on the Q232175?
The fixed thermal magnetic trip unit provides long-time protection against sustained overloads and instantaneous protection against short circuits. Both the thermal and magnetic trip elements are fixed and non-adjustable.
Can I install the Q232175 in a standard QO or Homeline load center?
No. The Q232175 utilizes an I-Line plug-on mounting style and will not fit in residential QO or Homeline load centers. It is strictly intended for commercial I-Line distribution equipment.
