Square D FAL26030 - 30A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU FAL26030
5.0
Rated 5.0 out of 5 stars
35 Reviews
Square D FAL26030 2 Pole Circuit Breaker
Free Shipping Over $99
Square D FAL26030 2 Pole Circuit Breaker

Square D FAL26030 - 30A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU FAL26030
5.0
Rated 5.0 out of 5 stars
35 Reviews
Select Item Condition
Earn 275 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D FAL26030 2 Pole Circuit Breaker

Square D FAL26030 - 30A 2 Pole Molded Case Circuit Breaker

Re-Certified

$275.88 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

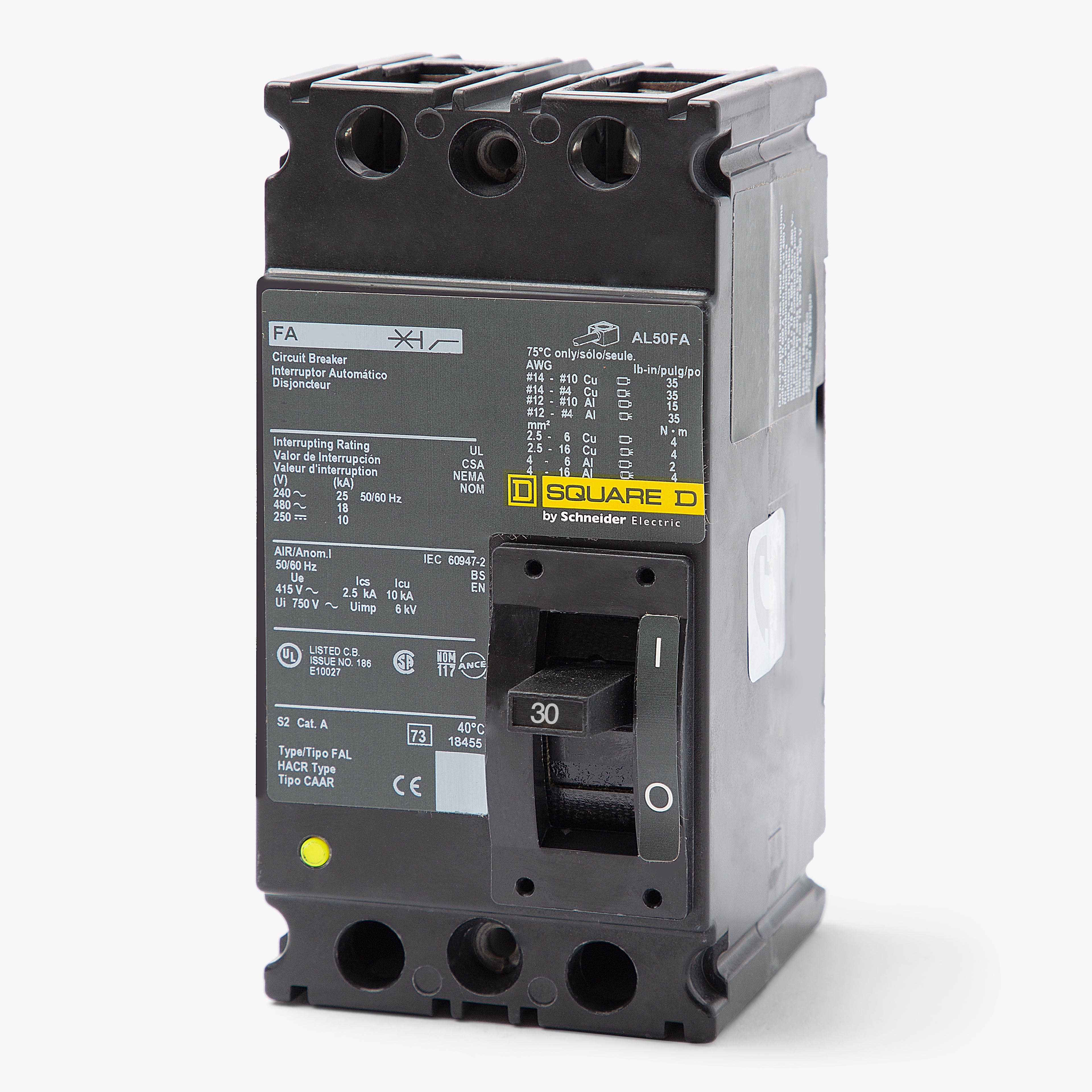

Built for industrial power distribution, the Square D FAL26030 is a 2-pole, 30A molded case circuit breaker. It features fixed thermal-magnetic trip elements to deliver long-time and instantaneous (LI) protection. This F-Frame breaker installs into Square D enclosures and control panels via standard lugs. Though replaced by the PowerPacT HGL26030, it remains an ideal exact-match replacement. It is rated 18 kAIC at 480VAC and is HACR certified.

Specifications

Brand Square D
Series FAL
Part Number FAL26030-R
Amperage 30A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 2
Phase 1
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Enclosures, Switchboards, Control Panels
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-4 AWG (Cu), 12-4 AWG (Al)
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Lugs
Standards CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Common Trip
