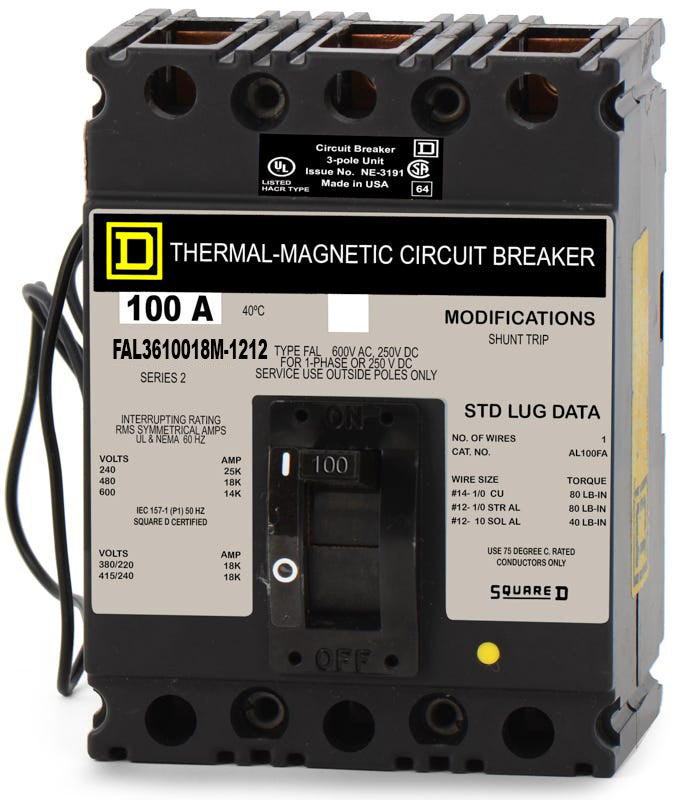

Square D FAL3610018M-1212 - 100A 3 Pole Motor Circuit Protector

Brand Square D
SKU FAL3610018M-1212
5.0
Rated 5.0 out of 5 stars
35 Reviews
Free Shipping Over $99

Square D FAL3610018M-1212 - 100A 3 Pole Motor Circuit Protector

Brand Square D
SKU FAL3610018M-1212
5.0
Rated 5.0 out of 5 stars
35 Reviews
Select Item Condition
Earn 3240 SuperPoints

Quantity

Reach out to verify stock
Inquire about this product
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D FAL3610018M-1212 - 100A 3 Pole Motor Circuit Protector

New

$3240.03 Low stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed for complex industrial systems, the Square D FAL3610018M-1212 combines robust short-circuit defense with integrated status signaling. This 100A, 3-pole motor circuit protector includes a factory-installed 1A/1B auxiliary switch for remote monitoring. It mounts into Square D motor control centers and coordinates with external starters. When replacing this legacy F-Frame unit, the HJL36100M73 is the recommended substitute (requires S29450 aux switch). It features a 300-1100A trip range.

Specifications

Brand Square D
Series FAL
Part Number FAL3610018M-1212
Amperage 100A
Amperage Range 300-1100A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Motor Control Centers, Motor Starters
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Line and Load Lugs Included, Auxiliary Switch (Factory Installed)
Standards UL 489, CSA C22.2 No. 5, NEMA AB 1
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, Visual Trip Indicator
