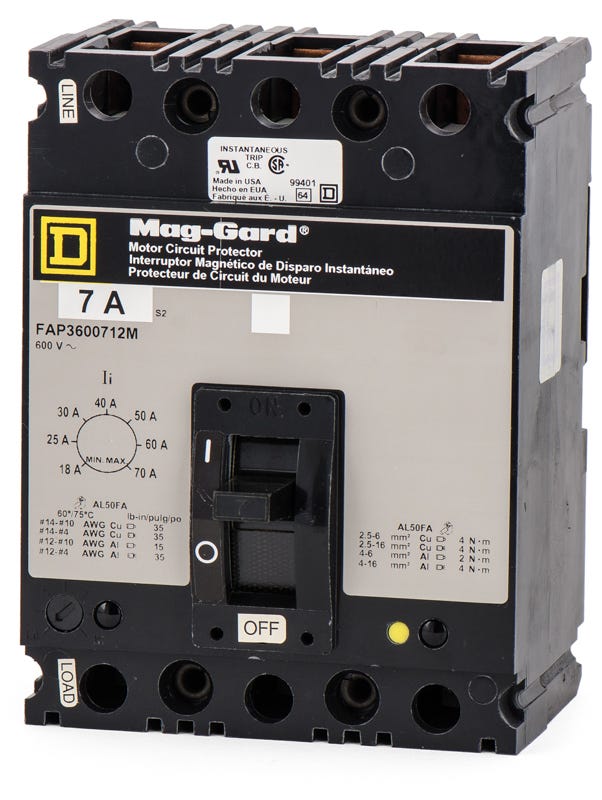

Square D FAP36007-12M - 7A 3 Pole Motor Circuit Protector

Brand Square D
SKU FAP36007-12M
Square D FAP36007-12M 3 Pole Circuit Breaker
Free Shipping Over $99
Square D FAP36007-12M 3 Pole Circuit Breaker

Square D FAP36007-12M - 7A 3 Pole Motor Circuit Protector

Brand Square D
SKU FAP36007-12M
Select Item Condition
Earn 1436 SuperPoints

Quantity

Reach out to verify stock
Inquire about this product
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D FAP36007-12M 3 Pole Circuit Breaker

Square D FAP36007-12M - 7A 3 Pole Motor Circuit Protector

New

$1436.21 Low stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed specifically for motor branch circuits, this 7A instantaneous-only protector provides an 18-70A adjustable magnetic trip. This allows precise coordination with motor starters to prevent nuisance tripping during high inrush currents. The robust bolt-on design installs into Square D motor control centers, IEM panelboards, and combination starters. Facility managers maintaining older equipment can rely on this F-frame unit, or look to the HJP36030M71 for modern replacements.

Specifications

Brand Square D
Series FA
Part Number FAP36007-12M
Amperage 7A
Amperage Range 18-70A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Motor Control Centers, Motor Starters, IEM Panelboards
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-4 AWG (Cu/Al)
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Motor Circuit Protector, Mag-Gard
