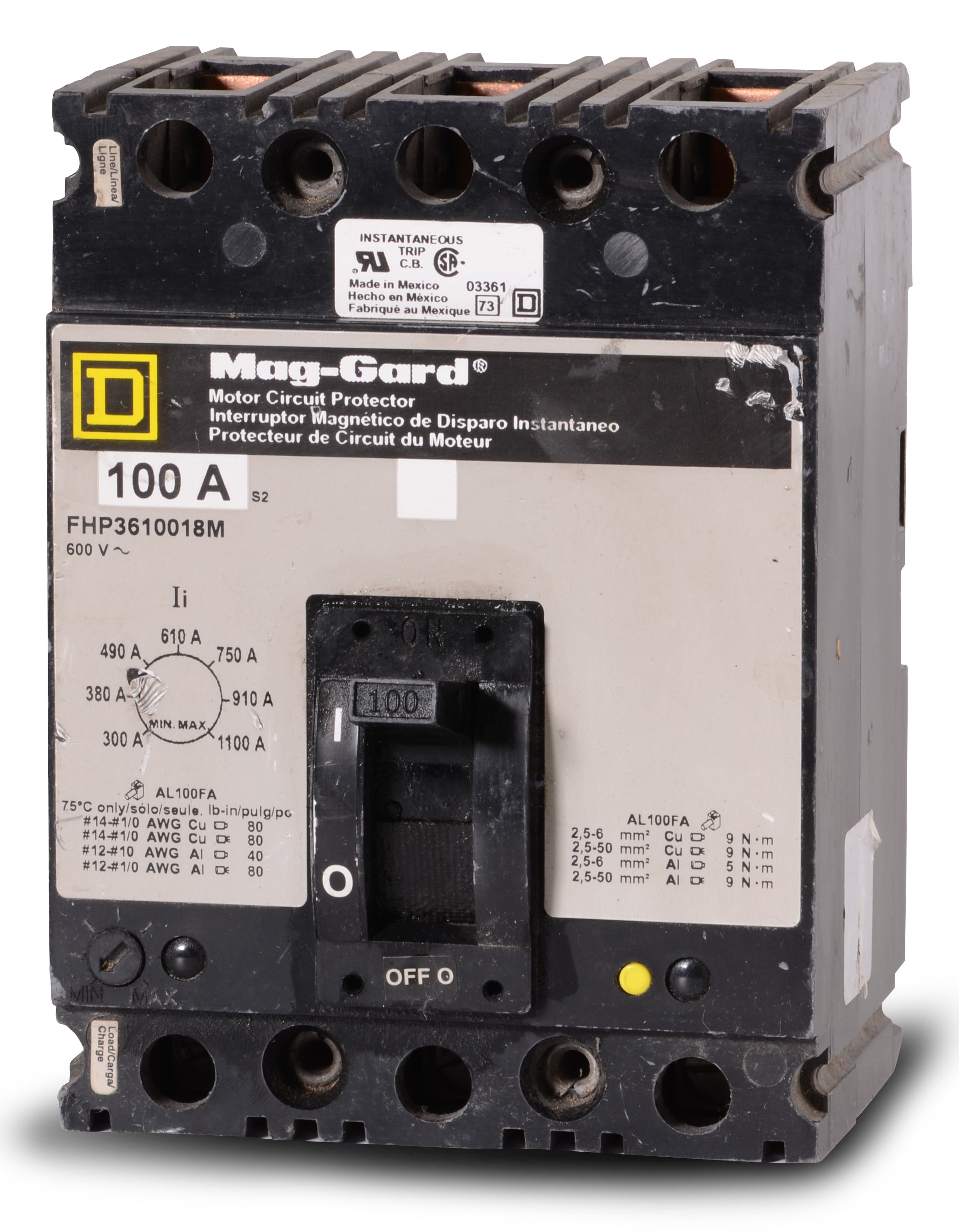

Square D FHP3610018M - 100A 3 Pole Motor Circuit Protector

Re-Certified

$1095.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the legacy F-Frame series, this 100-amp motor circuit protector is designed specifically for short-circuit defense in industrial environments. It installs easily into Square D motor control centers and serves as a reliable replacement for FAL3610018M or FHL3610018M units. While replaced by the HJL36100M73 in modern catalogs, this bolt-on device remains essential for maintaining older systems. Users can tune the magnetic trip from 300 to 1100 amps to match specific motor profiles.

Specifications

Brand Square D
Series FHP
Amperage 100A
Amperage Range 300-1100A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Square D Motor Control Centers, Combination Starters
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CSA, UL
Temp Rating 40C
