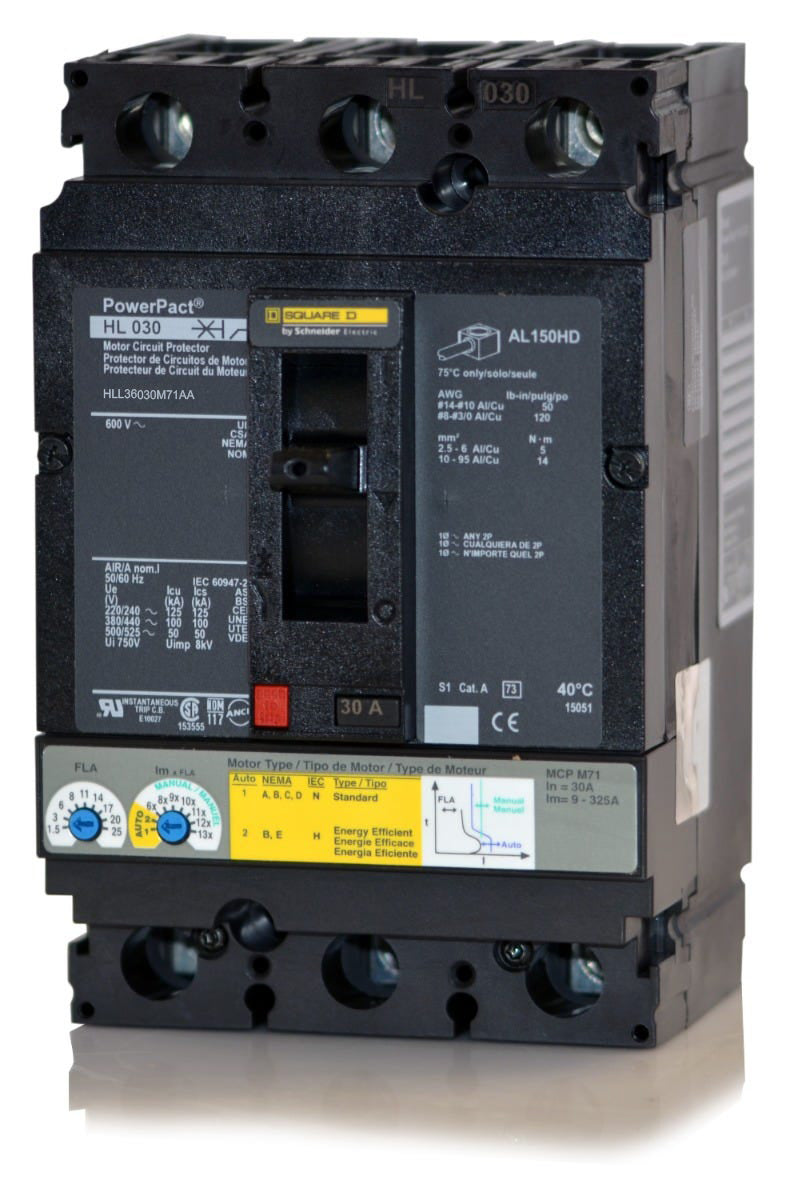

Square D HLL36030M71AA - 30A 3 Pole Motor Circuit Protector

Brand Square D
SKU HLL36030M71AA
Free Shipping Over $99

Square D HLL36030M71AA - 30A 3 Pole Motor Circuit Protector

Brand Square D
SKU HLL36030M71AA
Select Item Condition
Earn 1337 SuperPoints

Quantity

Reach out to verify stock
Inquire about this product
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D HLL36030M71AA - 30A 3 Pole Motor Circuit Protector

New

$1337.74 Low stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Designed for advanced signaling, this 30A motor circuit protector includes a factory-installed 1A/1B auxiliary switch for seamless control panel integration. It delivers instantaneous magnetic-only trip protection, safeguarding motor branch circuits against short circuits. This unit-mount device features standard lugs and serves as a drop-in replacement for legacy FHL36030M protectors. It provides a powerful 100 kAIC rating at 480VAC, ensuring robust performance in industrial motor starters.

Specifications

Brand Square D
Series HLL
Part Number HLL36030M71AA
Amperage 30A
Amperage Range 9-325A
Voltage 240VAC, 480VAC, 600VAC, 250VDC, 500VDC
Poles 3
Phase 3
AIC Rating 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Motor Starters, Motor Control Centers, Control Panels
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14 AWG - 3/0 AWG (Al/Cu)
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment
Accessories Auxiliary Switch (Factory Installed), Line and Load Lugs Included
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, NOM, UL, UKCA
Temp Rating -25C to 70C
Construction Features Motor Circuit Protector, Current Limiting, 80% Rated, Reverse Feed, Visual Trip Indicator, Trip-Free Mechanism
