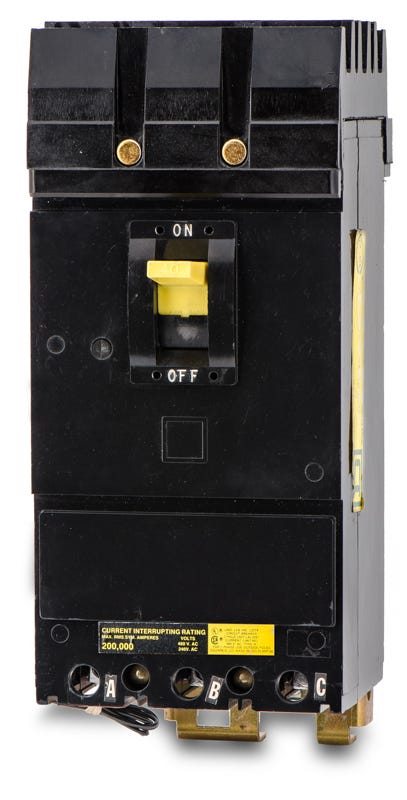

Square D IF34040-1021 - 40A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU IF34040-1021
Square D IF34040-1021 3 Pole Circuit Breaker
Free Shipping Over $99

Square D IF34040-1021 - 40A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU IF34040-1021
Select Item Condition
Earn 485 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D IF34040-1021 3 Pole Circuit Breaker

Square D IF34040-1021 - 40A 3 Pole Molded Case Circuit Breaker

Re-Certified

$485.36 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for heavy-duty industrial environments, this 40A, 3-pole current-limiting MCCB provides reliable thermal-magnetic protection. It includes a built-in 120VAC shunt trip, allowing for remote circuit interruption when required. This breaker mounts into Square D I-Line panelboards. If a modern equivalent is needed, it can be replaced by the HRA36040 along with the S29386 shunt trip accessory. With a massive 200 kAIC interrupt rating at 480VAC, it restricts peak fault currents effectively.

Specifications

Brand Square D
Series IF
Part Number IF34040-1021-R
Amperage 40A
Voltage 240VAC, 480VAC
Poles 3
Phase 3
AIC Rating 200kA @ 240VAC, 200kA @ 480VAC
Mounting Style I-Line
Terminal Type Lugs
For Use With Square D I-Line Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Auxiliary Switch, Alarm Switch, Undervoltage Release
Accessories Shunt Trip (120VAC)
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features Current Limiting, HACR Rated, Common Trip, Trip-Free Mechanism
Special Features Current Limiting
