Square D MG24543 - 32A 3 Pole Miniature Circuit Breaker

Brand Square D
SKU MG24543

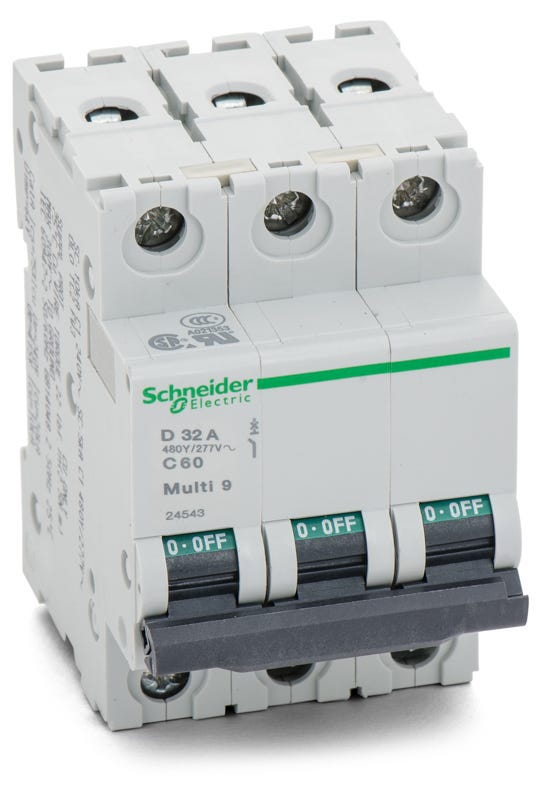

Square D MG24543 3 Pole Circuit Breaker
Free Shipping Over $99

Square D MG24543 - 32A 3 Pole Miniature Circuit Breaker

Brand Square D
SKU MG24543
Select Item Condition
Earn 128 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Square D MG24543 3 Pole Circuit Breaker

Square D MG24543 - 32A 3 Pole Miniature Circuit Breaker

New

$128.40 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Utilizing a specialized D-curve trip profile, this 32-amp Multi9 breaker is optimized for motor control and high-inrush industrial applications. It prevents nuisance tripping while maintaining strict overcurrent safety for heavy-duty electrical loads. The device mounts onto standard DIN rail configurations within OEM enclosures. Facilities looking for the current generation equivalent can use the M9F23332 as a substitute. It features positive contact indication and a trip-free mechanism.

Specifications

Brand Square D
Series C60N
Part Number MG24543
Amperage 32A
Voltage 240VAC, 480Y/277VAC, 415VAC, 440VAC
Poles 3
Phase 3
AIC Rating 10kA @ 240VAC, 5kA @ 480Y/277VAC, 10kA @ 415VAC, 6kA @ 440VAC
Mounting Style DIN Rail
Terminal Type Screw/Clamp Terminal
For Use With DIN Rail Enclosures, OEM Control Panels
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Curve D
Trip Adjustability Fixed
Wire Gauge 14-2 AWG (Cu)
Max Wire 2 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Padlock Attachment (Optional)
Standards CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077
Approval CCC, CE, CSA, IEC, UL, UR
Temp Rating -30C to 70C
Construction Features Current Limiting, Reverse Feed, Trip-Free Mechanism, RoHS Compliant
