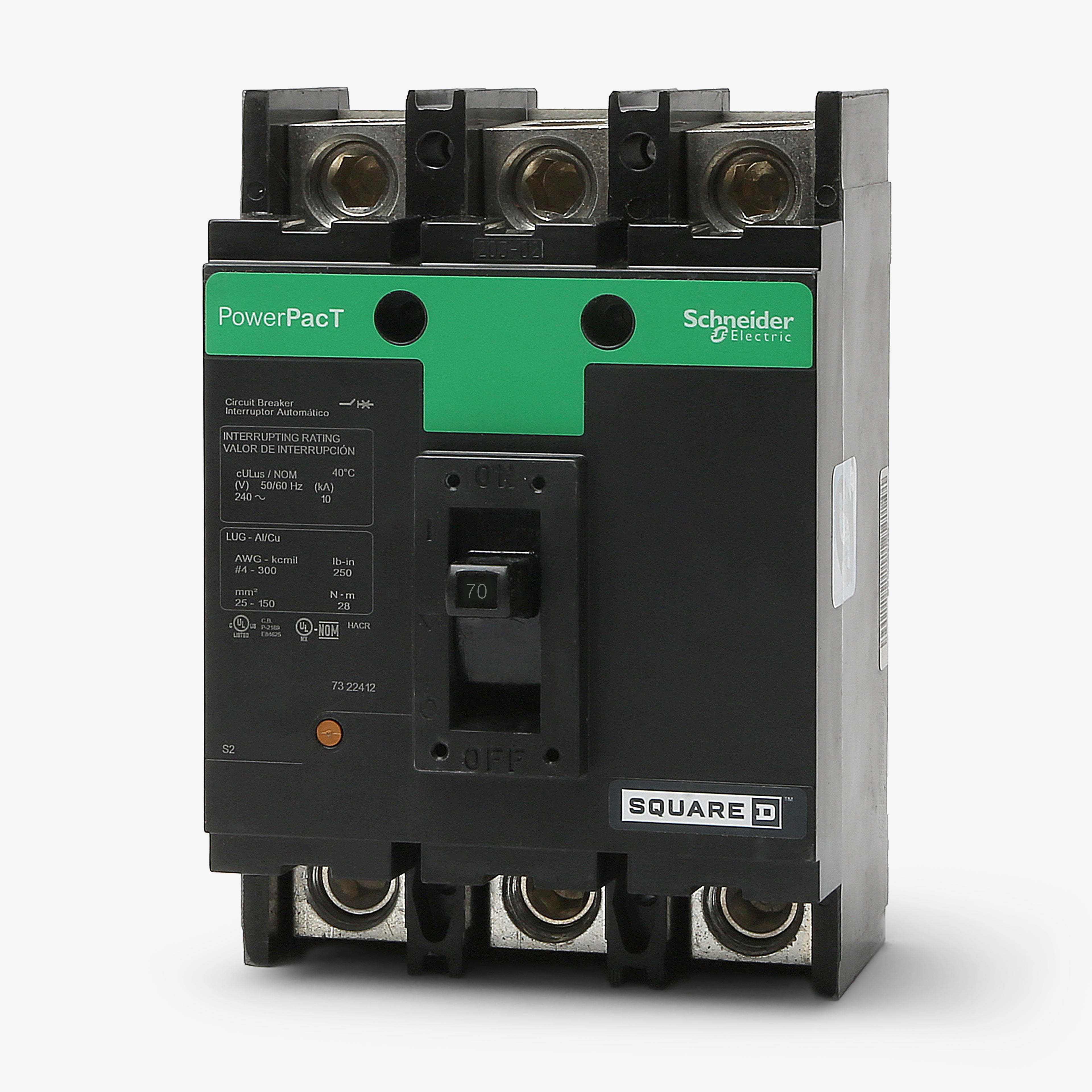

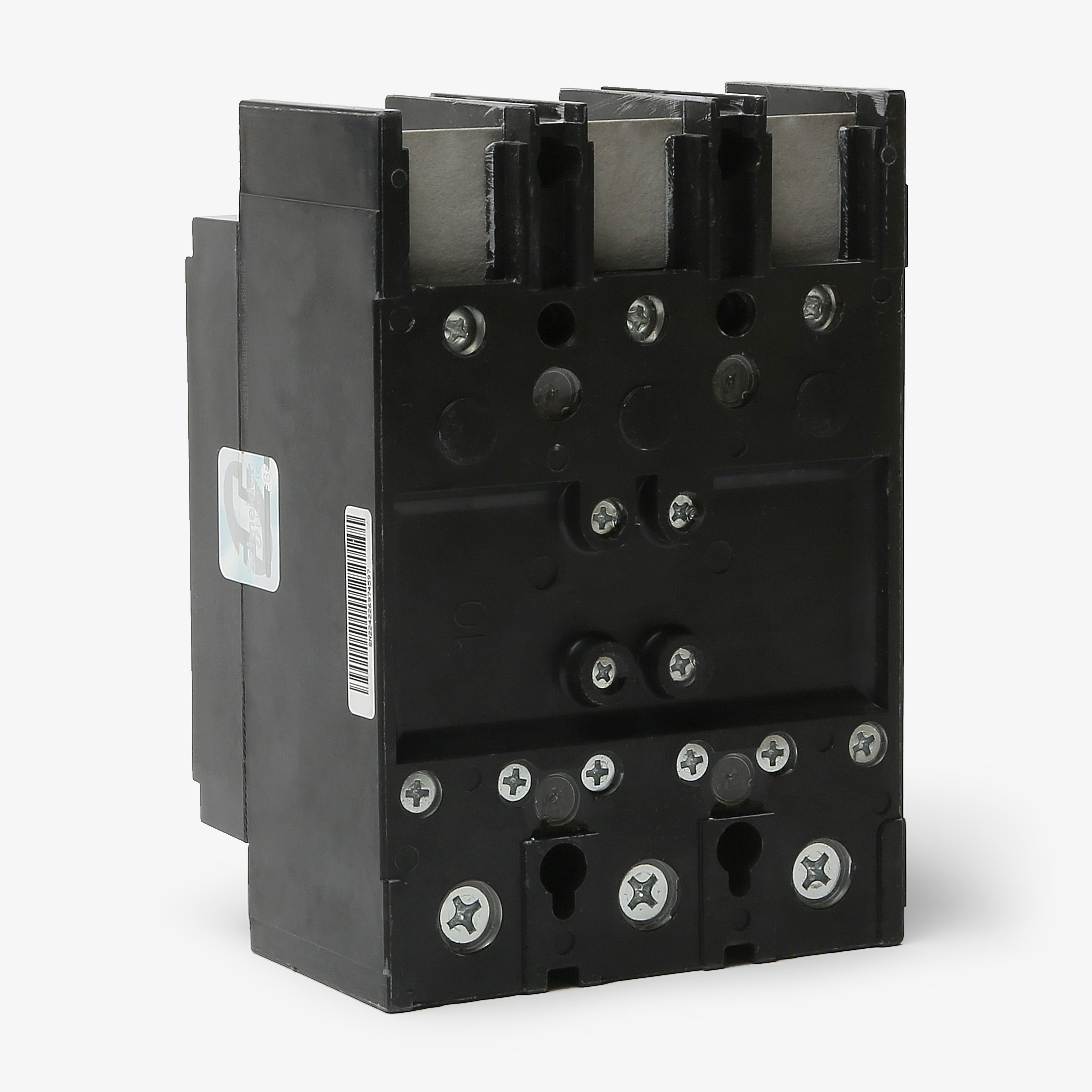

Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDL32070
5.0
Rated 5.0 out of 5 stars
2 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDL32070
5.0
Rated 5.0 out of 5 stars
2 Reviews
Select Item Condition
Earn 1174 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker

New

$1174.50 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the PowerPacT Q-Frame family, this 70A MCCB is built for commercial environments. The QDL prefix denotes a 25kA interrupting capacity at 240VAC with factory lugs. The unit-mount configuration installs into Square D NQ panelboards and individual enclosures. It serves as a functional replacement for legacy Q2L3070 breakers. Thermal-magnetic technology provides precise long-time and instantaneous (LI) protection. The HACR-rated mechanism accepts 4 AWG to 300 kcmil wiring.

Specifications

Brand Square D
Series QDL
Part Number QDL32070
Amperage 70A
Voltage 208Y/120VAC, 240VAC
Poles 3
Phase 3
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Padlock Attachment

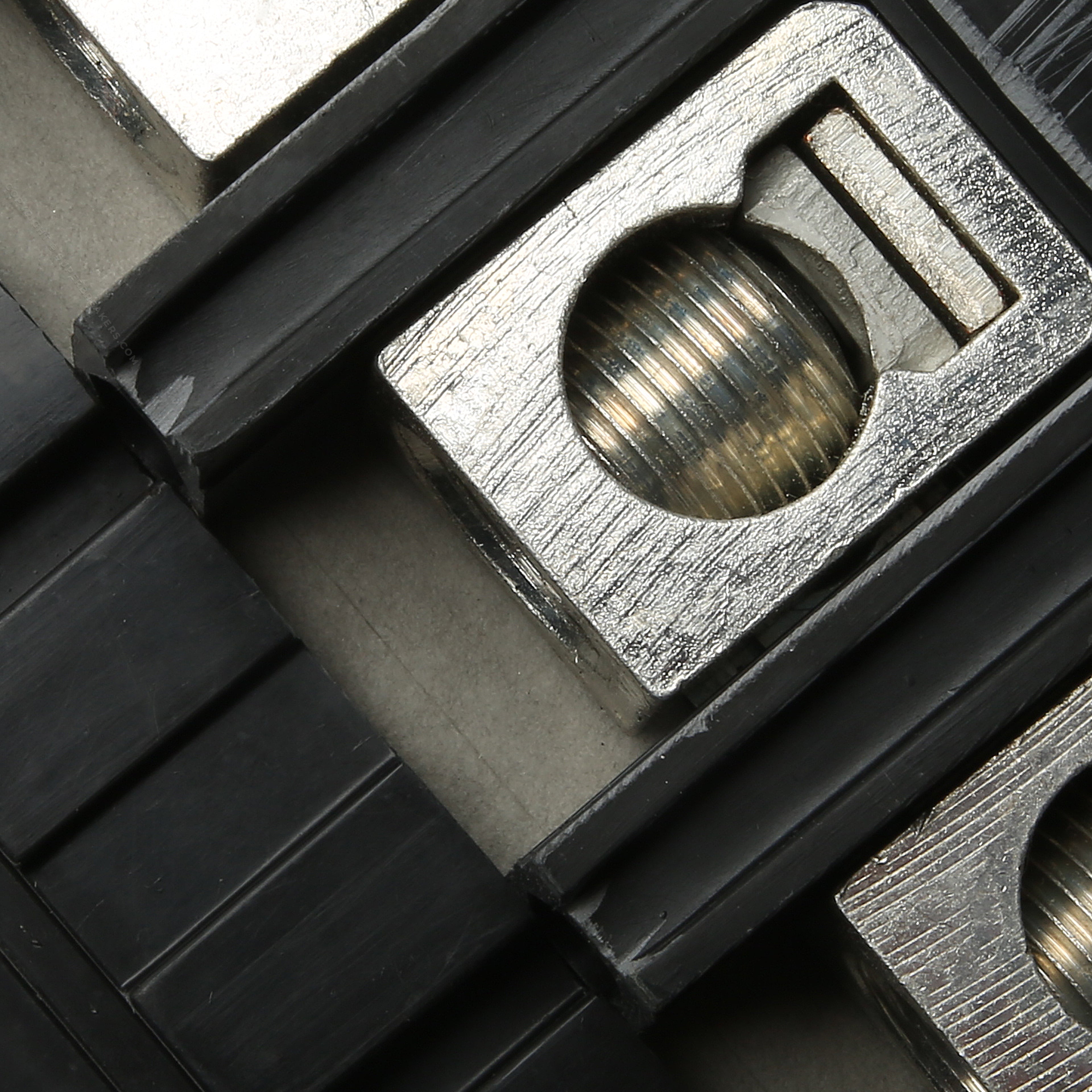

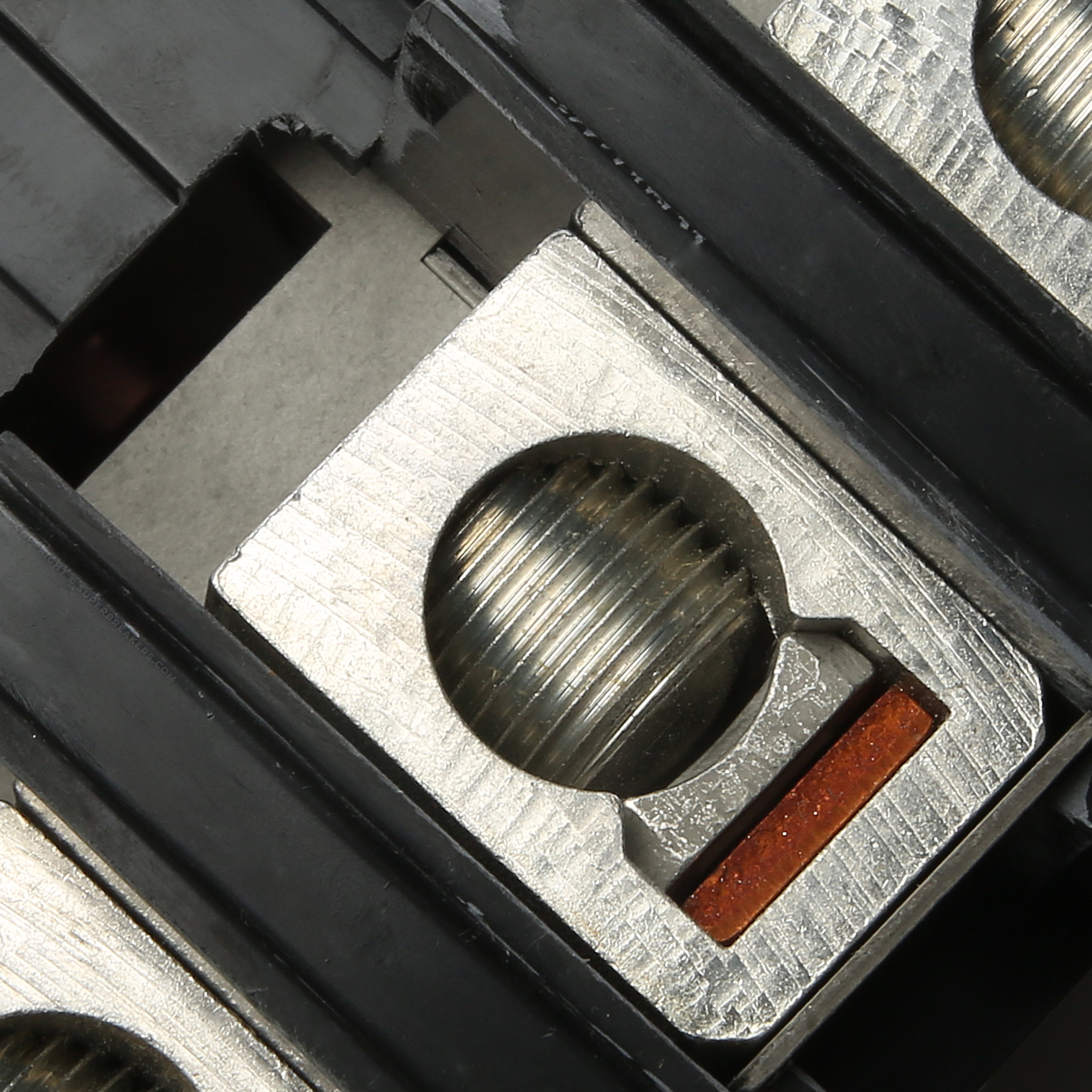

Accessories Line and Load Lugs Included
Standards CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489
Approval CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, 80% Rated, Non-Interchangeable Trip, Reverse Feed, Mercury Free, PVC Free
