Siemens BQD225 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Siemens
BQD225
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

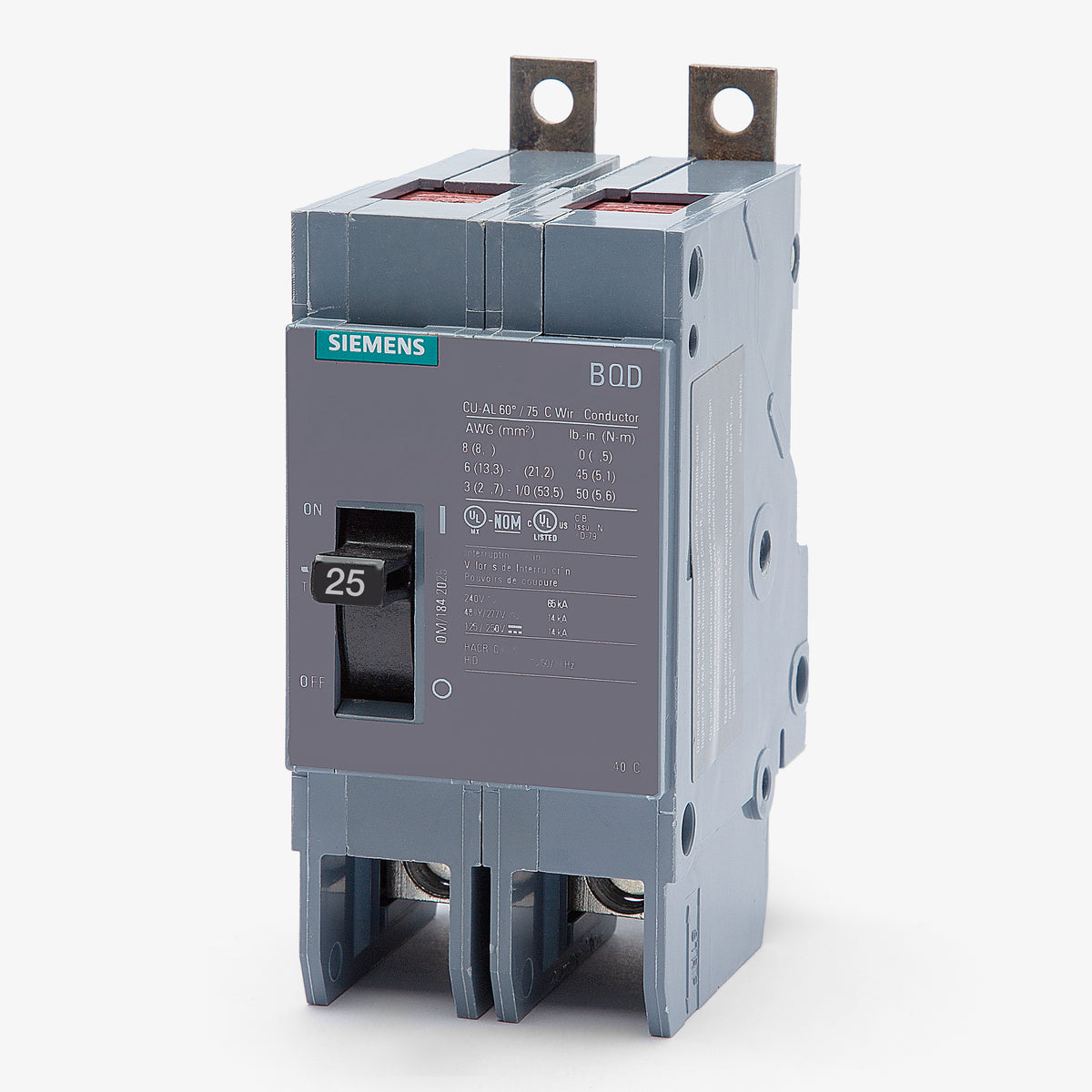

Siemens BQD225 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD225 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD225 |
| Series | BQD |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens BQD225 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD225-R |
| Series | BQD |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built to handle demanding commercial environments, this 25-amp, two-pole breaker provides precise overcurrent and short-circuit protection. It utilizes a reliable quick-make, quick-break mechanism for consistent operation. The device fastens securely into Siemens P1 through P5 panelboards, ensuring a stable connection to the bus. It includes factory-installed load lugs ready for standard wiring. With an interrupting capacity of 14kA at 480Y/277VAC, it meets rigorous industrial specifications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD225 |
| Series | BQD |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens BQD225 circuit breaker?
The BQD225 is a bolt-on breaker designed for use in Siemens P1, P2, P3, P4, and P5 commercial panelboards. It is not compatible with residential EQ or PL series load centers.
Is the Siemens BQD225 suitable for reverse feed applications?
Yes, Siemens BQD series breakers, including the BQD225, are UL listed for reverse feed applications, allowing them to be back-fed in a panelboard.
Does the BQD225 carry an HACR rating?
Yes, this breaker is HACR rated, making it suitable for overcurrent protection on heating, air conditioning, and refrigeration equipment branch circuits.
Can I add a shunt trip or auxiliary switch to the BQD225?
Yes, shunt trips, auxiliary switches, and alarm switches are available as field-installable add-on modules. These accessories mount exclusively to the left side of the BQD frame.
What is the difference between Siemens BQD and CQD circuit breakers?
While both share the same internal mechanisms and 1-inch pole width, BQD breakers are designed to bolt onto the bus of Siemens panelboards. CQD breakers are designed for DIN rail or surface mounting in control panels.
What is the difference between the BQD225 and the BQD6225?
The standard BQD225 is UL listed for use in the US and rated for 480Y/277V AC. The BQD6 series is CSA certified for use in Canada and carries a 600Y/347V AC rating.
