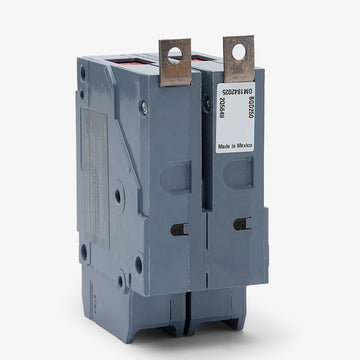

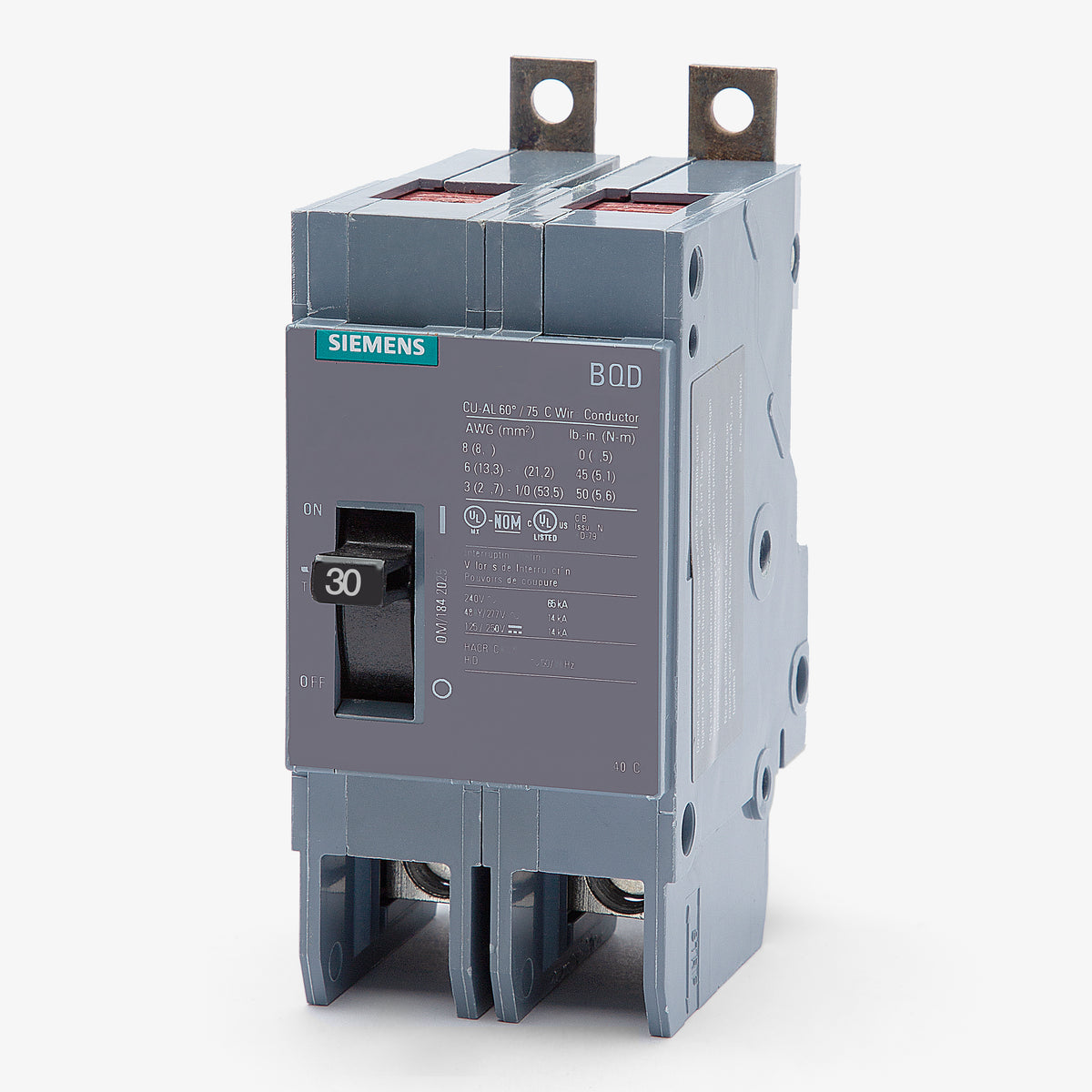

Siemens BQD230 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Siemens
BQD230
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD230 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD230 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD230 |
| Series | BQD |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Sold out
Quantity
Siemens BQD230 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD230-R |
| Series | BQD |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Part of the Sentron line, this 30A molded case circuit breaker delivers robust thermal-magnetic protection for commercial and industrial electrical systems. It installs seamlessly into Siemens P1, P2, P3, P4, and P5 panelboards using a standard bolt-on connection. Rated for 14 kAIC at 480Y/277VAC and 65 kAIC at 240VAC, the unit features a non-interchangeable trip mechanism. It is HACR and HID rated, making it suitable for air conditioning and high-intensity discharge lighting circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD230 |
| Series | BQD |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Reverse Feed |
Product FAQs
8 answersCan I install the BQD230 in a standard residential load center?
No. The BQD230 is a commercial bolt-on breaker designed strictly for Siemens P1, P2, P3, P4, and P5 panelboards. It will not fit in standard plug-on residential load centers.
Can the BQD230 be mounted on a DIN rail inside a control panel?
No. This breaker is built with a bolt-on line tab for panelboard busbars. If your application requires DIN rail mounting, you should look for the Siemens CQD series equivalent instead.
Is the Siemens BQD230 suitable for HVAC equipment?
Yes. This unit is HACR rated, which means it is officially approved for use with heating, air conditioning, and refrigeration equipment.
Can this breaker handle high intensity discharge lighting circuits?
Yes. The BQD230 carries an HID rating for 480Y/277V AC applications, indicating it has been tested to safely handle the inrush current typical of high intensity discharge lighting.
Is the BQD230 rated for 480V ungrounded delta systems?
No. The breaker is rated for 480Y/277V AC, meaning it is only approved for use on solidly grounded wye systems. It is not suitable for 3-phase ungrounded delta applications.

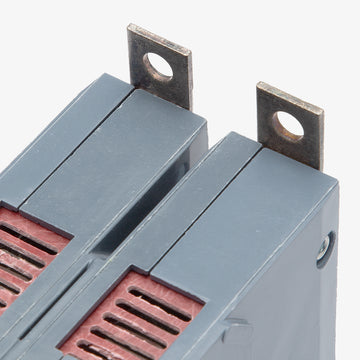

How does the line side of the BQD230 connect to the panelboard?

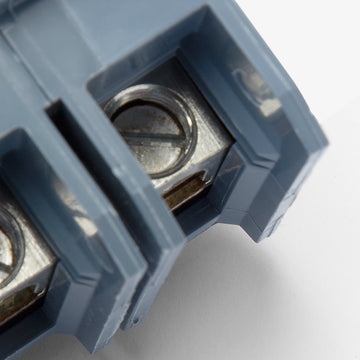

The breaker features a specialized interlocking tab that mounts directly to the panelboard busbar using a single screw. The load side utilizes standard built-in wire lugs.
Can the BQD230 be locked in the off position for maintenance work?
Yes. You can use the Siemens BQDPLD handle padlocking accessory to securely lock the breaker in the OFF position during standard lockout and tagout procedures.
What is the difference between Siemens BQD and CQD series breakers?
Both series share the same physical frame dimensions and similar electrical ratings. However, BQD breakers use a bolt-on connection for panelboards, while CQD breakers are designed specifically for DIN rail mounting.
