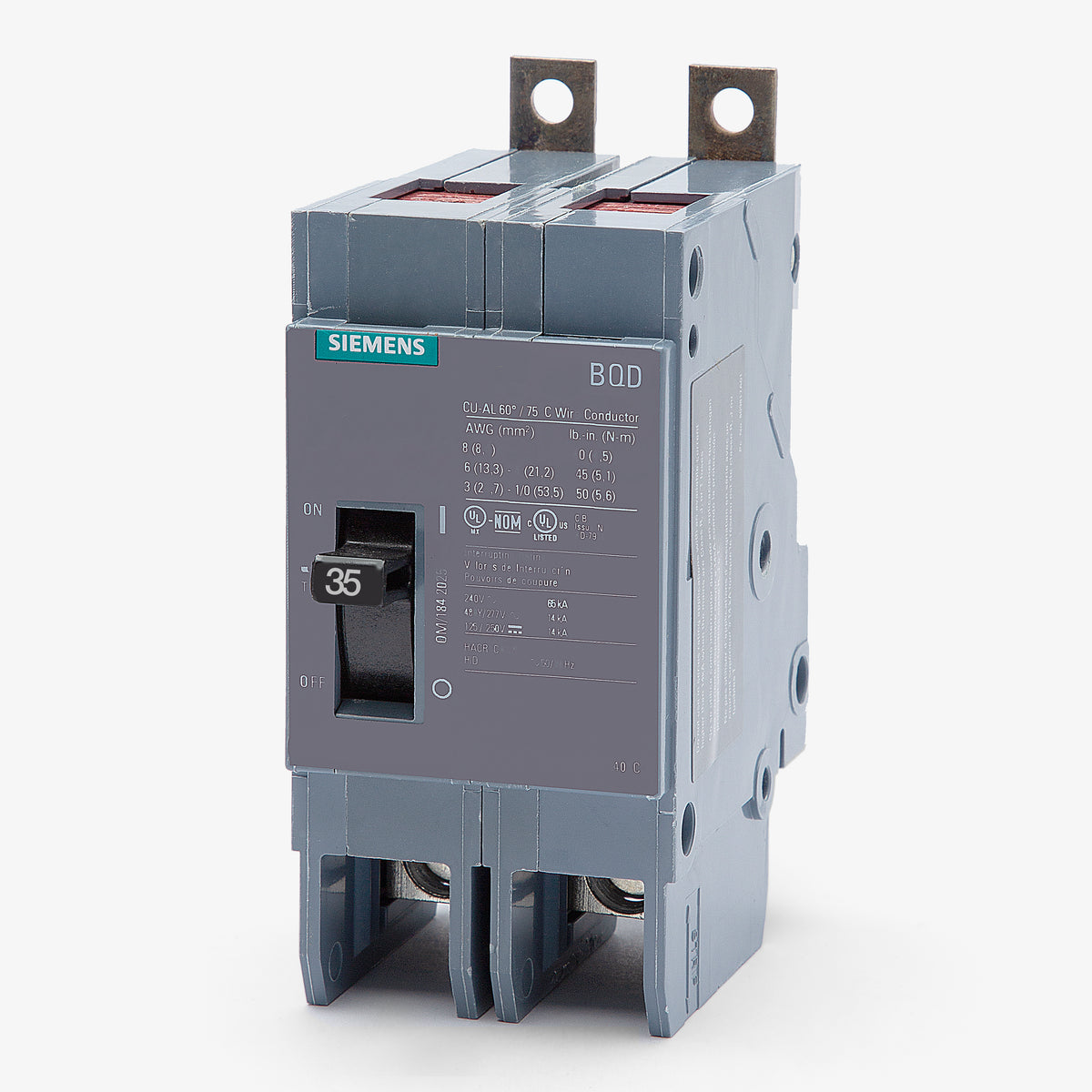

Siemens BQD235 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Siemens
BQD235
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD235
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD235 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQD235 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD235 |
| Series | BQD |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens BQD235 - 35A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQD235-R |
| Series | BQD |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial distribution, this 35A molded case breaker utilizes a quick-make, quick-break mechanism to clear electrical faults. It integrates into Siemens P1, P2, P3, P4, and P5 panelboards via a sturdy bolt-on configuration. With an interrupt capacity of 65 kAIC at 240VAC and 14 kAIC at 480Y/277VAC, it accommodates diverse facility requirements. The non-interchangeable trip unit includes HACR certification for heating and cooling equipment branch circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD235 |
| Series | BQD |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards are compatible with the Siemens BQD235 circuit breaker?
The BQD235 is designed for bolt-on installation in Siemens P1, P2, P3, P4, and P5 panelboards.
Can the BQD235 be used in DC applications?
Yes, this breaker is rated for 125/250VDC systems and provides an interrupting capacity of 14kAIC for DC applications.
Is the Siemens BQD235 HACR rated?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Is the BQD235 suitable for reverse feed applications?
Yes, Siemens BQD series circuit breakers are UL listed for reverse feed applications, allowing them to be back-fed when required by the system design.
What wire sizes are accepted by the lugs on the BQD235?
The factory-installed lugs accept 14 to 6 AWG copper (Cu) conductors and 12 to 6 AWG aluminum (Al) conductors.
How does the BQD235 mount into a panelboard?
It features a bolt-on connection type, securing directly to the busbars in compatible Siemens panelboards for a reliable, vibration-resistant connection.
What type of trip unit is equipped on the BQD235?
It features a fixed thermal-magnetic trip unit that provides both long-time (thermal) and instantaneous (magnetic) protection against overloads and short circuits.
What frame size does the BQD235 belong to?
The BQD235 is part of the Siemens BQD/CQD frame group, which features a compact 1-inch per pole width designed for commercial and industrial applications.
