ABB / General Electric THQL2115GF1 GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2115GF1
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2115GF1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

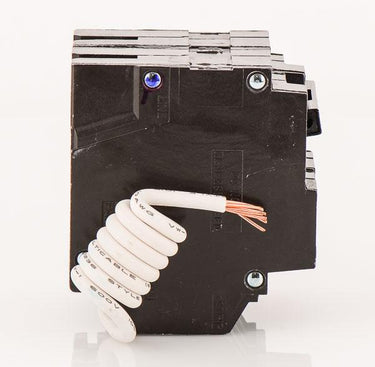

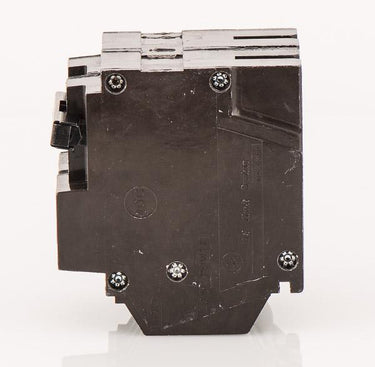

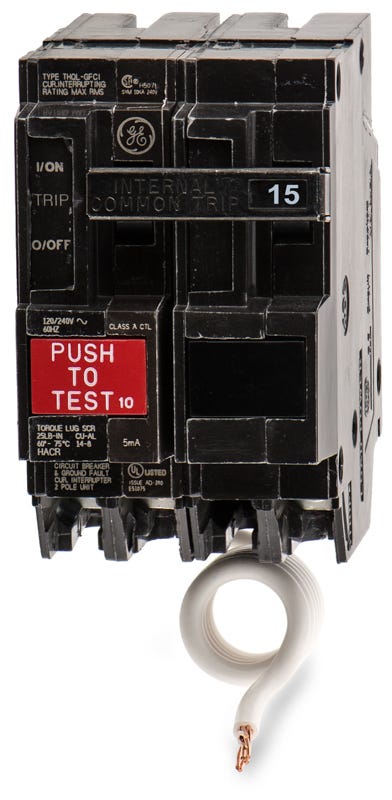

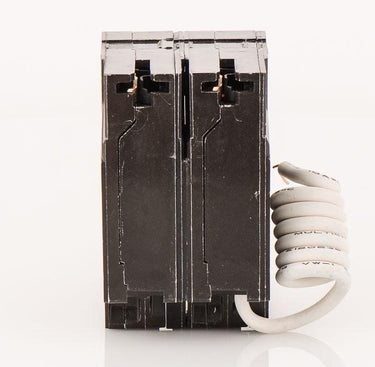

ABB / General Electric THQL2115GF1 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2125GFT
25A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2130GFT
30A GFCI Miniature Circuit Breaker
Description
Built for residential applications, this 15-amp, two-pole GFCI breaker provides Class A 5mA ground fault protection. It utilizes a standard pigtail neutral wire to ensure compliance with NEC requirements for wet or damp locations. Designed to fit into GE PowerMark Gold and ABB ReliaHome load centers. This plug-on unit is an older model that has been replaced by the self-testing THQL2115GFT. Featuring a 10kAIC rating at 120/240VAC, it includes a quick-make/quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115GF1 |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
4 answersWhich load centers are compatible with the THQL2115GF1 circuit breaker?
This plug-on breaker is designed for use in GE PowerMark Gold load centers, ABB ReliaHome load centers, and GE AQ lighting panels.
What level of ground fault protection does the THQL2115GF1 provide?
It provides Class A 5mA ground fault protection for personnel, which is required by the NEC for wet or damp locations like bathrooms, kitchens, and outdoor circuits.
How is the neutral connection made on this GFCI breaker?
The THQL2115GF1 features a pigtail neutral wire that must be connected directly to the neutral bus bar in the panel to ensure proper ground fault detection.
Is the THQL2115GF1 still the current model for GE 15A 2-pole GFCI breakers?
The THQL2115GF1 is an older model. It has been superseded by the THQL2115GFT, which includes a self-testing feature to meet updated UL 943 requirements.
