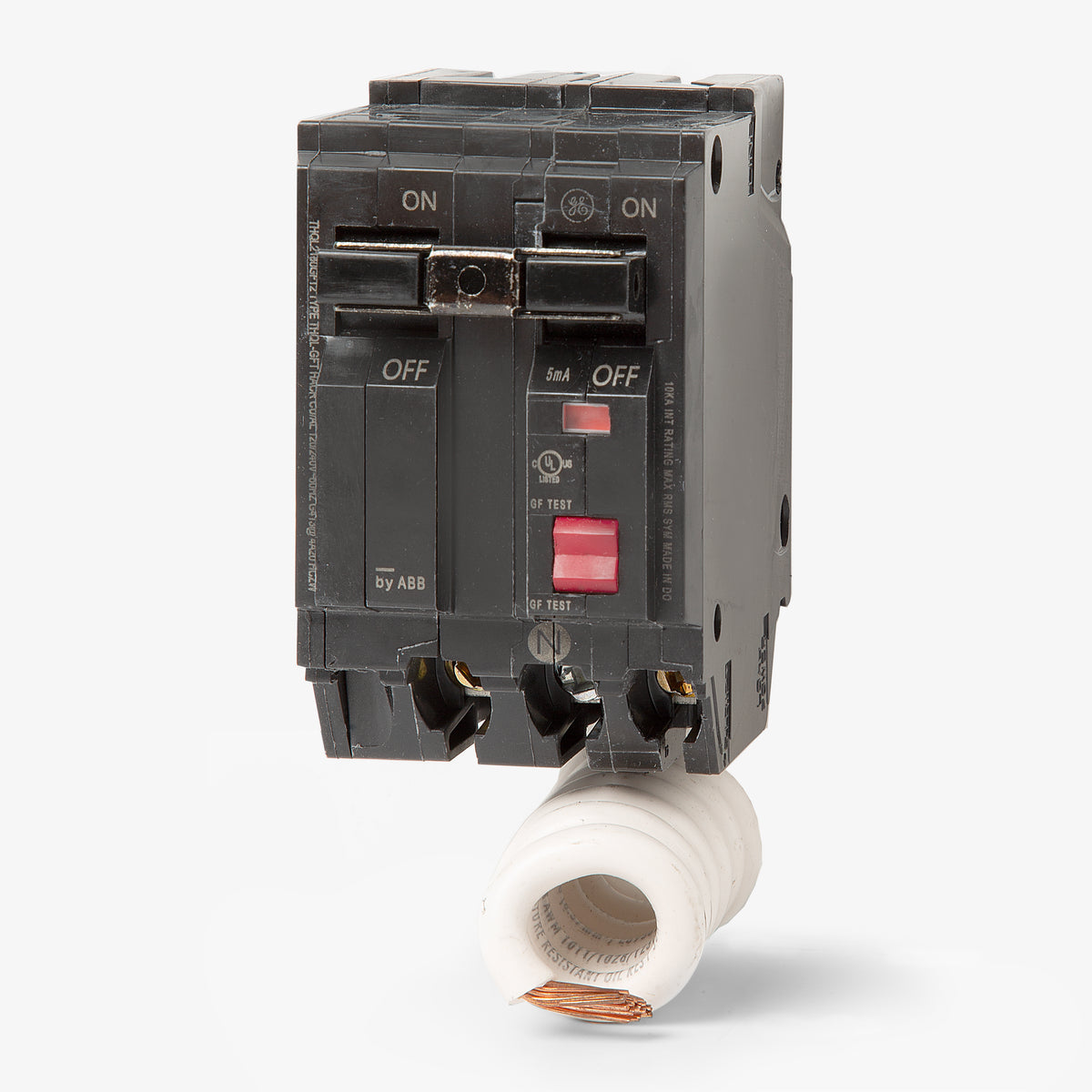

ABB / General Electric THQL2125GFT GFCI Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2125GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2125GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2125GFT - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2120GF1
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2140GF1
40A GFCI Miniature Circuit Breaker
Description
Built for specialized 25-amp residential and commercial circuits, this two-pole safety device actively monitors for ground faults with 5mA Class A sensitivity. It incorporates an automatic self-test feature to verify proper operation without manual intervention. The breaker features a traditional pigtail neutral wire and installs into GE PowerMark Gold, A-Series, and ABB ReliaHome panelboards. It acts as the manufacturer's designated upgrade for the discontinued THQL2125GF model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
6 answersWhich load centers are compatible with the THQL2125GFT breaker?
This breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, and ABB ReliaHome load centers. It requires two standard 1-inch spaces for plug-on installation.
What is the difference between the THQL2125GF and the THQL2125GFT?
The THQL2125GFT is the direct replacement for the discontinued THQL2125GF. The T suffix indicates the addition of an automatic self-test feature, which periodically verifies the ground-fault circuitry to comply with updated UL 943 standards.
What is the ground-fault trip threshold for this breaker?
The THQL2125GFT is a Class A Ground Fault Circuit Interrupter (GFCI) designed to trip when it detects a ground fault of 5mA. It provides personnel protection for specialized 25A circuits.
How is the neutral connection wired on the THQL2125GFT?

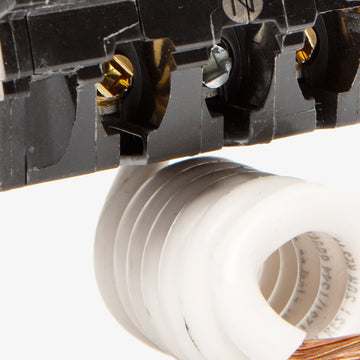

This breaker features a pigtail neutral. The coiled white pigtail wire must be connected directly to the panel neutral bus bar, while the load neutral wire connects to the designated neutral lug on the breaker itself.
Can I use this breaker for a 120/240V multi-wire branch circuit?
Yes, 2-pole GFCI breakers like the THQL2125GFT can protect 120/240V multi-wire branch circuits (shared neutral circuits). The load neutral must be routed to the breaker so it can accurately monitor current imbalances across both ungrounded conductors and the neutral.
What does the LIG trip function code indicate on this breaker?
LIG stands for Long-Time, Instantaneous, and Ground-Fault. This means the thermal-magnetic trip unit provides standard overload (Long-Time) and short-circuit (Instantaneous) protection, alongside the integrated ground-fault sensing.
