Siemens / ITE JL3B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens / ITE
JL3B100
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
JL3B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

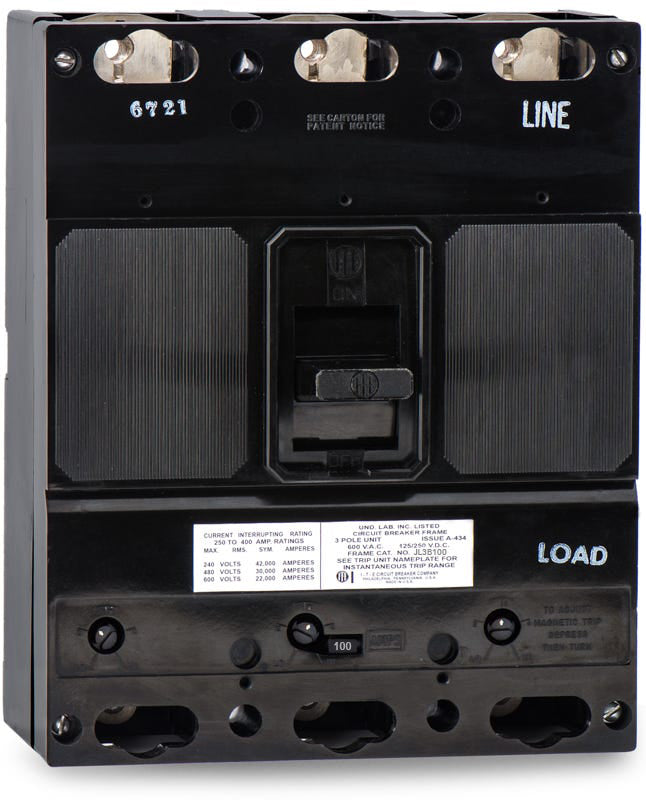

Siemens / ITE JL3B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
275A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
Description
Operating at up to 600VAC, this 100A, three-pole molded case circuit breaker is designed for heavy-duty commercial power distribution. It utilizes a proven thermal-magnetic trip mechanism to handle overloads and short circuits. This legacy component bolts into Siemens P4, P5, and classic ITE FC/S-Series panelboards. For facilities upgrading their infrastructure, the JD63B100 is the recommended replacement. It includes standard line and load lugs and supports a 35kAIC rating at 480V.Specifications
| Brand | Siemens / ITE |
|---|---|
| Series | JL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | JL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Legacy ITE FC/S-Series Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards accept the JL3B100 circuit breaker?
This bolt-on breaker installs into Siemens P4 and P5 panelboards, Siemens switchboards, and legacy ITE FC/S-Series panelboards.
What wire sizes and materials do the standard lugs support?
The terminals accommodate 4 AWG to 350 kcmil copper (Cu) or aluminum (Al) conductors.
Are the trip settings adjustable on the JL3B100?
The thermal-magnetic trip unit features fixed thermal protection for overloads and an adjustable magnetic trip for short-circuit protection.
What does the LI trip function code indicate?
The LI code stands for Long-Time and Instantaneous trip functions. This provides standard thermal protection against sustained overloads and magnetic protection against sudden short circuits.
Is there a recommended replacement for this legacy JL-frame breaker?
The JL3B100 is a legacy component. For infrastructure upgrades, the Siemens JD63B100 is often the recommended replacement, provided it matches your specific panelboard and clearance requirements.
