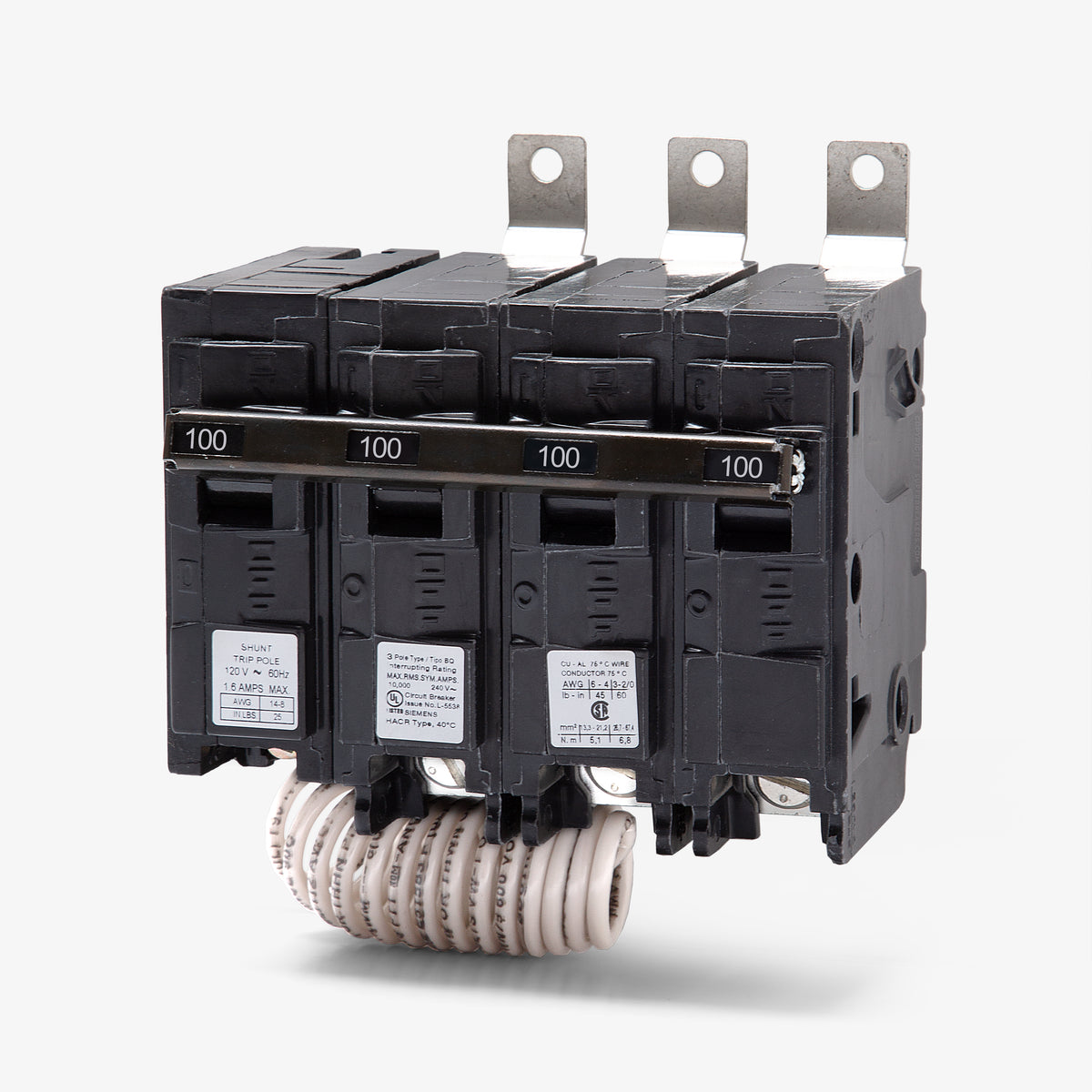

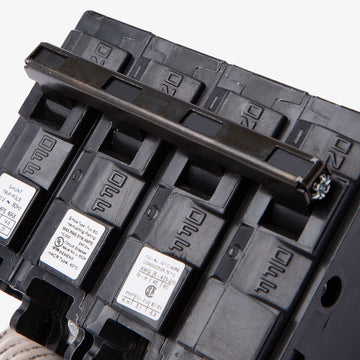

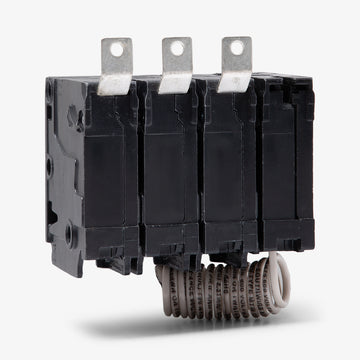

Siemens B310000S01 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
B310000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B310000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B310000S01 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens B310000S01 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B310000S01 |
| Series | BL |
| Amperage | 100A |
| Poles | 3 |

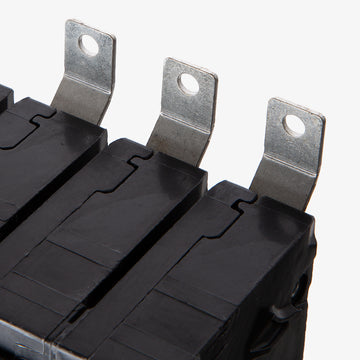

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens B310000S01 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B310000S01-R |
| Series | BL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for reliable power distribution, the Siemens B310000S01 is a 100-amp, three-pole molded case circuit breaker. It utilizes proven thermal-magnetic trip technology to safeguard commercial systems. Designed with a bolt-on mounting style, this BL series breaker integrates seamlessly into Siemens P1, P2, P3, P4, and P5 panelboards. A factory-installed 120VAC shunt trip enables remote opening of the contacts for enhanced control. Rated at 10kAIC at 240VAC, it is also HACR certified.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B310000S01-R |
| Series | BL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat does the 00S01 suffix mean on the Siemens B310000S01?

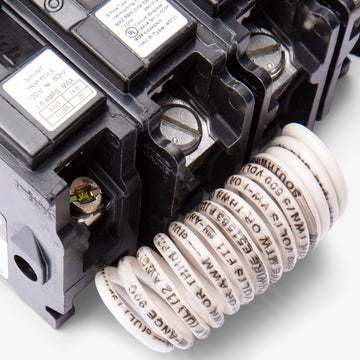

The 00S01 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely by applying a 120V control signal.
Which panelboards are compatible with the B310000S01 circuit breaker?
This BL series bolt-on breaker is designed exclusively for Siemens P1, P2, P3, P4, and P5 commercial panelboards. It will not fit in standard plug-on residential load centers.
What does the LI trip function indicate for this breaker?
The LI designation means this thermal-magnetic breaker provides Long-Time (thermal) protection against sustained overloads and Instantaneous (magnetic) protection against short circuits.
Does the B310000S01 require a separate control circuit for the shunt trip?
Yes. To utilize the factory-installed 120VAC shunt trip, you must wire a separate 120V control signal to the accessory leads to enable remote tripping.
Is the Siemens B310000S01 HACR rated?
Yes, this breaker is HACR certified, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Is it safe to install this breaker while the panelboard is energized?
No. Always de-energize the panelboard before installing or servicing bolt-on circuit breakers to prevent arc flash and electrical shock hazards. Lock out and tag out the power source prior to installation.
