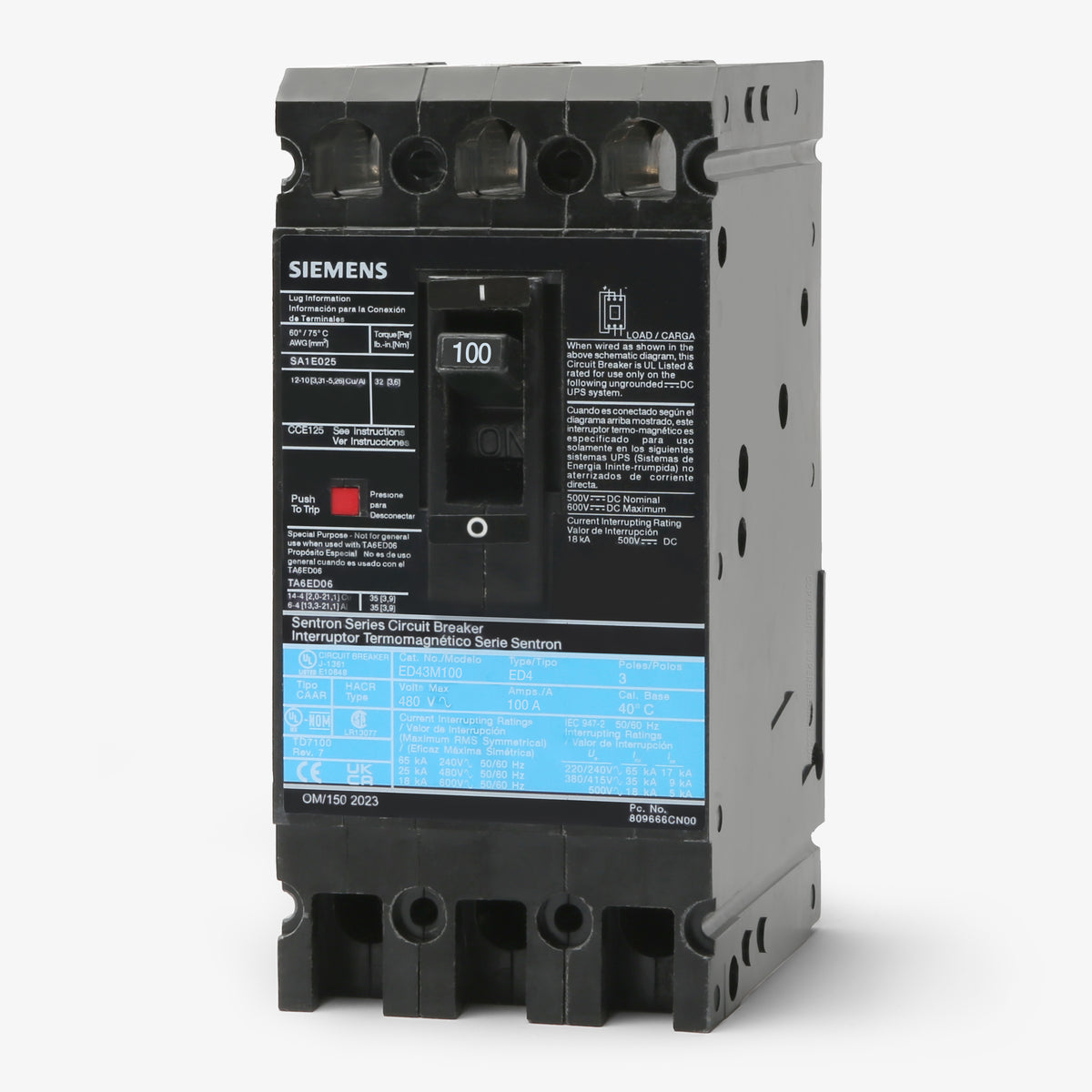

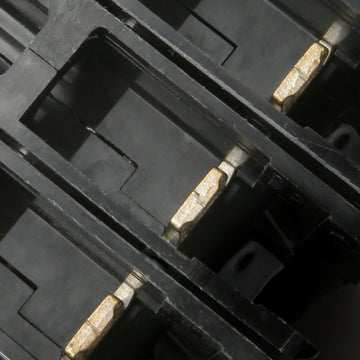

Siemens ED43M100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
ED43M100
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED43M100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED43M100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the Siemens ED43M100 is a 3-pole, 100A molded case circuit breaker. As part of the Sentron ED4 frame series, it delivers robust thermal-magnetic trip protection for commercial facilities. The breaker bolts into Siemens Sentron panelboards, switchboards, and motor control centers. It serves as a high-temperature substitute for the standard 40°C ED43B100. It features a 50°C ambient calibration, 18kAIC at 480V, and reverse feed capability.Specifications
| Brand | Siemens |
|---|---|
| Series | ED4 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 50C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 50C Ambient Calibration |
Product FAQs
7 answersWhat is the difference between the Siemens ED43M100 and the ED43B100?
The ED43M100 is calibrated for a 50 degrees C ambient temperature, making it suitable for high-temperature industrial environments. The ED43B100 is the standard version calibrated for 40 degrees C. Both are 100A, 3-pole, ED4 frame breakers with identical physical dimensions and mounting.
What types of panels accept the ED43M100 circuit breaker?
This ED-frame breaker is designed for bolt-on installation in Siemens Sentron panelboards, switchboards, and motor control centers.

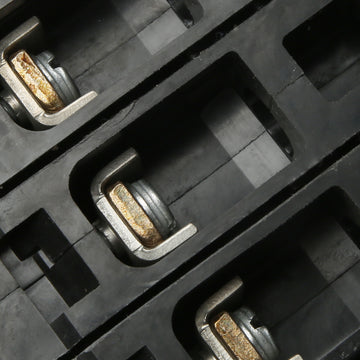

What wire sizes are supported by the lugs on the ED43M100?
The factory-installed load lugs accept 10 AWG to 1/0 AWG wire. The terminals are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Can the ED43M100 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with an interrupting capacity of 30kAIC. This is in addition to its standard AC ratings of 18kAIC at 480VAC and 65kAIC at 240VAC.
Is the Siemens ED43M100 suitable for reverse feed applications?
Yes, Siemens ED-frame circuit breakers, including the ED43M100, are capable of being reverse connected for applications that require backfeeding.
Does the ED43M100 provide adjustable trip settings?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field-adjustable dials.
Is the ED43M100 approved for HVAC applications?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
